In terms of the principle of motion, there are different types of twin-screw extruderswith isotropic and anisotropic meshing and non-meshing types. So what are the types of twin-screw extruders? And what are the application areas? The following is a detailed introduction.
Here is the content list:
l Isotropic twin-screw extruder
l Anisotropic twin-screw extruder
l Non-Engaging Twin-Screw Extruders
l SHJ-20 twin-screw laboratory extruder
l Application areas
These extruders are available at low and high speeds, the former mainly for profile extrusion, while the latter is used for special polymer processing operations.
(1) Close-meshing extruder. Low-speed extruders have a closely meshed screw geometry, where the profile of one screw is closely matched to the profile of the other screw, i.e., a conjugate screw profile.
(2) Self-cleaning extruder. High-speed co-rotating extruders have a closely matched screw-prong profile. This screw can be designed to have a fairly small screw gap so that the screw has a closed self-cleaning effect, this twin-screw extruder is called a tight self-cleaning co-rotating twin-screw extruder.
The tightly meshed anisotropic twin-screw extruder has a small gap between the two screw grooves (much smaller than that in a co-engaged twin-screw extruder) so that a positive conveying characteristic can be achieved.
The center distance between the two screws of a non-engaging twin-screw extruder is greater than the sum of the radii of the two screws.

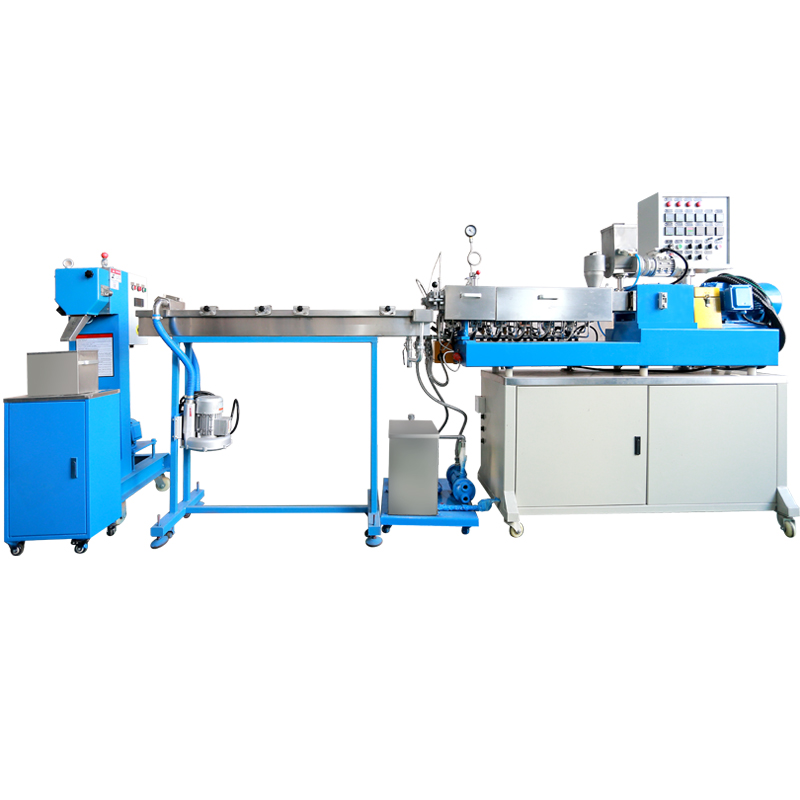

It is suitable for universities, colleges, and scientific research laboratories for process and formula development, etc. It has the features of beautiful appearance, compact structure, easy to use and maintain, and precise control of process conditions. Gearbox homemade torque level: T/A3≤8 national standard main parts, twin-screw extruder new structure design, and hardened gear teeth of high precision grinding, to ensure that the gearbox works efficiently for a long time. Screw self-made: Screw elements with tightly meshed design, block type, can be easily replaced to suit different materials. Barrel captive: The precision grade of the twin-screw extruder can reach T6, favorable to energy saving, and the block type design makes various combinations possible.
The two main areas of application of twin-screw extruders are extrusion of thermosensitive materials such as PVC pipes and profiles and processing of special polymers such as blending, venting, chemical reactions, etc. Twin-screw extruders for profile extrusion have intermeshing screw ribs and grooves and operate at a low speed of about 10/min or less. Compared to single screws, twin-screw extruders have much better feeding and conveying performance, especially for those difficult to feed and easy to slip, such as fibrous, powdery, and greasy materials. The short and uniform material retention time, better mixing, and larger heat transfer area allow for good material temperature control, which is especially important for processing heat-sensitive materials.
If you want to buy a twin-screw extruder, you can consider our cost-effective products.
Nanjing JlEYA is the leading manufacturer extruder manufacturer specializing in a twin-screw extruder, mini twin screw extruder, plastic extruder, and parallel twin-screw extruder in China, which is widely used in compounding, modification, polymerization, devolatilization, reaction, recycling, After 17 years of development, now we have 20,000 square meters workshop with annual sales over 300+ sets, export over 60 countries.
2022 CIM: Compounding Intelligent Manufacturing Conference is coming.
Nanjing Jieya team warmly welcome your visiting.
Booth no.: E10
Date: 2022.9.14-16
Address: Suzhou, China
See you~
underwater pelletizing machine is similar to airflow granulator and water jet granulator. The equipment part mainly covers: plastic granulator, single and twin screw plastic extruder, plastic film blowing machine, bag making machine, printing machine, coating machine, Adhesive tape machine, tape slitting machine, slitting machine, strapping machine.
What is the problem of uneven pelletizing by the underwater pelletizing machine?
What is the workflow of the underwater pelletizing machine?
What is the technological advantages of the underwater pelletizing machine?
1. underwater pelletizing machine, the machine head is not evenly heated, and the machine head temperature is stable before starting up;
2. The cooling water of the underwater pelletizing machine is boiled prematurely, and the water should be boiled when the machine head starts to discharge;
3. It is also possible that there is a problem with the hot runner design of the machine head, which is caused by uneven pressure.
Before being made into final products, most polymers must be blended and then pelletized to become marketable raw materials. The power required by the underwater pelletizing machine is directly proportional to the extrusion volume and exponentially related to the size of the filter screen. There are many different types of pelletizer designs, but all pelletizers have some common places, and they can be divided into two categories: cold pelletizing system and die face hot pelletizing system. The main difference between the two categories is the time arrangement of the pelletizing process. The cold pelletizing system cuts pellets from the solidified polymer at the end of the process; while in the die-face hot pelletizing system, pellets are cut when the molten polymer emerges from the die, and pellets are processed downstream cool down.
The underwater pelletizing machine treated by standard process has the following significant advantages:
The appearance standard of the products produced by the underwater pelletizing machine is exquisite and bright;
2. The hardness of the wear layer in contact with the material by the underwater pelletizing machine can reach HV 600-800, and the local hardness can reach HV900-1100. The hardness is increased to 2-4 times the original hardness. Compared with the non-standard machine without heat treatment, it is resistant to The wear performance is increased by 3-5 times;
3. The products of the underwater pelletizing machine are not deformed after long-term use, effectively avoiding the screw breaking due to the excessive wear of the barrel, and the stable service life is 2-3 times that of the traditional machine, which greatly reduces the investor's investment in replacement parts;
4. The wear-resistant layer of the barrel screw produced by the underwater pelletizing machine has high hardness, while the base material still retains good toughness and processing performance;
5. The service life of the screw of the underwater pelletizing machine has increased from the hundred-ton level of the ordinary plastic pelletizing machine to the thousand-ton level.
Nanjing JlEYA has focused on the production and development of underwater pelletizing machines for several years, and they have always put the needs of customers as their top priority. Here, you can choose the underwater pelletizing machine that suits your need.
The extrusion system of a single screw extruder includes a screw, a cylinder, a funnel, a head, and a nozzle. The plastic is plasticized by the extrusion system into a uniform melt and is continuous under the resulting pressure through the screw of the extruder head.
What is the relevant information about single screw extruders?
How to improve the product quality of the single screw extruder?
What role does the heating and cooling system play in the single screw extruder?
Each product type in the production line for single screw extruders has its operating characteristics. Only if you know their operating characteristics can you fully measure the efficiency of the machine.
Slug extruder's one of the guys. Record the operating points of single screw extruders and use single screw extruders correctly and sensibly.
The use of a single screw extruder includes several connections such as machine setup, adjustment, test run, operation, maintenance, and repair. Its use has the common characteristics of general machines, mainly in the drive engine and in the speed reduction device.
The working system of the single screw extruder, however, is the extrusion system, which has unique characteristics. When using the single screw extruder, pay particular attention to its properties.
1. About the extrusion product quality of the single screw extruder:
Injection extruders must conform to the raw material formula and process, the product size must correspond to the extrusion equipment and the raw materials must be sufficiently mixed and plasticized to ensure stable extrusion pressure and product quality.
2. Improve extrusion efficiency:
It is related to the selection of the single screw extruder, the screw structure, and the material properties, which are relative and must be considered comprehensively. Simple method, you can choose a larger extruder, the nozzle is opened into a nozzle and several forms.
The heating and cooling system of the inlet extruder consists of a heating device and a cooling device. It is a necessary condition for the smooth running of the extrusion process. The heater and cooling system shall ensure that the polymer material is melted and plasticized and that the temperature conditions during the molding process meet the process requirement.
The cooling system is generally installed in the cylinder, in the screw, and the bottom of the funnel of the inlet extruder. The cylinder cooling may be water-cooled or air-cooled. In general, small and medium extruder air cooling is used; Large series single screw extruders usually use water cooling or a combination of both. The main use of sludge cooling is a central water cooling system, the purpose of which is to increase the rate of solidification of the material, to stabilize the volume of discharges, and, at the same time, to improve product quality. The cooling system at the bottom of the funnel serves mainly to enhance the conveying effect of solids and to prevent the material particles from sticking due to the increase in temperature, blocking the material opening and impairing the supply. In general, in the case of extruders with screw diameters over 90 mm and fast-running screw extruders, a cooling device shall be installed at the bottom of the funnel.
Nanjing JlEYA has worked for many years to meet every customers’ need for single screw extruder. Just connect them.
PVC compounding extruder is made by mixing PVC resin with stabilizers, lubricants, and other additives through granulation and then extrusion, or by using powder in one extrusion. what are the application areas of PVC? The following are the details.
Here is the content list:
General soft products
PVC film
PVC foam products
PVC coated products
PVC paste resin
PVC transparent sheet
PVC rigid sheet
Other applications of PVC
General soft products can be extruded into cables, wires, and hoses by the extruder: shoe soles, slippers, various plastic sandals, as well as toys and auto parts by the injection molding machine with various molds.
PVC film After mixing and plasticizing PVC with additives, transparent or colored film of specified thickness can be made by using a three-roller or four-roller calendar, and calendered film can be processed by this method. It can also be cut and heat laminated to process raincoats, tablecloths, curtains, packaging bags, inflatable toys, etc. The wide transparent film can be used for greenhouse, plastic shed, and ground film; the film stretched in both directions can be used for shrink packaging due to its characteristics of shrinkage by heat.
Soft PVC can be used as sandals, insoles, foam slippers, and shockproof and cushioning packaging materials. In addition, it can also be extruded into low-foaming hard PVC sheets and profiles by extruder, which is a new type of building material and can be used as a substitute for wood.
Artificial leather with backing is made by coating PVC paste on cloth or paper and then plasticizing it at 100 degrees Celsius or above (or PVC and additives can be calendered into film and then pressed together with backing); while artificial leather without backing is directly calendered by calender into soft sheet with a certain thickness and then pressed with the pattern. It can be used to make leather bags, leather boxes, book covers, sofas, and car cushions, etc. It can also be made into flooring leather, which is used as the flooring material for buildings.
PVC emulsion or micro-suspension resin is dispersed in a liquid plasticizer to make it swell and plasticize into the plasticized sol, and then add stabilizer, filler, coloring agent, etc. After full stirring for de-bubbling, PVC paste is prepared, and then processed into various products such as coat hangers, tool handles, Christmas trees, etc. by casting, impregnating, or laminating processes.
Impact modifier and organotin stabilizer are added to PVC, which is mixed, plasticized, and calendered into transparent sheets. Then it can be made into thin-walled transparent containers by thermoforming and can be used for vacuum blister packaging such as moon cake boxes, etc. It is an excellent packaging material and decoration material.
PVC hard sheet and plate After adding stabilizer, lubricant, and filler to PVC and mixing, it can be extruded into various caliber hard pipes, shaped pipes, corrugated pipes, and other products by using an extruder, and used as a downpipe, drinking water pipe, electric wire casing or staircase handrail, etc.; the calendered sheet can be overlapped and hot-pressed to make various thicknesses of hard sheets, which can be cut into various desired shapes and can be welded into various chemical resistant tanks, ducts and containers by using PVC welding rod with hot air, etc.
PVC can be processed into rigid profiles using an extruder and used for window and door assembly. In some countries, the doors and windows assembled by PVC rigid profile have occupied the market of windows and doors together with wooden windows and doors, aluminum windows, etc.
If you want to buy PVC compounding extruder, you can consult our company, our company's website is https://www.njjyextrusion.com/
Nanjing JIEYA attend Chinaplas 2021 held in Shenzhen. We sincerely welcome your visiting.
Our booth no.: 7Q25
Time: April 13-16, 2021
Address: Shenzhen World Exhibition Center
Look forward to meet you at there.
![]() | ![]() |
The extrusion technology used by the single screw extruder is making waves in the food production industry. We know that single screw extruder can mass produce enterprise products of various shapes and textures. It allows a seamless and continuous operation process, which means that this means lower costs and higher production and sales.
What are the reasons and solutions for the poor discharge or blockage of the single screw extruder head?
What is the importance of single screw extruder temperature control?
What is the importance of single screw extruder speed control?
1. Reasons: (1) A certain section of the heater does not work, and the material is poorly plasticized. (2) The operating temperature is set too low, or the molecular weight distribution of the plastic is wide and unstable. (3) There may be foreign objects in the single screw extruder that are not easy to melt.
2. Treatment method: (1) Check the heater and replace it if necessary. (2) Verify the set temperature of each section, negotiate with the technician if necessary, and increase the temperature set value. (3) Clean and check the extrusion system and head of the single screw extruder.
Temperature control refers to the temperature of the single screw extruder during plastic extrusion, including the temperature control of the barrel, die and transition body. These temperature controls are related to the viscosity of the material, the sensitivity to temperature, and the aggregation state of the polymer. In general, the temperature of the die head and transition body of single screw extruder is low for medium and low viscosity materials, and the temperature of die head and transition body for high viscosity materials is high, and the fluidity is good.
Speed control means that for single screw extrude processing, if the screw speed increases, the shear rate increases. Thermoplastic melts are mostly non-Newtonian pseudoplastic fluids, and their viscosity decreases with the increase of shear rate, and fluidity Increasing the extrusion output also increases. However, if the shear rate is too large, the melt viscosity is too low, which will cause difficulties in the production and operation of single screw extrude. At the same time, the low-viscosity melt will flow backwards under the action of the screw back pressure, and the leakage flow will increase significantly, which will affect the output to a certain extent. , Again, the screw may even slip at high speeds, so the screw speed should be controlled within a certain range. In addition, in the production process of single screw extrude, the screw speed should be kept as stable as possible to avoid fast and slow. Otherwise, it will cause uneven discharge due to excessive changes in the melt viscosity of the material, which will affect normal production.
Nanjing JlEYA is a single screw extruder manufacturer established for more than five years. We work with customers from design to completion to ensure that all technical requirements are met.
