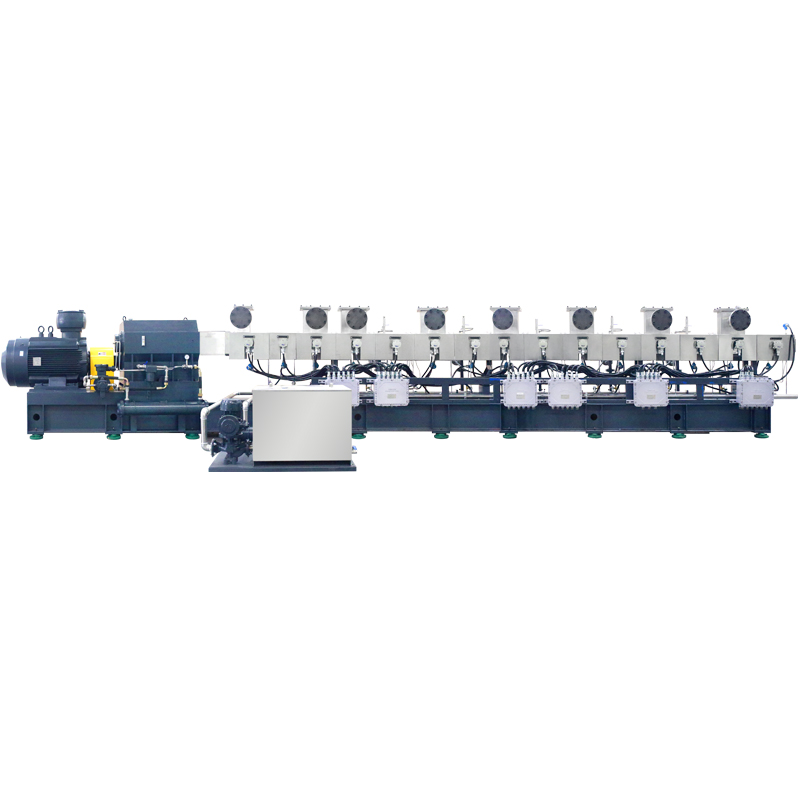

A twin screw extruder is composed of several parts such as a transmission device, feeding device, barrel, and screw, etc. The role of each part is similar to that of the single screw extruder. So what are the main differences between the twin screw extruder and single screw extruder? The following is the detailed introduction



Here is the content list:

l Cross sectional profile

l The way of material transfer

l The material flow velocity field



Cross sectional profile

The difference from the single screw extruder is that the twin screw extruder has two parallel screws in an "∞" shaped cross section. Twin screw extruders for profile extrusion are usually closely meshed and heterogeneously rotating, although a few also use co rotating twin screw extruders, which generally operate at relatively low screw speeds of about 10 r/min. High speed meshing co rotating twin screw extruders are used for blending, venting, or as continuous chemical reactors, with maximum screw speeds ranging from 300 600 r/min. Non engaging extruders are used for mixing, venting, and chemical reactions, and their conveyors are very different from those of engaging extruders, and are closer to those of single screw extruders, although they are fundamentally different.



The way of material transfer

In the single screw extruder, the solid conveying section is friction dragging and the melt conveying section is viscous dragging. The frictional properties of solid materials and the viscosity of molten materials determine the conveying behavior. If some materials have poor frictional properties, it is more difficult to transfer the material to the single screw extruder if the feeding problem is not solved. In twin screw extruders, especially meshing twin screw extruders, the material transfer is to some extent a positive displacement transfer, the degree of positive displacement depending on the proximity of the screw prongs of one screw to the relative screw grooves of the other screw. The screw geometry of a closely meshed anisotropic rotary extruder yields a high degree of positive displacement transport characteristics.



The material flow velocity field

The flow velocity distribution of the material in a single screw extruder has been described fairly well, whereas the flow velocity distribution of the material in a twin screw extruder is quite complex and difficult to describe. Many researchers have analyzed the velocity field of the material without considering the material flow in the engagement zone, but the results of these analyses are very different from the actual situation. This is because the mixing characteristics and overall behavior of a twin screw extruder depend mainly on the leakage flow that occurs in the engagement zone, yet the flow in the engagement zone is quite complex. The complex flow spectrum of the material in a twin screw extruder exhibits macroscopic advantages that cannot be matched by a single screw extruder, such as adequate mixing, good heat transfer, high melting capacity, good venting capacity, and good control of the material temperature.



If you want to know more, you can consult our company. Nanjing JlEYA is the leading manufacturer extruder manufacturer specializing in a twin screw extruder, mini twin screw extruder, plastic extruder, and parallel twin screw extruder in China, which is widely used in compounding, modification, polymerization, devolatilization, reaction, recycling, etc. After 17 years of development, now we have a 20,000 square meters workshop with annual sales of over 300+ sets, export over 60 countries.



JIEYA has the most experienced technical core team, with extensive experience in system integration of the development manufacturing, materials processing, application technology, and other fields.

The special refining effect and excellent performance of the single screw extruder have been proved in practice. Practice has proved that the reciprocating single-screw mixing extruder is a new type of plastic extrusion equipment. The emergence of single screw extruder provides a high-performance plastic processing equipment for the majority of users. Made a huge contribution to the development of the plastics industry.

• What is the function of the single screw extruder operation screen?

• What is the significance of the emergence of a single screw extruder?

• What are the application fields of single screw extruder?

What is the function of the single screw extruder operation screen?

The operating panel is installed above the single screw extruder and can be rotated within 60 degrees for easy operation. There is a power indicator and emergency stop button on the right side of the touch screen. In an emergency, press the emergency stop button to stop immediately, which is used to protect the safety of the operator and the single screw extruder. The data recording, parameter setting, operation control and other operations of the entire instrument are all completed in this operation screen.

What is the significance of the emergence of a single screw extruder?

In the process of polymer processing, in order to give the polymer certain processing characteristics or to give the product specific use performance, it is often necessary to blend different polymers or blend the polymer with various additives and pigments. The single-screw extruder has the characteristics of uniform shearing, high dispersion, high filling, and stretching of the melt. And it combines the advantages of single and twin screw extruders. The unique working principle, coupled with a complete set of threaded components and supporting equipment, makes it more widely used. On a single screw extruder, it can achieve mixing, Mixing, plasticizing, dispersing, shearing, stretching, degassing, and granulation make the interface area of the melt flow in the machine far larger than the general shear flow.

What are the application fields of single screw extruder?

The reciprocating single-screw mixing extruder is a new type of plastic mixing processing equipment, which is widely used in the filling, blending, modification, crosslinking, grafting, color masterbatch, functional masterbatch, and resistance of various plastics. Production of fuel masterbatch, conductive material, degradable masterbatch, reinforcement, toughening and other special plastic materials.

Blending different types of polymers to obtain brand new polymer alloys with specific uses.

Various mineral fillers are added to the polymer melt to make high-filling materials with excellent performance and low price.

Production of various glass fiber reinforced and flame retardant products, with the addition of glass fiber up to 50%.

It is suitable for the production of various cable sheathing materials, insulating materials, cross-linking materials, semiconductors, shielding materials, and conductive materials.

Production of thermoplastic elastomers and hot melt adhesives.

The single screw extruder is increasingly used in industrial production.Nanjing JlEYA has committed itself to offering the best-suited single screw extruders at a reasonable price, and all that is necessary to meet the needs of the customer.

Jieya team wish you have a nice holiday :)

(Nanjing Jieya is a professional manufacturer of twin screw compounding extruders with 20+ years experience and competitive price. We look forward to receive your inquiry.)

The underwater pelletizing machine is a smart machine with a touch screen, supports touch input, and is equipped with an Android system. The main engine of the underwater pelletizing machine is an extruder, which consists of an extrusion system, a transmission system and a heating and cooling system.

• What are the possible failures of the underwater pelletizing machine and their solutions?

• What are the advantages of the underwater pelletizing machine?

• What are the applicable materials for the underwater pelletizing machine?

What are the possible failures of the underwater pelletizing machine and their solutions?

Cause analysis: underwater pelletizing machine cutter wears excessively or the cutter blade is damaged, the particle water flow is too low, the pelletizer vibration is too large, the cutter and the template are not tightly attached, the material melt index fluctuates, and the discharge flow rate is inconsistent. Excessive water temperature and other reasons can cause the shutdown of the underwater pelletizing system and cause the interlocking shutdown of the entire unit.

Solution: After stopping the underwater pelletizing machine, visually check whether the cutting edge of the cutting knife is excessively worn or damaged. If so, replace the cutting knife completely. Check and confirm whether the granular water leaks internally, whether the filter and cooler of the granular water tank are blocked. If they are blocked, they should be cleaned manually; check whether the inlet and outlet pressures of the granular water pump are normal. If not, check the valves on the granular water pump and the pump pipeline. Check whether the alignment between the cutter shaft and the underwater pelletizing machine is out of tolerance, whether the bearing assembly of the cutter shaft is damaged, and whether the cutter rotor is out of balance. During operation, check whether there is any gap in the contact between the four moving wheels of the pelletizing trolley and the guide rail. Control the volatile matter in the polypropylene powder and eliminate the vibration of the cutter and cutter shaft when it flows through the template hole. Reduce the temperature of the hot oil at the template of the underwater pelletizing machine, check the temperature distribution of the cylinder and the template, and whether the flow, pressure and temperature of the cooling water of the cylinder are normal; confirm the time setting for the "water, knife, material" to reach the template to prevent particles The water reaches the template prematurely and freezes the template hole. After closing the head of the underwater pelletizing machine, the feed volume should be quickly increased to the set load of the extruder.

What are the advantages of the underwater pelletizing machine?

The underwater pelletizing machine is a new model for pelletizing plastic materials that are elastic, easy to foam at low temperature, difficult to form, and have poor flow properties. The underwater pelletizing machine breaks through the traditional method of stranding pelletizing in the past. It overcomes the shortcomings of instability, uneven particles, easy agglomeration, and low output during the granulation of elastomer raw materials.

What are the applicable materials for the underwater pelletizing machine?

The underwater pelletizing machine is suitable for EVA, TPU and other materials with high viscosity and high viscosity of elastomers, and also suitable for conventional materials such as PP, PE, ABS, PA, and PC.

The widespread use of underwater pelletizing machines has continuously increased the demand for them in the market. Nanjing JlEYA, as a Chinese pioneer in underwater pelletizing machine, can ensure the machines’ quality and after-sales service.

With the development of modern industry, the underwater pelletizing machine has become an important production equipment used in all aspects of production.

• What is the working principle of the underwater pelletizing machine?

• What is the operating procedure of the underwater pelletizing machine?

• What are the reasons why people choose underwater pelletizing machine?

What is the working principle of the underwater pelletizing machine?

The material using the underwater pelletizing machine will pass through the feeding port, and under the action of the rotating screw, it will be rolled into a dough and roll forward along the screw groove. Due to the shear, compression and agitation of the screw, the material will be further mixed and plasticized. , The temperature and pressure gradually increase, showing a state of viscous flow, and passing through the machine head with a certain pressure and temperature, and finally a product of the desired shape is obtained.

What is the operating procedure of the underwater pelletizing machine?

(1) Check the rotation direction of the impeller of the underwater pelletizing machine. From the feed inlet, the impeller should turn counterclockwise, otherwise the motor connection should be adjusted.

(2) The starting sequence of the underwater pelletizing machine and the material conveying equipment is as follows:

Discharge belt conveyor→PL vertical impact crusher→feeding belt conveyor

The crusher must be started without load, and the material can only be fed after the crusher is running normally.

(3) The feed size is strictly in accordance with the feed size specified by the various models. It is forbidden to enter the underwater pelletizing machine with the size of the material larger than the specified size, otherwise it will cause the impeller imbalance and excessive wear of the impeller, and even block the impeller flow path and The central feed pipe prevents the crusher from working normally. When a large piece of material is found, it should be removed in time.

(4) When the discharge belt conveyor stops running, the feeding should be stopped immediately, so the discharge belt conveyor should be interlocked with the feeding system to open and stop. Otherwise, the impeller will be crushed and the motor will be burnt.

(5) The feeding of the underwater pelletizing machine should be uniform and continuous.

(6) During the operation of the underwater pelletizing machine, there must be no violent vibration or abnormal noise, otherwise, it should be stopped immediately for inspection, and the machine can only be driven in order after the fault is removed.

(7) The observation door should be sealed tightly during the working process of the underwater pelletizing machine.

What are the reasons why people choose underwater pelletizing machine?

The difference between the underwater pelletizing machine and other similar products is that it has a steady stream of water flowing through the mold surface, and it is in direct contact with the mold surface. The size of the pelletizing chamber is just enough to allow the pelletizing knife to rotate freely across the die surface without restricting the temperature of the water flow. The molten polymer has been extruded from the die, and the rotating knife cuts the pellets. And then the pellets are taken out of the pelletizing chamber by the temperature-regulated water and enter the centrifugal dryer. In the dryer of the underwater pelletizing machine, the water will be drained back to the storage tank, cooled and recycled; the pellets pass through the centrifugal dryer to remove the water.

This is how we see the irreplaceable role of underwater pelletizing machine in our daily lives and industrial production. Nanjing JlEYA, the pioneer of underwater pelletizing machine producing company in China, knows that every application is special. You can go and get more information about them

The plastic extruder is a common plastic machinery equipment, in the process of the daily operation of the extruder, the extruder will have a variety of failures, affecting the normal production of plastic machinery, the following we will analyze the extruder failure.



Here is the content list:

• Unstable host current

• The main motor can not start

• The head is not discharged smoothly or blocked

• The main electric starting current is too high

• The main motor makes an abnormal sound



Unstable host current

1. Production reasons.

(1) Uneven feeding.

(2) The main motor bearing of the plastic extruder is damaged or poorly lubricated.

(3) A section of the heater is out of order and does not heat up.

(4) The screw adjustment pad is not correct, or the phase is not correct, and the component interferes.

2. Treatment methods.

(1) Check the feeder, troubleshooting.

(2) Overhaul the main motor of the plastic extruder, replace the bearings if necessary.

(3) Check whether each heater is working properly, replace the heater if necessary.

(4) Check the adjustment pad, pull out the screw to check whether there is interference with the screw.



The main motor can not start

1. Causes.

(1) There is a mistake in the start-up procedure of the plastic extruder.

(2) The main motor thread has a problem, whether the fuse is burned ring.

(3) The main motor-related chain device to function

2. Treatment methods.

(1) Check the program, reboot the machine in the correct boot sequence.

(2) Check the main motor circuit.

(3) Check whether the lube oil pump of the plastic extruder is started and check the status of the chain device associated with the main motor. The oil pump is not on and the motor cannot be turned on.

(4) The inverter induction power has not been discharged. Turn off the main power and wait for 5 minutes before starting again.

(5) Check whether the emergency button is reset.



The head is not discharged smoothly or blocked

1. Causes.

(1) A section of the heater does not work, and the material is not plasticized well.

(2) The operating temperature setting is low, or the molecular weight distribution of plastic is wide and unstable.

(3) There may be foreign substances that do not melt easily.

2. Treatment methods.

(1) Check the heater of the plastic extruder and replace it if necessary.

(2) Verify the set temperature of each section, and if necessary, consult with the technician to increase the temperature setting.

(3) Clean and check the extrusion system and the head.



The main electric starting current is too high

1. Causes.

(1) Insufficient heating time and high torque.

(2) A section of the heater does not work.

2. Treatment methods.

(1) Apply hand pan machine when starting, if not easy, extend the heating time or check whether each section heater is working properly.



The main motor makes an abnormal sound

1. Produced by.

(1) The main motor bearing of the plastic extruder is damaged.

(2) The main motor silicon controlled rectifier line in silicon controlled damage.

2. Treatment methods.

(1) Replace the main motor bearings.

(2) Check the silicon-controlled rectifier circuit, if necessary, replace the silicon-controlled components.



Our company's website is https://www.njjyextrusion.com/. If you still have questions, you can contact us on the official website.

The basic mechanism of the twin screw extrusion process is simply that a screw rotates in the barrel and pushes the plastic forward. The screw structure is a bevel or ramp wrapped around a central layer, the purpose of which is to increase the pressure to overcome the higher resistance. What do I need to pay attention to when using a twin screw extruder? The following is a detailed description.



Here is the content list:

l Structural principles

l Temperature principles

l Speed reduction principle



Structural principles

For the extruder, there are three kinds of resistance to overcome when working: one is friction, which contains the friction of the solid particles (feed) on the barrel wall and the mutual friction between them during the first few turns of the screw (feed area); the second is the adhesion of the melt on the barrel wall, and the third is the resistance of the internal logistics of the melt when it is pushed forward.

According to Newton's theorem, if an object is at rest in a certain direction, then the object is in a state of equilibrium balance of forces in this direction. For the circumferential movement of the screw, it is no axial motion, that is, the axial force on the screw is in equilibrium. So if the screw exerts a large forward thrust on the plastic melt, it also exerts a backward thrust on another object of the same magnitude but in the same direction. The thrust is exerted on the thrust bearing behind the feed opening. Most single screws have right hand threads, and if viewed from the back, they rotate backward, and they spin backward out of the barrel by rotational motion. In some twin screw extruders, however, the two screws rotate backward and cross each other in both barrels, so one must be right handed and one left handed, and in the case of an occluding twin screw, both screws rotate in the same direction and must therefore have the same orientation. However, in either case, there are thrust bearings that withstand backward forces and still comply with Newton's theorem.



Temperature Principle

Plastics extruded by twin screw extruders are thermoplastics, which melt when heated and solidify again when cooled. Thus, heat is needed during the extrusion process to ensure that the plastic can reach the melting temperature. So where does the heat to melt the plastic come from? First of all, the pound feed preheat and barrel/die heaters may play a role and are very important at startup. In addition, the motor feed energy, the frictional heat generated in the barrel as the motor overcomes the resistance of the viscous melt and turns the screw, is the most important heat source for all plastics, except for small systems, low speed screws, high melt temperature plastics, and extrusion coating applications. In operation, it is important to recognize that the barrel heater is not the primary heat source and that it may play a smaller role in extrusion than we might expect. The post barrel temperature is more important because it affects the rate of solids transport in the dentition or feed. In general, except for a specific purpose (such as varnishing, fluid distribution, or pressure control), the die head and die temperature should be at or near the temperature required for the melt.



Speed reduction principle

In most twin screw extruders, the screw speed is varied by adjusting the motor speed. The drive motor usually turns at a full speed of about 1750 rpm, which is too fast for an extruder screw. If it turns at such a fast speed, too much frictional heat is generated and a uniform, the well mixed melt cannot be prepared because the retention time of the plastic is too short. A typical speed reduction ratio should be between 10:1 and 20:1, with either a gear or pulley set for the first stage, but with a gear and a screw positioned in the center of the last large gear for the second stage. For some slow running machines (eg. twin screws for UPVC), there may be three reduction stages and the maximum speed may be as low as 30 rpm or less (ratio up to 60:1). On the other hand, some very long twin screws for mixing can run at 600 rpm or faster, thus requiring a very low reduction rate and more deep cooling. If the reduction rate is incorrectly matched to the job, too much energy will be wasted. It may be necessary to add a pulley set between the motor and the first deceleration stage where the maximum speed is changed, which either increases the screw speed even beyond the previous limit or reduces the maximum speed. This increases the available energy, reduces the current value, and avoids motor failure, in both cases, the output may increase due to the material and its cooling needs.



If you still have questions, you can consult our company. Nanjing JlEYA is the leading professional manufacturer of twin screw extruders in China.
