Engineering plastic extrusion equipment- Suppliers Manufacturers Factory From China

underwater pelletizing machine is similar to airflow granulator and water jet granulator. The equipment part mainly covers: plastic granulator, single and twin screw plastic extruder, plastic film blowing machine, bag making machine, printing machine, coating machine, Adhesive tape machine, tape slitting machine, slitting machine, strapping machine.

• What is the problem of uneven pelletizing by the underwater pelletizing machine?

• What is the workflow of the underwater pelletizing machine?

• What is the technological advantages of the underwater pelletizing machine?

What is the problem of uneven pelletizing by the underwater pelletizing machine?

1. underwater pelletizing machine, the machine head is not evenly heated, and the machine head temperature is stable before starting up;

2. The cooling water of the underwater pelletizing machine is boiled prematurely, and the water should be boiled when the machine head starts to discharge;

3. It is also possible that there is a problem with the hot runner design of the machine head, which is caused by uneven pressure.

What is the workflow of the underwater pelletizing machine?

Before being made into final products, most polymers must be blended and then pelletized to become marketable raw materials. The power required by the underwater pelletizing machine is directly proportional to the extrusion volume and exponentially related to the size of the filter screen. There are many different types of pelletizer designs, but all pelletizers have some common places, and they can be divided into two categories: cold pelletizing system and die face hot pelletizing system. The main difference between the two categories is the time arrangement of the pelletizing process. The cold pelletizing system cuts pellets from the solidified polymer at the end of the process; while in the die-face hot pelletizing system, pellets are cut when the molten polymer emerges from the die, and pellets are processed downstream cool down.

What are the technological advantages of the underwater pelletizing machine?

The underwater pelletizing machine treated by standard process has the following significant advantages:

1. The appearance standard of the products produced by the underwater pelletizing machine is exquisite and bright;




2. The hardness of the wear layer in contact with the material by the underwater pelletizing machine can reach HV 600-800, and the local hardness can reach HV900-1100. The hardness is increased to 2-4 times the original hardness. Compared with the non-standard machine without heat treatment, it is resistant to The wear performance is increased by 3-5 times;

3. The products of the underwater pelletizing machine are not deformed after long-term use, effectively avoiding the screw breaking due to the excessive wear of the barrel, and the stable service life is 2-3 times that of the traditional machine, which greatly reduces the investor's investment in replacement parts;

4. The wear-resistant layer of the barrel screw produced by the underwater pelletizing machine has high hardness, while the base material still retains good toughness and processing performance;

5. The service life of the screw of the underwater pelletizing machine has increased from the hundred-ton level of the ordinary plastic pelletizing machine to the thousand-ton level.

Nanjing JlEYA has focused on the production and development of underwater pelletizing machines for several years, and they have always put the needs of customers as their top priority. Here, you can choose the underwater pelletizing machine that suits your need.

The single screw extruder is mainly used for extruding soft and hard polyvinyl chloride, polyethylene, and other thermoplastic. It can be a variety of plastic products such as bubble sheets, extruded pipes, press plates, ribbons, etc. process and can also be used for melting granulation. The plastic extruder is characterized by advanced design, high quality, good plasticization, and low energy consumption. It uses an evolutionary drive and is characterized by low noise development, stable operation, great durability, and long service life.

• What are the relevant parameters of a single screw extruder?

• What are the properties of a single screw extruder?

• For which materials can a single screw extruder be used?

What are the relevant parameters of a single screw extruder?

The relevant parameters of the insertion extruder are arranged from left to right: the first field is the plastic machine code as S; the second box is the extruder code as J; the third field is the code for the different construction firms of the extruder. The three bars are combined, the plastic extruder is SJ; the ventilated plastic extruder is SJP; the plastic foam extruder is SJF; the extruder with plastic input is SJW; the plastic shoe extruder is SJE; The cascade plastic extruder is SJJ; the double-screw extruder is SJS; the conical double-screw extruder is SJSF; the multi-screw extruder is SJD. The fourth box is for auxiliary machinery with the code name F; in the case of an extruder unit with the code name E. The fifth parameter refers to the snail diameter and the ratio of length to snail diameter. The sixth field refers to the product's pattern sequences, which in the order of letters A, B, C... is arranged and the sample number is not given in the first sample.

What are the properties of a single screw extruder?

(1) The material support of the inlet extruder is mainly based on friction, which limits the conveyance performance of the inlet extruder. The addition of powder, paste, fiberglass, and inorganic fillers is difficult.

(2) If the head pressure of the inlet extruder is high, the counter current increases, which reduces the productivity of the inlet extruder.

(3) Injected exhaust gas extruder material has a low surface regeneration effect in the suction zone, so the suction effect of the inlet extruder is poor.

(4) Injection extruder is used for certain processes, such as polymer dyeing, heat-resistant powder processing, etc. not suitable. The single screw extruder is a high-speed and high-yield extrusion based on a high level.

For which materials can a single screw extruder be used?

single screw extruder series, single screw extruders can be used for the processing of PP, PE, PS, ABS, PMMA, PVC, and other thermoplastic tubes, plates, plates, rods, profile materials, and plastic granulation products. For different raw materials and product specifications, the screw assumes different length-diameter ratios and compression ratios, and the flow assumes different structures. Choose the right cylinder, screw, and drive mechanism to meet the processing requirements of high-quality products.

The use of single screw extruders is becoming increasingly widespread. Nanjing JlEYA has been concentrating on single screw extruders for several years. They will make every effort to meet the needs of users.

The underwater pelletizing machine is a smart machine with a touch screen, supports touch input, and is equipped with an Android system. The main engine of the underwater pelletizing machine is an extruder, which consists of an extrusion system, a transmission system and a heating and cooling system.

• What are the possible failures of the underwater pelletizing machine and their solutions?

• What are the advantages of the underwater pelletizing machine?

• What are the applicable materials for the underwater pelletizing machine?

What are the possible failures of the underwater pelletizing machine and their solutions?

Cause analysis: underwater pelletizing machine cutter wears excessively or the cutter blade is damaged, the particle water flow is too low, the pelletizer vibration is too large, the cutter and the template are not tightly attached, the material melt index fluctuates, and the discharge flow rate is inconsistent. Excessive water temperature and other reasons can cause the shutdown of the underwater pelletizing system and cause the interlocking shutdown of the entire unit.

Solution: After stopping the underwater pelletizing machine, visually check whether the cutting edge of the cutting knife is excessively worn or damaged. If so, replace the cutting knife completely. Check and confirm whether the granular water leaks internally, whether the filter and cooler of the granular water tank are blocked. If they are blocked, they should be cleaned manually; check whether the inlet and outlet pressures of the granular water pump are normal. If not, check the valves on the granular water pump and the pump pipeline. Check whether the alignment between the cutter shaft and the underwater pelletizing machine is out of tolerance, whether the bearing assembly of the cutter shaft is damaged, and whether the cutter rotor is out of balance. During operation, check whether there is any gap in the contact between the four moving wheels of the pelletizing trolley and the guide rail. Control the volatile matter in the polypropylene powder and eliminate the vibration of the cutter and cutter shaft when it flows through the template hole. Reduce the temperature of the hot oil at the template of the underwater pelletizing machine, check the temperature distribution of the cylinder and the template, and whether the flow, pressure and temperature of the cooling water of the cylinder are normal; confirm the time setting for the "water, knife, material" to reach the template to prevent particles The water reaches the template prematurely and freezes the template hole. After closing the head of the underwater pelletizing machine, the feed volume should be quickly increased to the set load of the extruder.

What are the advantages of the underwater pelletizing machine?

The underwater pelletizing machine is a new model for pelletizing plastic materials that are elastic, easy to foam at low temperature, difficult to form, and have poor flow properties. The underwater pelletizing machine breaks through the traditional method of stranding pelletizing in the past. It overcomes the shortcomings of instability, uneven particles, easy agglomeration, and low output during the granulation of elastomer raw materials.

What are the applicable materials for the underwater pelletizing machine?

The underwater pelletizing machine is suitable for EVA, TPU and other materials with high viscosity and high viscosity of elastomers, and also suitable for conventional materials such as PP, PE, ABS, PA, and PC.

The widespread use of underwater pelletizing machines has continuously increased the demand for them in the market. Nanjing JlEYA, as a Chinese pioneer in underwater pelletizing machine, can ensure the machines’ quality and after-sales service.

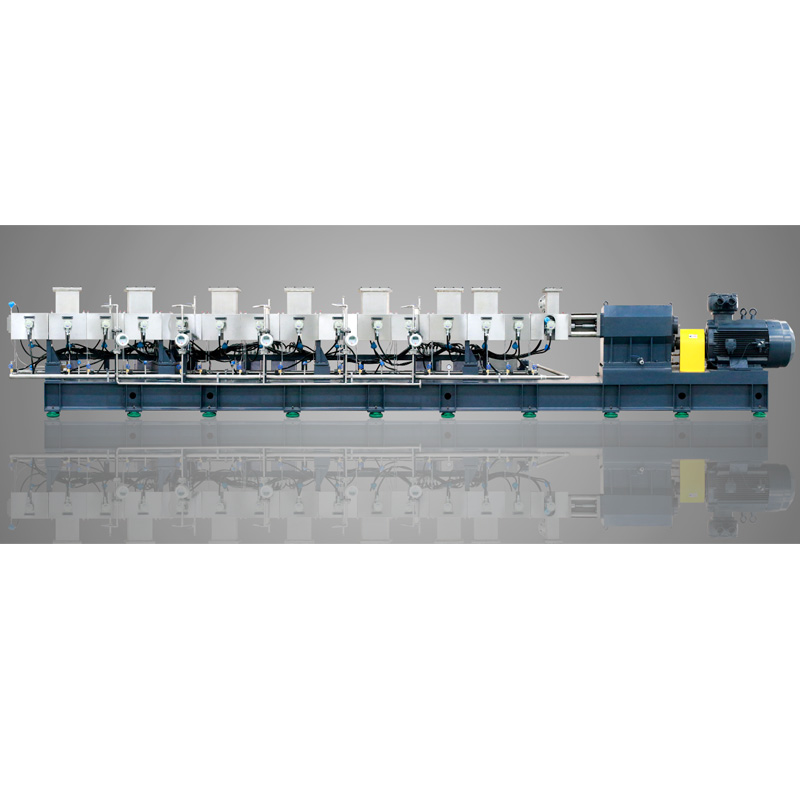

The engineering plastic twin screw extruder consists of a transmission device, a feed device, a barrel, and a screw. The function of each component is similar to that of a single-screw extruder. The difference to the single screw extruder is that in the engineering plastic twin screw extruder two parallel snails are arranged in the "cross-section" of the material.

• What is the working principle of the engineering plastic twin screw extruder?

• How do you treat a engineering plastic twin screw extruder?

• Why is the cooling device particularly important when using engineering plastic twin screw extruders?

What is the working principle of the engineering plastic twin screw extruder?

From the point of view of the principle of movement, the engineering plastic twin screw extruder distinguishes between the straight and uneven, and non-foaming types.

1. Double screw extruder of technical plastic

This type of engineering plastic twin screw extruder has a low speed and a high speed. The former is mainly used for profile extraction, while the latter is used for special polymer processing operations.

(1) Tightly machined extruder. The slow-running extruder has a closely combining screw geometry, in which the spiral antenna shape of one snail closely matches the spiral antenna shape of the other snail, i.e. the conjugated snail shape.

(2) Self-cleaning extruder. The simultaneous high-speed extruder has a closely tuned spiral shape. This type of snail can be executed with a relatively small snail split so that the snail has a closed self-cleaning effect. This type of engineering plastic twin screw extruder is called a compact self-cleaning engineering plastic twin screw extruder.

The gap between the two screw edges of the closely combining, opposing engineering plastic twin screw extruder is very small (much smaller than the gap in the evenly rotating engineering plastic twin screw extruder) so those positive conveying properties can be achieved.

2. Non-reciprocating double screw extruder of technical plastic

The axis distance between the two snails of the non-foaming engineering plastic twin screw extruder is greater than the sum of the radii of the two snails.

How do you treat a engineering plastic twin screw extruder?

1. After using the engineering plastic twin screw extruder for 500 hours, iron chips or other impurities from the gears are in the gearbox. Therefore, the gears should be cleaned and the gear lubricant replaced.

2. The engineering plastic twin screw extruder should carry out a comprehensive inspection of the extruder after an operating period to check the density of all snails.

3. If the double screw extruder is suddenly switched off during production, the main drive, and the heating stops, if the power supply is restored, each section of the cylinder shall be reheated to the specified temperature and kept for a specified period, before you can start the extruder.

4. If the display and the display of the engineering plastic twin screw extruder are full, check if the contact of the thermocouple, etc. is good.

Why is the cooling device particularly important when using engineering plastic twin screw extruders?

After the molded plastic extrusion layer has left the engineering plastic twin screw extruder, it should be cooled and formed immediately, otherwise, it will deform under the influence of gravity. The cooling method normally uses water cooling and is divided into quick cooling and slow cooling according to the different water temperatures. Fast cooling is the direct cooling by cold water. Rapid cooling is advantageous for the design of the extruded plastic layer, but in the case of crystalline polymers, due to sudden heat cooling, it is easy to leave internal stresses in the extruded layer structure, which leads to cracks during use. Generally PVC The plastic layer is deterred. Slow cooling should reduce the inner tension of the product. Water with different temperatures is given in the cooling water tank to gradually reduce the temperature and shape of the product. The extrusion of PE and PP takes place under slow cooling, i.e. through hot water, hot water, and cold water, which is called three-stage cooling.

Nanjing JlEYA is the leading manufacturer extruder manufacturer specializing in twin screw extrude. If you want to get more information, just go and connect them.

The engineering plastic twin screw extruder was developed based on a single screw extruder. Due to its good feed performance, mixing and plasticization performance, suction performance, and extrusion stability, it is often used in extruded products.

• What are the advantages of engineering plastic twin screw extruders?

• What role do pre-heaters play in the use of engineering plastic twin screw extruders?

• What is the reason for the "fault" of the exhaust air opening of the engineering plastic twin screw extruder?

What are the advantages of engineering plastic twin screw extruders?

1. wear

By simply opening the engineering plastic twin screw extruder, the wear level of the threaded parts and the inner sockets of the cylinder can be determined at any time, so that we need to carry out effective maintenance or exchange. It is not detected if there is a problem with the extruded product causing unnecessary waste.

2. Reduce production costs

When a engineering plastic twin screw extruder is made of technical plastic Masterbatch, it is often necessary to change the color. It is necessary to change the product.

Simply open the open editing area within a few minutes. In addition, the mixing process can be performed by observing the melting profile on the entire screw. analysis. When changing the color of an ordinary engineering plastic twin screw extruder, a large amount of cleaning material is needed to clean the machine, which is time and energy consuming and wastes raw materials. The split engineering plastic twin screw extruder can solve this problem. When changing color, it takes only a few minutes to quickly open the barrel for manual cleaning, so that no or fewer cleaning agents can be used, which saves costs.

What role do pre-heaters play in the use of engineering plastic twin screw extruders?

A pre-heating of the cable core is required for the use of an engineering plastic twin screw extruder. The presence of pores shall not be permitted for the insulating layer, in particular the thin insulating layer. The wire core can be completely removed from the water and oil surface by high-temperature preheating before crushing. In the case of coat extrusion, its main function is to dry the cable core to prevent the possibility of pores in the coat due to moisture (or moisture around the cushion layer). By preheating, the residual pressure of the plastic can also be prevented by discouragement during extrusion. During the plastic extrusion of the processor, preheating can eliminate the large temperature difference that occurs when the cold wire enters the high-temperature nozzle and the nozzle is in contact with the plastic, thereby avoiding the fluctuation of the plastic temperature and causing the fluctuation of the extrusion pressure. This stabilizes the extrusion volume and ensures the extrusion quality. The technical plastic engineering plastic twin screw extruder uses an electric radiator preheating device that requires sufficient capacity and guarantees rapid heating so that the core preheating and drying efficiency of the cable core is high. The pre-heat temperature is limited by the deflection speed and generally corresponds to the temperature of the machine part.

What is the reason for the "fault" of the exhaust air opening of the engineering plastic twin screw extruder?

The temperature of the machine part is low and the pressure of the machine part is too high.

engineering plastic twin screw extruder The engineering plastic twin screw extruder used for profile extrusion is usually narrow-meshed and rotates in different directions, but a few also use simultaneous engineering plastic twin screw extruders, which usually work with relatively low screw speed. About ten U/min.

The rapidly combining, simultaneous engineering plastic twin screw extruder is used for composting, venting or as a continuous chemical reactor. The maximum snail speed of this extruder type is 300-600 U/min. The non-interactive extruder is used for mixing, venting, and chemical reaction. Its conveyor mechanism is very different from the interlocking extruder, which is closer to the conveyor mechanism of a single screw extruder.

These are related practices for using engineering plastic twin screw extruders. If you want to get more information about the engineering plastic twin screw extruders, please connect Nanjing JlEYA, and they will tell you more about it.

The special refining effect and excellent performance of the single screw extruder have been proved in practice. Practice has proved that the reciprocating single-screw mixing extruder is a new type of plastic extrusion equipment. The emergence of single screw extruder provides a high-performance plastic processing equipment for the majority of users. Made a huge contribution to the development of the plastics industry.

• What is the function of the single screw extruder operation screen?

• What is the significance of the emergence of a single screw extruder?

• What are the application fields of single screw extruder?

What is the function of the single screw extruder operation screen?

The operating panel is installed above the single screw extruder and can be rotated within 60 degrees for easy operation. There is a power indicator and emergency stop button on the right side of the touch screen. In an emergency, press the emergency stop button to stop immediately, which is used to protect the safety of the operator and the single screw extruder. The data recording, parameter setting, operation control and other operations of the entire instrument are all completed in this operation screen.

What is the significance of the emergence of a single screw extruder?

In the process of polymer processing, in order to give the polymer certain processing characteristics or to give the product specific use performance, it is often necessary to blend different polymers or blend the polymer with various additives and pigments. The single-screw extruder has the characteristics of uniform shearing, high dispersion, high filling, and stretching of the melt. And it combines the advantages of single and twin screw extruders. The unique working principle, coupled with a complete set of threaded components and supporting equipment, makes it more widely used. On a single screw extruder, it can achieve mixing, Mixing, plasticizing, dispersing, shearing, stretching, degassing, and granulation make the interface area of the melt flow in the machine far larger than the general shear flow.

What are the application fields of single screw extruder?

The reciprocating single-screw mixing extruder is a new type of plastic mixing processing equipment, which is widely used in the filling, blending, modification, crosslinking, grafting, color masterbatch, functional masterbatch, and resistance of various plastics. Production of fuel masterbatch, conductive material, degradable masterbatch, reinforcement, toughening and other special plastic materials.

Blending different types of polymers to obtain brand new polymer alloys with specific uses.

Various mineral fillers are added to the polymer melt to make high-filling materials with excellent performance and low price.

Production of various glass fiber reinforced and flame retardant products, with the addition of glass fiber up to 50%.

It is suitable for the production of various cable sheathing materials, insulating materials, cross-linking materials, semiconductors, shielding materials, and conductive materials.

Production of thermoplastic elastomers and hot melt adhesives.

The single screw extruder is increasingly used in industrial production.Nanjing JlEYA has committed itself to offering the best-suited single screw extruders at a reasonable price, and all that is necessary to meet the needs of the customer.

The structure of the engineering plastic twin screw extruder barrel is basically similar to that of the single-screw extruder screw barrel. From the appearance structure, the twin-screw extruder barrel is also divided into an integral barrel and a segmented barrel. The engineering plastic twin screw extruder is an upgrade of the single screw extruder, which has also greatly improved the efficiency of use.

• What are the reasons why people choose engineering plastic twin screw extruder?

• What is the workflow of engineering plastic twin screw extruder?

• What are the essential devices in the engineering plastic twin screw extruder?

What are the reasons why people choose engineering plastic twin screw extruder?

1. Improve labor efficiency

When the equipment is repaired, engineering plastic twin screw extruder only needs to loosen a few bolts, turn the worm gear box handle device to lift the upper part of the barrel to open the entire barrel, and then perform repairs. This not only shortens the maintenance time, but also reduces the labor intensity.

2. High torque and high speed

The development trend of engineering plastic twin screw extruder in the world is towards high torque, high speed, and low energy consumption. The effect of high speed is high productivity. engineering plastic twin screw extruder belongs to this category, and its speed can reach 500 rpm. Therefore, it has unique advantages in processing high-viscosity, heat-sensitive materials.

3. Wide range of applications

engineering plastic twin screw extruder has a wide range of applications and can be applied to the processing of a variety of materials

4. High output, high quality

engineering plastic twin screw extruder has other advantages of ordinary extruder, and can achieve high output, high quality and high efficiency.

What is the workflow of engineering plastic twin screw extruder?

The engineering plastic twin screw extruder used for profile extrusion is usually tightly meshed and rotated in different directions, although a few also use co-rotating twin screw extruders, generally operating at a relatively low screw speed, about 10 r/ min. The high-speed meshing co-rotating engineering plastic twin screw extruder is used for compounding, venting or as a continuous chemical reactor. The maximum screw speed of this type of extruder is 300-600r/min. Non-intermeshing extruder is used for mixing, venting and chemical reaction. Its conveying mechanism is quite different from intermeshing extruder, which is closer to the conveying mechanism of single screw extruder, although there are essential differences between the two.

What are the essential devices in the engineering plastic twin screw extruder?

Among the straightening devices used in engineering plastic twin screw extruder, the most common one is eccentric, and various types of bending of the core are one of the important reasons for the insulation eccentricity. In sheath extrusion, scratches on the sheath surface are often caused by the bending of the cable core. Therefore, the straightening device in various engineering plastic twin screw extruder is indispensable. The main types of straightening devices are: drum type (divided into horizontal and vertical); pulley type (divided into single pulley and pulley block); winch type, which has multiple functions such as dragging, straightening, and tension stabilization; Press wheel type (divided into horizontal type and vertical type), etc.

The engineering plastic twin screw extruders are used more and more widely in daily life, but its quality has a great influence on the experience of use. Nanjing JlEYA has focused on the production and development of engineering plastic twin screw extruders for more than several years, and they have always put the needs of customers as their top priority.

The extrusion technology used by the single screw extruder is making waves in the food production industry. We know that single screw extruder can mass produce enterprise products of various shapes and textures. It allows a seamless and continuous operation process, which means that this means lower costs and higher production and sales.

• What are the reasons and solutions for the poor discharge or blockage of the single screw extruder head?

• What is the importance of single screw extruder temperature control?

• What is the importance of single screw extruder speed control?

What are the reasons and solutions for the poor discharge or blockage of the single screw extruder head?

1. Reasons: (1) A certain section of the heater does not work, and the material is poorly plasticized. (2) The operating temperature is set too low, or the molecular weight distribution of the plastic is wide and unstable. (3) There may be foreign objects in the single screw extruder that are not easy to melt.

2. Treatment method: (1) Check the heater and replace it if necessary. (2) Verify the set temperature of each section, negotiate with the technician if necessary, and increase the temperature set value. (3) Clean and check the extrusion system and head of the single screw extruder.

What is the importance of single screw extruder temperature control?

Temperature control refers to the temperature of the single screw extruder during plastic extrusion, including the temperature control of the barrel, die and transition body. These temperature controls are related to the viscosity of the material, the sensitivity to temperature, and the aggregation state of the polymer. In general, the temperature of the die head and transition body of single screw extruder is low for medium and low viscosity materials, and the temperature of die head and transition body for high viscosity materials is high, and the fluidity is good.

What is the importance of single screw extruder speed control?

Speed control means that for single screw extrude processing, if the screw speed increases, the shear rate increases. Thermoplastic melts are mostly non-Newtonian pseudoplastic fluids, and their viscosity decreases with the increase of shear rate, and fluidity Increasing the extrusion output also increases. However, if the shear rate is too large, the melt viscosity is too low, which will cause difficulties in the production and operation of single screw extrude. At the same time, the low-viscosity melt will flow backwards under the action of the screw back pressure, and the leakage flow will increase significantly, which will affect the output to a certain extent. , Again, the screw may even slip at high speeds, so the screw speed should be controlled within a certain range. In addition, in the production process of single screw extrude, the screw speed should be kept as stable as possible to avoid fast and slow. Otherwise, it will cause uneven discharge due to excessive changes in the melt viscosity of the material, which will affect normal production.

Nanjing JlEYA is a single screw extruder manufacturer established for more than five years. We work with customers from design to completion to ensure that all technical requirements are met.
