High quality PVC double screw extruder- China Factory Suppliers Manufacturers

PVC compounding extruder is made by mixing PVC resin with stabilizers, lubricants, and other additives through granulation and then extrusion, or by using powder in one extrusion. what are the application areas of PVC? The following are the details.



Here is the content list:

• General soft products

• PVC film

• PVC foam products

• PVC coated products

• PVC paste resin

• PVC transparent sheet

• PVC rigid sheet

• Other applications of PVC



General soft products

General soft products can be extruded into cables, wires, and hoses by the extruder: shoe soles, slippers, various plastic sandals, as well as toys and auto parts by the injection molding machine with various molds.



PVC film

PVC film After mixing and plasticizing PVC with additives, transparent or colored film of specified thickness can be made by using a three-roller or four-roller calendar, and calendered film can be processed by this method. It can also be cut and heat laminated to process raincoats, tablecloths, curtains, packaging bags, inflatable toys, etc. The wide transparent film can be used for greenhouse, plastic shed, and ground film; the film stretched in both directions can be used for shrink packaging due to its characteristics of shrinkage by heat.



PVC foam products

Soft PVC can be used as sandals, insoles, foam slippers, and shockproof and cushioning packaging materials. In addition, it can also be extruded into low-foaming hard PVC sheets and profiles by extruder, which is a new type of building material and can be used as a substitute for wood.



PVC coated products

Artificial leather with backing is made by coating PVC paste on cloth or paper and then plasticizing it at 100 degrees Celsius or above (or PVC and additives can be calendered into film and then pressed together with backing); while artificial leather without backing is directly calendered by calender into soft sheet with a certain thickness and then pressed with the pattern. It can be used to make leather bags, leather boxes, book covers, sofas, and car cushions, etc. It can also be made into flooring leather, which is used as the flooring material for buildings.



PVC paste resin

PVC emulsion or micro-suspension resin is dispersed in a liquid plasticizer to make it swell and plasticize into the plasticized sol, and then add stabilizer, filler, coloring agent, etc. After full stirring for de-bubbling, PVC paste is prepared, and then processed into various products such as coat hangers, tool handles, Christmas trees, etc. by casting, impregnating, or laminating processes.



PVC transparent sheet

Impact modifier and organotin stabilizer are added to PVC, which is mixed, plasticized, and calendered into transparent sheets. Then it can be made into thin-walled transparent containers by thermoforming and can be used for vacuum blister packaging such as moon cake boxes, etc. It is an excellent packaging material and decoration material.



PVC rigid sheet

PVC hard sheet and plate After adding stabilizer, lubricant, and filler to PVC and mixing, it can be extruded into various caliber hard pipes, shaped pipes, corrugated pipes, and other products by using an extruder, and used as a downpipe, drinking water pipe, electric wire casing or staircase handrail, etc.; the calendered sheet can be overlapped and hot-pressed to make various thicknesses of hard sheets, which can be cut into various desired shapes and can be welded into various chemical resistant tanks, ducts and containers by using PVC welding rod with hot air, etc.



Other applications of PVC

PVC can be processed into rigid profiles using an extruder and used for window and door assembly. In some countries, the doors and windows assembled by PVC rigid profile have occupied the market of windows and doors together with wooden windows and doors, aluminum windows, etc.



If you want to buy PVC compounding extruder, you can consult our company, our company's website is https://www.njjyextrusion.com/

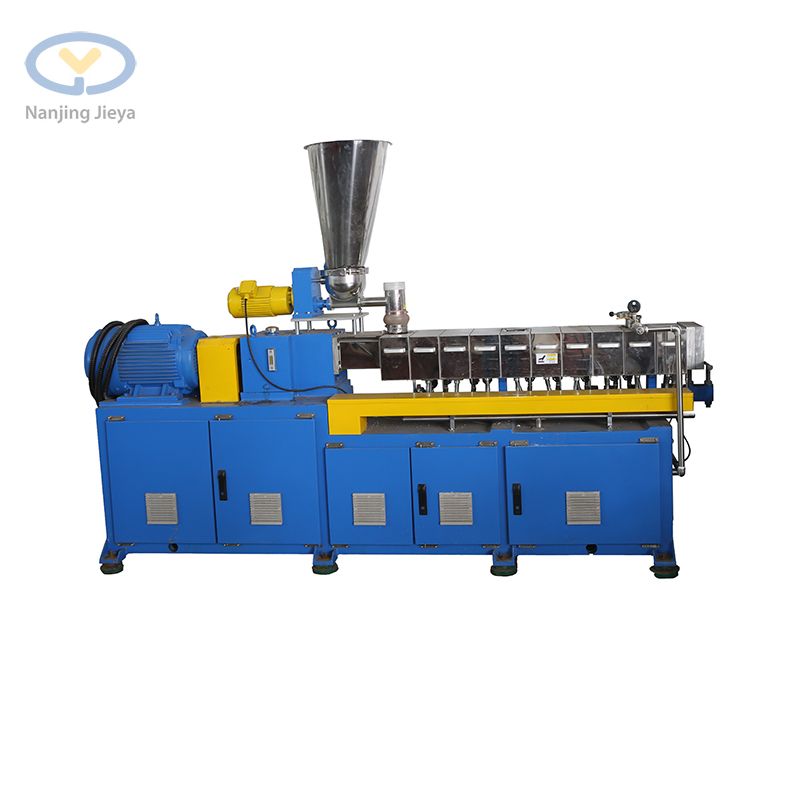

DRIVE SECTION
The drive section of the twin screw extruder consists of 3 parts: motor, clutch, and gearbox.
The reduction and distribution gear unit reduces the motor speed to the screw shaft speed and distributes the input torque to the two output shafts. Clutch is installed between the drive motor and the gearbox drive shaft.
PROCESSING SECTION
The processing section of the twin screw extruder in SHJ series extruder consists of individual barrel sections which are replaceable. Depending on the process tasks, reserve feed port, liquid injection port or twin screw side feed port is available.
Owing to the modular design of the twin screw extruder screw elements and screw barrels, conveying, plasticizing, homogenizing, pressure build-up and devolatilization zones can be established, depending on the process task.
For product intake and conveying, screw elements are used. The extruder can be fed with powder, pellets, chips, melt, paste, etc.
Plasticizing, mixing and dispersing are done by the twin screw extruder kneading elements. By varying the thickness of the kneading disks and their angle of stagger, their mixing, shearing and dispersing action can be adjusted to the individual requirements.
The screw elements are arranged on screw shafts. The co-rotating and closely intermeshing screw shafts have a sealing profile.
The screw barrels are supported by barrel supports. Axial displacement of the processing section resulting from thermal dilatation is absorbed by these supports.
EXTRUSION PART
The discharge section of the twin screw extruder consists of die head and screen changer, which is installed at the end of twin screw extruder discharging direction. There are several types of die heads and screen changers to meet the requirements of different polymers and processing technology.

The basic mechanism of the twin screw extrusion process is simply that a screw rotates in the barrel and pushes the plastic forward. The screw structure is a bevel or ramp wrapped around a central layer, the purpose of which is to increase the pressure to overcome the higher resistance. What do I need to pay attention to when using a twin screw extruder? The following is a detailed description.



Here is the content list:

l Structural principles

l Temperature principles

l Speed reduction principle



Structural principles

For the extruder, there are three kinds of resistance to overcome when working: one is friction, which contains the friction of the solid particles (feed) on the barrel wall and the mutual friction between them during the first few turns of the screw (feed area); the second is the adhesion of the melt on the barrel wall, and the third is the resistance of the internal logistics of the melt when it is pushed forward.

According to Newton's theorem, if an object is at rest in a certain direction, then the object is in a state of equilibrium balance of forces in this direction. For the circumferential movement of the screw, it is no axial motion, that is, the axial force on the screw is in equilibrium. So if the screw exerts a large forward thrust on the plastic melt, it also exerts a backward thrust on another object of the same magnitude but in the same direction. The thrust is exerted on the thrust bearing behind the feed opening. Most single screws have right hand threads, and if viewed from the back, they rotate backward, and they spin backward out of the barrel by rotational motion. In some twin screw extruders, however, the two screws rotate backward and cross each other in both barrels, so one must be right handed and one left handed, and in the case of an occluding twin screw, both screws rotate in the same direction and must therefore have the same orientation. However, in either case, there are thrust bearings that withstand backward forces and still comply with Newton's theorem.



Temperature Principle

Plastics extruded by twin screw extruders are thermoplastics, which melt when heated and solidify again when cooled. Thus, heat is needed during the extrusion process to ensure that the plastic can reach the melting temperature. So where does the heat to melt the plastic come from? First of all, the pound feed preheat and barrel/die heaters may play a role and are very important at startup. In addition, the motor feed energy, the frictional heat generated in the barrel as the motor overcomes the resistance of the viscous melt and turns the screw, is the most important heat source for all plastics, except for small systems, low speed screws, high melt temperature plastics, and extrusion coating applications. In operation, it is important to recognize that the barrel heater is not the primary heat source and that it may play a smaller role in extrusion than we might expect. The post barrel temperature is more important because it affects the rate of solids transport in the dentition or feed. In general, except for a specific purpose (such as varnishing, fluid distribution, or pressure control), the die head and die temperature should be at or near the temperature required for the melt.



Speed reduction principle

In most twin screw extruders, the screw speed is varied by adjusting the motor speed. The drive motor usually turns at a full speed of about 1750 rpm, which is too fast for an extruder screw. If it turns at such a fast speed, too much frictional heat is generated and a uniform, the well mixed melt cannot be prepared because the retention time of the plastic is too short. A typical speed reduction ratio should be between 10:1 and 20:1, with either a gear or pulley set for the first stage, but with a gear and a screw positioned in the center of the last large gear for the second stage. For some slow running machines (eg. twin screws for UPVC), there may be three reduction stages and the maximum speed may be as low as 30 rpm or less (ratio up to 60:1). On the other hand, some very long twin screws for mixing can run at 600 rpm or faster, thus requiring a very low reduction rate and more deep cooling. If the reduction rate is incorrectly matched to the job, too much energy will be wasted. It may be necessary to add a pulley set between the motor and the first deceleration stage where the maximum speed is changed, which either increases the screw speed even beyond the previous limit or reduces the maximum speed. This increases the available energy, reduces the current value, and avoids motor failure, in both cases, the output may increase due to the material and its cooling needs.



If you still have questions, you can consult our company. Nanjing JlEYA is the leading professional manufacturer of twin screw extruders in China.

The Underwater pelletizing machine cuts pellets on the plastic steel ejection surface without centrifugal action to eject them, but direct water pressure flows through the nozzle surface to drain.

• What is contained in the extrusion system of the Underwater pelletizing machine?

• What is the use of the Underwater pelletizing machine?

• What are the causes and solutions for the high melting of the Underwater pelletizing machine?

What is contained in the extrusion system of the Underwater pelletizing machine?

The extrusion system includes a snail, a cylinder, a funnel, a nozzle, and a nozzle. Through the extrusion system, the plastic is plasticized into a uniform melt and continuously extruded by the screw under the resulting pressure.

(1) Screw: It is the most important part of the Underwater pelletizing machine. It is directly related to the scope and productivity of the extruder. It consists of high-strength corrosion-resistant alloy steel.

(2) Cylinders: The cylinder is a metal cylinder that is generally made of alloy steel or composite steel tubes clad with alloy steel, heat resistant, high-pressure resistant, strong, wear-resistant, and corrosion-resistant. The cylinder and the screw are matched to each other to realize the crushing, grinding, melting, plasticization, suction, and compaction of the plastic as well as the continuous and uniform supply of the rubber material to the molding system. In general, the barrel length of an Underwater pelletizing machine is 15-30-fold its diameter, so that the plastic is completely heated and plasticized.

What is the use of the Underwater pelletizing machine?

Underwater pelletizing machines can be used for chemical fertilizers, white soot, inorganic salts, chlorinated isocyanic acid, bleaching powder, pesticides, oxides, etc. as well as for industrial recycling dust: such as cast iron dust, lead, zinc, aluminum dust, converter dust, filter dust, grinding dust, etc. The material is forced to be pressed and molded by mechanical pressure without adding a net, and the purity of the product is guaranteed. The process process process is short, energy consumption is low, and performance high. The dry powder is directly granulated without a subsequent drying process, which is more conducive to the connection and transformation of the existing production process. The granular strength is high and the increase in bulk density is more significant than in other granulation processes. The Underwater pelletizing machine is particularly suitable for occasions to increase the specific weight of the product collection. The operating flexibility is great, the range of applications is wide and the crushing force can be adjusted by hydraulic pressure.

What are the causes and solutions for the high melting of the Underwater pelletizing machine?

Causes analysis: high filter masks, low melting index of polypropylene powder and high feed volume, low temperature of each section of the Underwater pelletizing machine results in the material being incompletely melted, and a low opening rate of the template impede the extrusion of the nozzle head material, etc. The reasons may cause the melting pressure to be too high.

Solution: If the Underwater pelletizing machine produces products with a low melting index, a filter with a low mesh width should be used and the throttle opening should be enlarged to reduce backpressure; the filter should be replaced in time and the quality of different additives and polypropylene powder should be monitored. Contains medium ash. Reduce the feed load. Without compromising the quality of the extruded product, increase the temperature of each section of the cylinder to increase the temperature of the polypropylene melt and increase the flow capacity of the material. After the extruder has been stopped, increase the temperature of the head of the Underwater pelletizing machine and keep it at a constant temperature for a while and rinse and then thoroughly clean the template.

The underwater pelletizing machine have been used in many fields Nanjing JlEYA maintains close relationships with customers in underwater pelletizing machine industry, and is committed to strengthening production and operation, improving quality and safety.

The twin screw extrudernot only has the characteristics of a single-screw extruder, but also has the advantages of convenient feeding, stable extrusion, and convenient exhaust. It is widely used in the production and processing of extruded products.

Why are twin screw extruders warmly welcomed now?

Choose a single-screw extruder or a twin screw extruder?

What are the technical points of the twin screw extruder?

Why are twin screw extruders warmly welcomed now?

The twin screw extruder can not only add more ingredients to the company's products, but also can choose to quickly complete the manufacturing. Considering that "new crown pneumonia" has put every industry into trouble, the market has been looking for a quick turnaround to pay for healthy food. In addition, you may need to make up for the loss of production and sales or increase production and sales based on the current situation. Twin-screw extension can help you, and considering the lower cost and higher production and sales, it can bring more profits.

Choose a single-screw extruder or a twin screw extruder?

The single-screw extruder is used for extrusion processing technology and equipment, and the particle raw materials stay in the extruder for a long time. This means that a single-screw extruder requires a longer period than a twin screw extruder to produce the products required by the enterprise. In addition, the twin screw extruder allows you to better control the complex operation process and actual operation. As everyone knows, these controls are much more complicated. This is very important for foods that need to be mixed and mixed. The production and manufacturing facilities are complete, and the actual effect of twin-screw extrusion is the best. For polymer materials, twin-screw extrusion is also particularly effective. Considering that the design concept of twin screw extruder has a relatively large flexibility, it can be used in many industries for very specific operation processes.

What are the technical points of the twin screw extruder?

In the extrusion process of the twin screw extruder, the material is transformed from the glass state to the molten state. In addition to the balance between the heat required for plasticization of the material and the amount of heat supplied, the material is melted. Pressure is also a very important control indicator. Because the material is affected by the compression ratio of each section of the die resistance screw during the extrusion process, it does not exist under normal pressure. For different die, the compression ratio of each section of the screw is basically constant and immutable. Under the premise of the same extrusion speed, increase or decrease the feed rate, the volume of the screw material in the feeding section will change, and the volume of the material in the exhaust section will remain unchanged, so the compression section of the feeding section changes with the compression ratio, and its melt pressure follows Increase or decrease; under the premise of the same feed rate, increase or decrease the extrusion rate, the volume of the screw material in the feeding section will also change. The volume of the material in the exhaust section remains unchanged, so the compression section of the feed section changes with the compression ratio, and its melt pressure increases or decreases accordingly; the feed speed increases or decreases simultaneously with the extrusion speed, because the volume of the screw material in the feed section remains unchanged , Only due to the increase or decrease of the speed, the melt pressure change.

Due to different fields and different types of twin screw extruder, they are widely used in many industries. To meet these growing demands, Nanjing JlEYA has committed to providing the increasing of twin screw extruder.

Malfunctions that are caused by inadequate or improper maintenance can result in high repair costs and unnecessarily long gearbox down times. Regular servicing and inspection work are therefore imperative!
All servicing and repair work is only allowed to be performed with the gearbox stationary and by trained,authorized and appropriately instructed personnel.
Refilling lubrication oil
The oil level is to be checked regularly.It must never be below the bottom mark. In the case that the oil level drops below the minimum,it is imperative that the lubricant is topped up. The oil is only allowed to be topped up with the drive units shut down. A funnel with a filter is to be used for toppcng up (filter mesh 40um). The gearbox is always to be filled with the same type of oil as used previously It is not allowed to mix different oils or oils from different manufacturers.
Changing oil
The effectiveness of the oil reduces with increasing use due to soiling (foreign bodies and water)  and  chemical  changes(ageing  products).  When  the  soiling  and/or  ageing  is/are excessive, it is necessary to change the oil. Regular oil analyses provide information on the effectiveness of the gearbox oils. For larger quantities of oil it is recommended to make oil changes dependent on the results of an oil analysis.A missed oil change increases the risk of damage and can result in premature failure of the gearbox.
The first oil change should be made at approx.2500 perating hours.Subsequent oil changes depend on the state of the oil and are to be performed every 4,000 to 6,000 operating hours, however at the latest after one year.
The gear box is the core part of the twin screw extruders, we shall pay attention to its maintenance for long servicelife.

With the development of modern industry, the underwater pelletizing machine has become an important production equipment used in all aspects of production.

• What is the working principle of the underwater pelletizing machine?

• What is the operating procedure of the underwater pelletizing machine?

• What are the reasons why people choose underwater pelletizing machine?

What is the working principle of the underwater pelletizing machine?

The material using the underwater pelletizing machine will pass through the feeding port, and under the action of the rotating screw, it will be rolled into a dough and roll forward along the screw groove. Due to the shear, compression and agitation of the screw, the material will be further mixed and plasticized. , The temperature and pressure gradually increase, showing a state of viscous flow, and passing through the machine head with a certain pressure and temperature, and finally a product of the desired shape is obtained.

What is the operating procedure of the underwater pelletizing machine?

(1) Check the rotation direction of the impeller of the underwater pelletizing machine. From the feed inlet, the impeller should turn counterclockwise, otherwise the motor connection should be adjusted.

(2) The starting sequence of the underwater pelletizing machine and the material conveying equipment is as follows:

Discharge belt conveyor→PL vertical impact crusher→feeding belt conveyor

The crusher must be started without load, and the material can only be fed after the crusher is running normally.

(3) The feed size is strictly in accordance with the feed size specified by the various models. It is forbidden to enter the underwater pelletizing machine with the size of the material larger than the specified size, otherwise it will cause the impeller imbalance and excessive wear of the impeller, and even block the impeller flow path and The central feed pipe prevents the crusher from working normally. When a large piece of material is found, it should be removed in time.

(4) When the discharge belt conveyor stops running, the feeding should be stopped immediately, so the discharge belt conveyor should be interlocked with the feeding system to open and stop. Otherwise, the impeller will be crushed and the motor will be burnt.

(5) The feeding of the underwater pelletizing machine should be uniform and continuous.

(6) During the operation of the underwater pelletizing machine, there must be no violent vibration or abnormal noise, otherwise, it should be stopped immediately for inspection, and the machine can only be driven in order after the fault is removed.

(7) The observation door should be sealed tightly during the working process of the underwater pelletizing machine.

What are the reasons why people choose underwater pelletizing machine?

The difference between the underwater pelletizing machine and other similar products is that it has a steady stream of water flowing through the mold surface, and it is in direct contact with the mold surface. The size of the pelletizing chamber is just enough to allow the pelletizing knife to rotate freely across the die surface without restricting the temperature of the water flow. The molten polymer has been extruded from the die, and the rotating knife cuts the pellets. And then the pellets are taken out of the pelletizing chamber by the temperature-regulated water and enter the centrifugal dryer. In the dryer of the underwater pelletizing machine, the water will be drained back to the storage tank, cooled and recycled; the pellets pass through the centrifugal dryer to remove the water.

This is how we see the irreplaceable role of underwater pelletizing machine in our daily lives and industrial production. Nanjing JlEYA, the pioneer of underwater pelletizing machine producing company in China, knows that every application is special. You can go and get more information about them

Product Description
Weigh the complete feeding system (silo, feeder and bulk material) through static scales and control the discharge flow of bulk materials through variable speed motors or electric vibrators. Material is discharged from the system (via screw, vibrating tube or trough), the "loss" measured per unit of time (dv/dt) is compared to the required feed rate (preset value), the actual (measured) The difference between the flow rate and the desired (preset) flow rate generates a corrective signal through the dosing controller, which automatically adjusts the dosing rate to maintain the accurate dosing amount without process lag. When the weight measured in the silo reaches the low level of the silo (refilling), the controller will control the feeding system according to the volumetric feeding, and then the silo will be reloaded quickly (manually or automatically), and the weight loss controller will restart . In a batch loss-in-weight system, the design is similar to a continuous loss-in-weight system, however, the accuracy of the final weight of the feed (batch) cycle is higher than the actual feed amount control. The controller accomplishes fast dosing by providing a high dosing signal to the variable speed drive, then transitions to a low dosing control signal for precise control at the end of the batch. Technical parameter
Technical indicators:
Metering accuracy ≤0.5%
Ingredient accuracy ≤0.5%
Batching measurement control range 0.01-300t/h
Scope of application
Continuous stabilized soil, cement batching in concrete mixing plants, sintering quantitative control feeding, coal powder quantitative control feeding and batching of various thick slurries, etc.
Product introduction of loss-in-weight scale: the loss-in-weight feeder consists of a hopper, a feeder (single and double-shaft screw feeder), a weighing system and a regulator. During operation, the hopper, material and feeder are weighed continuously. As the material is delivered, the actual rate of weight loss is measured and compared to the desired rate of weight loss (set point). Automatically corrects for deviations from setpoint by adjusting feeder rates. Thus, the material can be fed continuously and evenly and accurately.
Applicable scope: granule, powder, calcium carbonate, talcum powder, resin film powder, flour, starch, etc. Powder gravimetric feeder: solves the problem of feeding metering and feeding with poor fluidity while pellet gravimetric feeder solve any bridging problems that may occur.

Quality Waste plastic granules making machine // plastic granulator extruder machine - find quality New Products, Recycle Washing Line

Find many great new

"Quality 1st, Honesty as base, Sincere company and mutual profit" is our idea, in an effort to create consistently and pursue the excellence for Lab Twin Screw Pp Extruder Machine, Hdpe Extruder, Extruder For Making Pellet, Biodegradable Pellet Extrusion Machine,Extruder Spare Parts Sales. Our company is working by the operation principle …

Global Extruder

An underwater pelletizer is typi

What is Plastic Masterbatch Compound Extruder with Side Feeder, PE, PP, TPE and Copolymers such as SBS Color batches Filler and additives extrusion manufacturers

Granules, Pelletizing. Twin Screw Type: Co-rotating Parallel Twin-screw. Screw diameter (mm): 71 mm. Screw Speed (rpm): 600 rpm. Showroom Location: None. Place of Origin: Jiangsu, China. ... High Torque Double Screw Plastic Extruder Granulating Line For Pla Starch Degradable Materials , Find Complete Details about High Torque Double Screw ...

Figure 3 Screw Barrel of PVC Extruder. Gearbox; For conical twin screw extruder, we have different ratio gearbox, like 36:1, 32:1, and 26:1, the different ratio gearbox need choose different power motor. Figure 4 High-End PVC Extruder Drives Electronic Components
