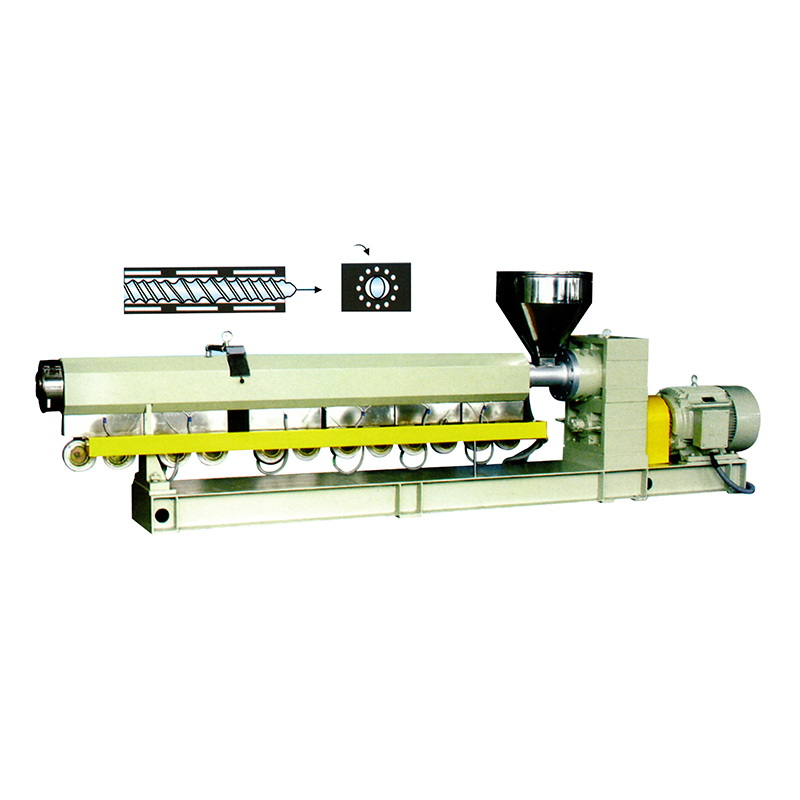

As common extruder equipment used in the plastic processing industry, single screw extruder is mainly used for extruding soft and hard PVC, polyethylene, and other thermoplastics, which can process many kinds of plastic products, such as blown film, extruded pipe, pressboard, drawn ribbon, etc. It can also be used for melt pelletizing. The plastic extruder has advanced design, high quality, good plasticization, low energy consumption, involute gear transmission, low noise, smooth operation, high load capacity, and long life. To have a long service life of the machine, maintenance measures are indispensable, the following is a detailed description of the single-screw extruder maintenance measures.
Here is the content list:
Daily maintenance.
Regular maintenance.
1. Because the electrical control system of single-screw extruder has high requirements for ambient temperature and dustproof, the electrical system should be separated from the production site, and install ventilation or ventilation fan, it is recommended that the electrical control cabinet in a simple room, keep the room clean, ventilation, so that the indoor temperature is not higher than 40 ℃.
2. Single-screw extruderis not allowed to run empty, so as not to roll the screw and machine simple hair. Host start idling is not allowed to exceed 100r / min; start the host first low speed, after starting the host to check for abnormal noises and then slowly increase the host speed to within the allowable range of the process (can be adjusted to the best state is good). When the new machine is breaking in, the current load should be at 60-70%, and the current in normal use should preferably not exceed 90%. Note: If an abnormal sound occurs when the extruder is running, it should be stopped immediately for inspection or repair.
3. Turn on the oil pump first and turn off the oil pump after shutting down the machine; keep the water pump working during the whole production process and do not stop the pump to avoid the barrel temperature rising and causing the material in the barrel to decompose and carbonize; the asbestos wind cover of the main motor fan needs to be cleaned often to avoid the dust sticking too much to block the wind cover and cause the motor to overheat and trip due to insufficient heat dissipation.
4. Clean up the dust and dirt, tools, and debris on the surface of the unit in time.
1.Regularly check the screws and other fasteners on the surface of the single-screw extruder unit for looseness and timely and proper tightening. The lubricant level of the transmission box should be added or replaced promptly (the dirt at the bottom of the oil tank should be cleaned regularly). For new machines generally, 3 months to replace the oil, after that every six months to a year. The oil filter and oil suction pipe should be cleaned regularly (once a month).
2. Single screw extruder gearbox maintenance and general standard reducer are the same. The main thing is to check the wear and failure of gears and bearings.
3, When reinstallation please note that A, B two screws must be in the original position, can not be replaced! After the installation of the new combination of the screw on the machine, you must first use the hand pan car, such as normal rotation before the low-speed start. Screw or barrel for a long time without use, there should be anti-rust and anti-fouling measures, the screw should be placed hanging. If the threaded block is with fire, the flame should be moved left and right, while burning to clean up, and can not burn too much (blue ringers red), not to mention the thread block into the water.
4. Regularly calibrate the temperature control instrument to check the correctness of its adjustment and the sensitivity of its control.
5. In the barrel with a cooling water tank, must be used distilled water to prevent the formation of scale blocking the cooling water channel in the barrel, resulting in temperature failure. Pay attention to the appropriate amount of water in use to prevent scaling. If the blockage should be changed down the cylinder specific maintenance, no blockage and the water output is small indicates that there is scale, the tank water should be changed to dilute hydrochloric acid swishing cycle, clear scale to normal and then change the distilled water. General water in the tank is used to cool the barrel, and the natural water we pass is used to cool the tank. Regularly check the water quality of the cooling water tank, if there is turbidity, should be replaced promptly.
6.Check whether the solenoid valve is working properly, the coil has not burned out if there is a timely replacement.
7. The temperature does not rise to quite the temperature continues to rise and fall may exist for the following reasons: whether the day electric couples loose fall; heater relay is working properly; solenoid valve is working properly, timely replacement of deformation of the heater, and tighten the screws.
8. Timely clean up the dirt in the vacuum tank, and the material in the exhaust chamber so that the pipeline is smooth. Vacuum pump seals need to be replaced promptly if there is wear and tear regular inspection, the output shaft jumping is bearing damage and shaft fracture must be opened and replaced, such as the gearbox two output shaft bearing position wear is too serious, the box must be replaced to avoid greater loss of failure.
9, To drive the screw rotation of the DC motor to focus on checking the brush wear and contact, the insulation resistance value of the motor whether in the specified value should also be measured frequently. In addition, check the connection line and other components that are rusted, and the use of protective measures.
10. When the single-screw extruder needs to stop using for a long time, should be in the screw, Jane, the head, and other working surfaces coated with anti-rust grease. The small screw should be suspended in the air or placed in a special wooden box, and a wooden block pad flat, so as not to deform the screw or bruise.
11. Single-screw extruder attached to the cooling water pipe wall is prone to scale external corrosion and rust. Maintenance should be carefully checked, too much scale will block the pipeline, can not achieve the cooling effect, rust will be serious leaks, so maintenance must take descaling and anti-corrosion cooling measures.
12. Designate a person responsible for the maintenance of equipment. And each maintenance and repair detailed record is included in the plant equipment management files.
If you still have questions, you can consult our company, we are happy to answer for you. The company insists on the purpose of "quality first, customer first", and warmly welcomes new and old customers to cooperate with us.
The special refining effect and excellent performance of the single screw extruder have been proved in practice. Practice has proved that the reciprocating single-screw mixing extruder is a new type of plastic extrusion equipment. The emergence of single screw extruder provides a high-performance plastic processing equipment for the majority of users. Made a huge contribution to the development of the plastics industry.
What is the function of the single screw extruder operation screen?
What is the significance of the emergence of a single screw extruder?
What are the application fields of single screw extruder?
The operating panel is installed above the single screw extruder and can be rotated within 60 degrees for easy operation. There is a power indicator and emergency stop button on the right side of the touch screen. In an emergency, press the emergency stop button to stop immediately, which is used to protect the safety of the operator and the single screw extruder. The data recording, parameter setting, operation control and other operations of the entire instrument are all completed in this operation screen.
In the process of polymer processing, in order to give the polymer certain processing characteristics or to give the product specific use performance, it is often necessary to blend different polymers or blend the polymer with various additives and pigments. The single-screw extruder has the characteristics of uniform shearing, high dispersion, high filling, and stretching of the melt. And it combines the advantages of single and twin screw extruders. The unique working principle, coupled with a complete set of threaded components and supporting equipment, makes it more widely used. On a single screw extruder, it can achieve mixing, Mixing, plasticizing, dispersing, shearing, stretching, degassing, and granulation make the interface area of the melt flow in the machine far larger than the general shear flow.
The reciprocating single-screw mixing extruder is a new type of plastic mixing processing equipment, which is widely used in the filling, blending, modification, crosslinking, grafting, color masterbatch, functional masterbatch, and resistance of various plastics. Production of fuel masterbatch, conductive material, degradable masterbatch, reinforcement, toughening and other special plastic materials.
Blending different types of polymers to obtain brand new polymer alloys with specific uses.
Various mineral fillers are added to the polymer melt to make high-filling materials with excellent performance and low price.
Production of various glass fiber reinforced and flame retardant products, with the addition of glass fiber up to 50%.
It is suitable for the production of various cable sheathing materials, insulating materials, cross-linking materials, semiconductors, shielding materials, and conductive materials.
Production of thermoplastic elastomers and hot melt adhesives.
The single screw extruder is increasingly used in industrial production.Nanjing JlEYA has committed itself to offering the best-suited single screw extruders at a reasonable price, and all that is necessary to meet the needs of the customer.
The extrusion technology used by the single screw extruder is making waves in the food production industry. We know that single screw extruder can mass produce enterprise products of various shapes and textures. It allows a seamless and continuous operation process, which means that this means lower costs and higher production and sales.
What are the reasons and solutions for the poor discharge or blockage of the single screw extruder head?
What is the importance of single screw extruder temperature control?
What is the importance of single screw extruder speed control?
1. Reasons: (1) A certain section of the heater does not work, and the material is poorly plasticized. (2) The operating temperature is set too low, or the molecular weight distribution of the plastic is wide and unstable. (3) There may be foreign objects in the single screw extruder that are not easy to melt.
2. Treatment method: (1) Check the heater and replace it if necessary. (2) Verify the set temperature of each section, negotiate with the technician if necessary, and increase the temperature set value. (3) Clean and check the extrusion system and head of the single screw extruder.
Temperature control refers to the temperature of the single screw extruder during plastic extrusion, including the temperature control of the barrel, die and transition body. These temperature controls are related to the viscosity of the material, the sensitivity to temperature, and the aggregation state of the polymer. In general, the temperature of the die head and transition body of single screw extruder is low for medium and low viscosity materials, and the temperature of die head and transition body for high viscosity materials is high, and the fluidity is good.
Speed control means that for single screw extrude processing, if the screw speed increases, the shear rate increases. Thermoplastic melts are mostly non-Newtonian pseudoplastic fluids, and their viscosity decreases with the increase of shear rate, and fluidity Increasing the extrusion output also increases. However, if the shear rate is too large, the melt viscosity is too low, which will cause difficulties in the production and operation of single screw extrude. At the same time, the low-viscosity melt will flow backwards under the action of the screw back pressure, and the leakage flow will increase significantly, which will affect the output to a certain extent. , Again, the screw may even slip at high speeds, so the screw speed should be controlled within a certain range. In addition, in the production process of single screw extrude, the screw speed should be kept as stable as possible to avoid fast and slow. Otherwise, it will cause uneven discharge due to excessive changes in the melt viscosity of the material, which will affect normal production.
Nanjing JlEYA is a single screw extruder manufacturer established for more than five years. We work with customers from design to completion to ensure that all technical requirements are met.
The screw can be said to be the heart of the injection molding machine. The quality of the screw determines the quality of the product. The plasticizing screw of the engineering plastic twin screw extruder has the functions of conveying, melting, mixing, compression, metering and exhausting. It plays an important role in the quality of plasticization and is a key factor affecting the quality of plasticization.

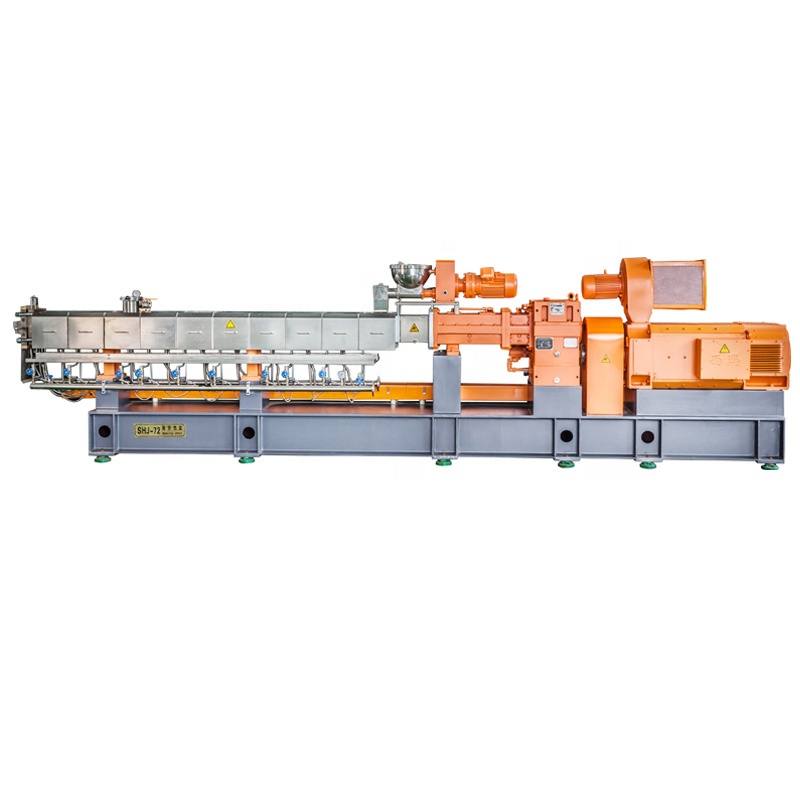

What is the difference between engineering plastic twin screw extruder and single screw extruder?
What are the characteristics of engineering plastic twin screw extruder?
What are the structural principles of engineering plastic twin screw extruder?
1. Price: single screw extruder has simple structure and low price; Engineering plastic twin screen expander is complex and expensive
2. Plasticizing capacity: single screw extruder is suitable for plasticizing and extruding polymers and granular materials. The shear degradation of polymer is small, but the residence time of material in extruder is long; The engineering plastic twin screw extruder has good mixing and plasticizing ability, and the residence time of materials in the extruder is short, which is suitable for powder processing.
3. In terms of processing capacity and energy consumption: the engineering plastic twin screw extruder has large output, fast extrusion speed and low energy consumption per unit output, while the single screw extruder is poor.
4. Operability: the single screw extruder is easy to operate and the process control is simple; The operation of engineering plastic twin screen expander is relatively complex and the process control requirements are high.
1. engineering plastic twin screw extruder is divided into parallel and conical according to the relative position of the two axes;
2. engineering plastic twin screw extruder is divided into meshing type and non-meshing type according to the two screw meshing procedures;
3. engineering plastic twin screw extruder is divided into the same direction and the opposite direction according to the rotation direction of the two screws, and there are inward and outward points in the opposite direction;
4. engineering plastic twin screw extruder is divided into high speed and low speed according to the screw rotation speed;
5. engineering plastic twin screw extruder is divided into whole and combination according to the structure of screw and barrel.
For the basic mechanism of the engineering plastic twin screw extruder process, in simple terms, a screw rotates in the barrel and pushes the plastic forward. The screw structure is an inclined surface or slope wound on the center layer, the purpose of which is to increase the pressure in order to overcome the greater resistance. As far as the engineering plastic twin screw extruder is concerned, there are three kinds of resistance that need to be overcome during work: one is friction, which includes the friction of solid particles (feeding) against the barrel wall and the first few revolutions of the screw (feeding zone). There are two kinds of mutual friction forces; the second is the adhesion of the melt on the cylinder wall; the third is the internal logistics resistance of the melt when it is pushed forward.
Nanjing JlEYA has focused on the development and production of engineering plastic twin screw extruders for several years. And it commits to provide perfect service for every customer from all over the world.
The underwater pelletizing machine is a smart machine with a touch screen, supports touch input, and is equipped with an Android system. The main engine of the underwater pelletizing machine is an extruder, which consists of an extrusion system, a transmission system and a heating and cooling system.
What are the possible failures of the underwater pelletizing machine and their solutions?
What are the advantages of the underwater pelletizing machine?
What are the applicable materials for the underwater pelletizing machine?
Cause analysis: underwater pelletizing machine cutter wears excessively or the cutter blade is damaged, the particle water flow is too low, the pelletizer vibration is too large, the cutter and the template are not tightly attached, the material melt index fluctuates, and the discharge flow rate is inconsistent. Excessive water temperature and other reasons can cause the shutdown of the underwater pelletizing system and cause the interlocking shutdown of the entire unit.
Solution: After stopping the underwater pelletizing machine, visually check whether the cutting edge of the cutting knife is excessively worn or damaged. If so, replace the cutting knife completely. Check and confirm whether the granular water leaks internally, whether the filter and cooler of the granular water tank are blocked. If they are blocked, they should be cleaned manually; check whether the inlet and outlet pressures of the granular water pump are normal. If not, check the valves on the granular water pump and the pump pipeline. Check whether the alignment between the cutter shaft and the underwater pelletizing machine is out of tolerance, whether the bearing assembly of the cutter shaft is damaged, and whether the cutter rotor is out of balance. During operation, check whether there is any gap in the contact between the four moving wheels of the pelletizing trolley and the guide rail. Control the volatile matter in the polypropylene powder and eliminate the vibration of the cutter and cutter shaft when it flows through the template hole. Reduce the temperature of the hot oil at the template of the underwater pelletizing machine, check the temperature distribution of the cylinder and the template, and whether the flow, pressure and temperature of the cooling water of the cylinder are normal; confirm the time setting for the "water, knife, material" to reach the template to prevent particles The water reaches the template prematurely and freezes the template hole. After closing the head of the underwater pelletizing machine, the feed volume should be quickly increased to the set load of the extruder.
The underwater pelletizing machine is a new model for pelletizing plastic materials that are elastic, easy to foam at low temperature, difficult to form, and have poor flow properties. The underwater pelletizing machine breaks through the traditional method of stranding pelletizing in the past. It overcomes the shortcomings of instability, uneven particles, easy agglomeration, and low output during the granulation of elastomer raw materials.
The underwater pelletizing machine is suitable for EVA, TPU and other materials with high viscosity and high viscosity of elastomers, and also suitable for conventional materials such as PP, PE, ABS, PA, and PC.
The widespread use of underwater pelletizing machines has continuously increased the demand for them in the market. Nanjing JlEYA, as a Chinese pioneer in underwater pelletizing machine, can ensure the machines’ quality and after-sales service.
Material delivery method
In a single-screw extruder, there is friction drag in the solids conveying section and viscous drag in the melt conveying section. The friction properties of the solid material and the viscosity of the molten material determine the conveying behavior. If some materials have poor friction properties, if the feeding problem is not solved, it will be difficult to feed the materials into the single-screw extruder. In twin-screw extruders, especially intermeshing twin-screw extruders, the conveying of materials is to some extent forward displacement transmission, and the degree of forward displacement depends on the relationship between the flight of one screw and that of the other screw. the proximity of the relative screw grooves. The screw geometry of the closely intermeshing counter-rotating extruder results in a high degree of positive displacement delivery characteristics.
Material flow velocity field
At present, the flow velocity distribution of the material in the single-screw extruder has been described quite clearly, while the flow velocity distribution of the material in the twin-screw extruder is quite complicated and difficult to describe. Many researchers just do not consider the material flow in the meshing area to analyze the flow velocity field of the material, but these analysis results are very different from the actual situation. Because the mixing characteristics and overall behavior of a twin-screw extruder are primarily determined by the leakage flow that occurs in the intermeshing zone, the flow situation in the intermeshing zone is quite complex. The complex flow spectrum of the material in the twin-screw extruder shows macroscopic advantages that the single-screw extruder cannot match, such as sufficient mixing, good heat transfer, large melting capacity, strong exhaust capacity and good temperature control of the material, etc.
PVC compounding extruder is divided into two types of hard and soft RPVC pipes, RPVC pipes are chemically resistant and insulating, mainly transporting various fluids and used as wire sleeves, etc. SPVC pipes are manufactured by extruding PVC resin with a large amount of plasticizer and a certain amount of stabilizer and other additives after granulation. The following is a detailed description of the equipment functions of the PVC compounding extruder.
Here is the content list:
High Speed Mixer High-Speed Mixing
Accurate matching of feeding device
Water tank for pipe forming
Traction machine frequency conversion speed control
Automatic cutting
Unloading the material from the turning frame
Raw material intermixture is to feature PVC stabilizer, softener, inhibitor, and different auxiliary materials to the high-speed mixer in proportion and sequence to the method.
The PVC compounding extruder part is equipped with a quantitative feeding device to match the extrusion volume with the feeding volume to ensure stable extrusion of products. Due to the characteristics of the conical screw, the feeding section has a larger diameter, and the heat transfer area and sheer speed of the material are larger, which is contributive to the plasticization of the fabric and also the little diameter of the screw within the metering section reduces the warmth transfer space and also the sheer speed of the soften so that the melt can be extruded at a lower temperature. When the screw rotates in the barrel, the PVC mixture is plasticized and pushed to the head to achieve compaction, melting, mixing, and homogenization and to achieve the purpose of exhaust and dehydration. The feeding device and screw drive device adopt frequency conversion to realize synchronous speed regulation.
PVC compounding extruder dies head part of the compacted, molten, blended, and homogenized PVC has subsequent materials through the screw to the die head extrusion die head is the key component of pipe forming.
The vacuum shaping water tank of PVC compounding extruderis used for pipe shaping and cooling, the vacuum shaping water tank is equipped with vacuum system for shaping and cooling and water circulation system stainless steel box body circulating water spray cooling, the vacuum shaping water tank is equipped with front and rear moving device and left and right, high and low adjustment manual device.
The traction machine is used to continuously and automatically lead the cooled and hardened pipe from the head with frequency control.
The cutting machine is controlled by the travel switch according to the required length and then automatically cut and delay the turning frame to implement the flow of production, the cutting machine with a fixed-length work switch signal as a command to complete the whole process of cutting in the cutting process and pipe running synchronization cutting process is completed by electric and pneumatic drive, the cutting machine is equipped with a dust suction device to suck out the cutting debris and recycling.
Unloading the material from the turning frame
The material turning action is controlled by the cylinder through the air circuit to achieve the material turning frame is equipped with a limit device when the cutting saw cut off the pipe after the pipe continues to transport after a delay, the cylinder into the work of turning action to achieve the purpose of unloading. After unloading, it will be automatically reset after a delay of several seconds to wait for the next cycle.
Nanjing JlEYA is the leading manufacturer extruder manufacturer specializing in twin screw extruder, mini twin screw extruder, plastic extruder and parallel twin screw extruder in China, which is widely used in compounding, modification, polymerization, devolatilization, reaction, recycling, etc. After 17 years development, now we have 20,000 square meters workshop with annual sales over 300+ sets, export over 60 countries.
JIEYA has the most experienced technical core team, with extensive experience in system integration of the development manufacturing, materials processing, application technology andother fields.
The Underwater pelletizing machine cuts pellets on the plastic steel ejection surface without centrifugal action to eject them, but direct water pressure flows through the nozzle surface to drain.
What is contained in the extrusion system of the Underwater pelletizing machine?
What is the use of the Underwater pelletizing machine?
What are the causes and solutions for the high melting of the Underwater pelletizing machine?
The extrusion system includes a snail, a cylinder, a funnel, a nozzle, and a nozzle. Through the extrusion system, the plastic is plasticized into a uniform melt and continuously extruded by the screw under the resulting pressure.
(1) Screw: It is the most important part of the Underwater pelletizing machine. It is directly related to the scope and productivity of the extruder. It consists of high-strength corrosion-resistant alloy steel.
(2) Cylinders: The cylinder is a metal cylinder that is generally made of alloy steel or composite steel tubes clad with alloy steel, heat resistant, high-pressure resistant, strong, wear-resistant, and corrosion-resistant. The cylinder and the screw are matched to each other to realize the crushing, grinding, melting, plasticization, suction, and compaction of the plastic as well as the continuous and uniform supply of the rubber material to the molding system. In general, the barrel length of an Underwater pelletizing machine is 15-30-fold its diameter, so that the plastic is completely heated and plasticized.
Underwater pelletizing machines can be used for chemical fertilizers, white soot, inorganic salts, chlorinated isocyanic acid, bleaching powder, pesticides, oxides, etc. as well as for industrial recycling dust: such as cast iron dust, lead, zinc, aluminum dust, converter dust, filter dust, grinding dust, etc. The material is forced to be pressed and molded by mechanical pressure without adding a net, and the purity of the product is guaranteed. The process process process is short, energy consumption is low, and performance high. The dry powder is directly granulated without a subsequent drying process, which is more conducive to the connection and transformation of the existing production process. The granular strength is high and the increase in bulk density is more significant than in other granulation processes. The Underwater pelletizing machine is particularly suitable for occasions to increase the specific weight of the product collection. The operating flexibility is great, the range of applications is wide and the crushing force can be adjusted by hydraulic pressure.
Causes analysis: high filter masks, low melting index of polypropylene powder and high feed volume, low temperature of each section of the Underwater pelletizing machine results in the material being incompletely melted, and a low opening rate of the template impede the extrusion of the nozzle head material, etc. The reasons may cause the melting pressure to be too high.
Solution: If the Underwater pelletizing machine produces products with a low melting index, a filter with a low mesh width should be used and the throttle opening should be enlarged to reduce backpressure; the filter should be replaced in time and the quality of different additives and polypropylene powder should be monitored. Contains medium ash. Reduce the feed load. Without compromising the quality of the extruded product, increase the temperature of each section of the cylinder to increase the temperature of the polypropylene melt and increase the flow capacity of the material. After the extruder has been stopped, increase the temperature of the head of the Underwater pelletizing machine and keep it at a constant temperature for a while and rinse and then thoroughly clean the template.
The underwater pelletizing machine have been used in many fields Nanjing JlEYA maintains close relationships with customers in underwater pelletizing machine industry, and is committed to strengthening production and operation, improving quality and safety.
