The basic mechanism of the twin screw extrusion process is simply that a screw rotates in the barrel and pushes the plastic forward. The screw structure is a bevel or ramp wrapped around a central layer, the purpose of which is to increase the pressure to overcome the higher resistance. What do I need to pay attention to when using a twin screw extruder? The following is a detailed description.
Here is the content list:
l Structural principles
l Temperature principles
l Speed reduction principle
For the extruder, there are three kinds of resistance to overcome when working: one is friction, which contains the friction of the solid particles (feed) on the barrel wall and the mutual friction between them during the first few turns of the screw (feed area); the second is the adhesion of the melt on the barrel wall, and the third is the resistance of the internal logistics of the melt when it is pushed forward.
According to Newton's theorem, if an object is at rest in a certain direction, then the object is in a state of equilibrium balance of forces in this direction. For the circumferential movement of the screw, it is no axial motion, that is, the axial force on the screw is in equilibrium. So if the screw exerts a large forward thrust on the plastic melt, it also exerts a backward thrust on another object of the same magnitude but in the same direction. The thrust is exerted on the thrust bearing behind the feed opening. Most single screws have right hand threads, and if viewed from the back, they rotate backward, and they spin backward out of the barrel by rotational motion. In some twin screw extruders, however, the two screws rotate backward and cross each other in both barrels, so one must be right handed and one left handed, and in the case of an occluding twin screw, both screws rotate in the same direction and must therefore have the same orientation. However, in either case, there are thrust bearings that withstand backward forces and still comply with Newton's theorem.
Plastics extruded by twin screw extruders are thermoplastics, which melt when heated and solidify again when cooled. Thus, heat is needed during the extrusion process to ensure that the plastic can reach the melting temperature. So where does the heat to melt the plastic come from? First of all, the pound feed preheat and barrel/die heaters may play a role and are very important at startup. In addition, the motor feed energy, the frictional heat generated in the barrel as the motor overcomes the resistance of the viscous melt and turns the screw, is the most important heat source for all plastics, except for small systems, low speed screws, high melt temperature plastics, and extrusion coating applications. In operation, it is important to recognize that the barrel heater is not the primary heat source and that it may play a smaller role in extrusion than we might expect. The post barrel temperature is more important because it affects the rate of solids transport in the dentition or feed. In general, except for a specific purpose (such as varnishing, fluid distribution, or pressure control), the die head and die temperature should be at or near the temperature required for the melt.
In most twin screw extruders, the screw speed is varied by adjusting the motor speed. The drive motor usually turns at a full speed of about 1750 rpm, which is too fast for an extruder screw. If it turns at such a fast speed, too much frictional heat is generated and a uniform, the well mixed melt cannot be prepared because the retention time of the plastic is too short. A typical speed reduction ratio should be between 10:1 and 20:1, with either a gear or pulley set for the first stage, but with a gear and a screw positioned in the center of the last large gear for the second stage. For some slow running machines (eg. twin screws for UPVC), there may be three reduction stages and the maximum speed may be as low as 30 rpm or less (ratio up to 60:1). On the other hand, some very long twin screws for mixing can run at 600 rpm or faster, thus requiring a very low reduction rate and more deep cooling. If the reduction rate is incorrectly matched to the job, too much energy will be wasted. It may be necessary to add a pulley set between the motor and the first deceleration stage where the maximum speed is changed, which either increases the screw speed even beyond the previous limit or reduces the maximum speed. This increases the available energy, reduces the current value, and avoids motor failure, in both cases, the output may increase due to the material and its cooling needs.
If you still have questions, you can consult our company. Nanjing JlEYA is the leading professional manufacturer of twin screw extruders in China.
The single screw extruder is a special reduction power device designed for plastic and rubber single screw extruder equipment. The reducer is matched with the motor. The gear parts are made of high-strength alloy steel. The gears are processed by carburizing, quenching, and high-precision gear grinding. The gear accuracy is level 6, and the tooth surface hardness is HRC58-62.
What is the principle of single screw extruder?
What is the current industry development of single screw extruder?
What should I pay attention to when using single screw extruder?
The single screw extruder is generally divided into three sections in effective length. The effective length of the three sections is determined according to the diameter of the screw and the pitch and depth of the screw, which are generally divided into one-third of each; the last thread of the single screw extruder has been called the conveying section. It is required that it cannot be plasticized, but it must be preheated and compressed;
The second section of the single screw extruder is called the compression section. At this time, the volume of the screw groove gradually decreases, and the temperature must reach the degree of plasticization of the material. The compression produced here is from the conveying section three, and here it is compressed to one. Some machines also have Change, the plasticized material enters the third stage;
The third section of the single screw extruder is the metering section, where the material maintains the plasticizing temperature to supply the machine head, which is generally slightly higher than the plasticizing temperature.
In single screw extruder equipment, the plastic extruder is normally referred to as the main machine and the following equipment, the plastic extruder, is referred to as the auxiliary machine. After more than 100 years of development, the plastic extruder has been derived from the original single-screw extruder, a variety of models such as double-screw, multi-screw and even non-screw models have been derived. The plastic extruder (host) can be used with different plastic moulding machines such as tube, foil, holding material, monofilament, flat wire, strapping, extruding network, plate material, profile material, pelleting, cable coating, etc. are used. Suitable for different plastic extrusion production lines for the production of different plastic products. Therefore, plastic extrusion machines are today and in the future one of the most common models in the plastics processing industry.
What should I pay attention to when using single screw extruder?
(1) The material convey way of the single screw extruder mainly relies on friction, which limits its feeding performance. And it is difficult to add the powder, paste, glass fiber and inorganic fillers, so pay attention to the material used.
(2) When the pressure of the single screw extruder head is high, the reverse flow will increase and the productivity will decrease. Therefore, always pay attention to the pressure of the equipment.
(3) The surface renewal effect of the single screw extruder material in the exhaust zone is small, so the exhaust effect is poor.
(4) single screw extruder is not suitable for certain processes, such as polymer coloring, thermosetting powder processing, etc.
The single screw extruder has achieved an irreplaceable position in industrial production. Nanjing JlEYA is committed to providing various bending and rolling machines of high quality for all customers from all over the world.
Nanjing Jieya is a professional manufacturer of twin screw compounding extruders since 2004. Our extruders series include SHJ series, HT series, JY series, SJ series, etc. Today we will tell you the differences between SHJ series twin screw extruders and HT series high torque twin screw extruders from three main points below:
1. Torque grade
The torque rating grade of our SHJ series twin screw extruder is T/A3≤8 while HT series is 9≤T/A3≤13.5. Our HT series adopt high torque gear box, which is suitable for customers that pursuit high efficiency machines.
2. Power transmission
SHJ series use clutch for power transmission while HT series use torque protector, for example, R+W brand, Bibby brand, etc.
3. Output
The output of HT series twin screw extruder is much higher than SHJ series.
So HT series can further improve the performance of extruders.But surely, price is higher than SHJ series.
Nanjing JIEYA attend Chinaplas 2021 held in Shenzhen. We sincerely welcome your visiting.
Our booth no.: 7Q25
Time: April 13-16, 2021
Address: Shenzhen World Exhibition Center
Look forward to meet you at there.
![]() | ![]() |
The single screw extruder is mainly used for extruding soft and hard polyvinyl chloride, polyethylene, and other thermoplastic. It can be a variety of plastic products such as bubble sheets, extruded pipes, press plates, ribbons, etc. process and can also be used for melting granulation. The plastic extruder is characterized by advanced design, high quality, good plasticization, and low energy consumption. It uses an evolutionary drive and is characterized by low noise development, stable operation, great durability, and long service life.
What are the relevant parameters of a single screw extruder?
What are the properties of a single screw extruder?
For which materials can a single screw extruder be used?
The relevant parameters of the insertion extruder are arranged from left to right: the first field is the plastic machine code as S; the second box is the extruder code as J; the third field is the code for the different construction firms of the extruder. The three bars are combined, the plastic extruder is SJ; the ventilated plastic extruder is SJP; the plastic foam extruder is SJF; the extruder with plastic input is SJW; the plastic shoe extruder is SJE; The cascade plastic extruder is SJJ; the double-screw extruder is SJS; the conical double-screw extruder is SJSF; the multi-screw extruder is SJD. The fourth box is for auxiliary machinery with the code name F; in the case of an extruder unit with the code name E. The fifth parameter refers to the snail diameter and the ratio of length to snail diameter. The sixth field refers to the product's pattern sequences, which in the order of letters A, B, C... is arranged and the sample number is not given in the first sample.
(1) The material support of the inlet extruder is mainly based on friction, which limits the conveyance performance of the inlet extruder. The addition of powder, paste, fiberglass, and inorganic fillers is difficult.
(2) If the head pressure of the inlet extruder is high, the counter current increases, which reduces the productivity of the inlet extruder.
(3) Injected exhaust gas extruder material has a low surface regeneration effect in the suction zone, so the suction effect of the inlet extruder is poor.
(4) Injection extruder is used for certain processes, such as polymer dyeing, heat-resistant powder processing, etc. not suitable. The single screw extruder is a high-speed and high-yield extrusion based on a high level.
single screw extruder series, single screw extruders can be used for the processing of PP, PE, PS, ABS, PMMA, PVC, and other thermoplastic tubes, plates, plates, rods, profile materials, and plastic granulation products. For different raw materials and product specifications, the screw assumes different length-diameter ratios and compression ratios, and the flow assumes different structures. Choose the right cylinder, screw, and drive mechanism to meet the processing requirements of high-quality products.
The use of single screw extruders is becoming increasingly widespread. Nanjing JlEYA has been concentrating on single screw extruders for several years. They will make every effort to meet the needs of users.
Jieya team wish you have a nice holiday :)
(Nanjing Jieya is a professional manufacturer of twin screw compounding extruders with 20+ years experience and competitive price. We look forward to receive your inquiry.)
A twin screw extruder is composed of several parts such as a transmission device, feeding device, barrel, and screw, etc. The role of each part is similar to that of the single screw extruder. So what are the main differences between the twin screw extruder and single screw extruder? The following is the detailed introduction
Here is the content list:
l Cross sectional profile
l The way of material transfer
l The material flow velocity field
The difference from the single screw extruder is that the twin screw extruder has two parallel screws in an "∞" shaped cross section. Twin screw extruders for profile extrusion are usually closely meshed and heterogeneously rotating, although a few also use co rotating twin screw extruders, which generally operate at relatively low screw speeds of about 10 r/min. High speed meshing co rotating twin screw extruders are used for blending, venting, or as continuous chemical reactors, with maximum screw speeds ranging from 300 600 r/min. Non engaging extruders are used for mixing, venting, and chemical reactions, and their conveyors are very different from those of engaging extruders, and are closer to those of single screw extruders, although they are fundamentally different.
In the single screw extruder, the solid conveying section is friction dragging and the melt conveying section is viscous dragging. The frictional properties of solid materials and the viscosity of molten materials determine the conveying behavior. If some materials have poor frictional properties, it is more difficult to transfer the material to the single screw extruder if the feeding problem is not solved. In twin screw extruders, especially meshing twin screw extruders, the material transfer is to some extent a positive displacement transfer, the degree of positive displacement depending on the proximity of the screw prongs of one screw to the relative screw grooves of the other screw. The screw geometry of a closely meshed anisotropic rotary extruder yields a high degree of positive displacement transport characteristics.
The flow velocity distribution of the material in a single screw extruder has been described fairly well, whereas the flow velocity distribution of the material in a twin screw extruder is quite complex and difficult to describe. Many researchers have analyzed the velocity field of the material without considering the material flow in the engagement zone, but the results of these analyses are very different from the actual situation. This is because the mixing characteristics and overall behavior of a twin screw extruder depend mainly on the leakage flow that occurs in the engagement zone, yet the flow in the engagement zone is quite complex. The complex flow spectrum of the material in a twin screw extruder exhibits macroscopic advantages that cannot be matched by a single screw extruder, such as adequate mixing, good heat transfer, high melting capacity, good venting capacity, and good control of the material temperature.
If you want to know more, you can consult our company. Nanjing JlEYA is the leading manufacturer extruder manufacturer specializing in a twin screw extruder, mini twin screw extruder, plastic extruder, and parallel twin screw extruder in China, which is widely used in compounding, modification, polymerization, devolatilization, reaction, recycling, etc. After 17 years of development, now we have a 20,000 square meters workshop with annual sales of over 300+ sets, export over 60 countries.
JIEYA has the most experienced technical core team, with extensive experience in system integration of the development manufacturing, materials processing, application technology, and other fields.

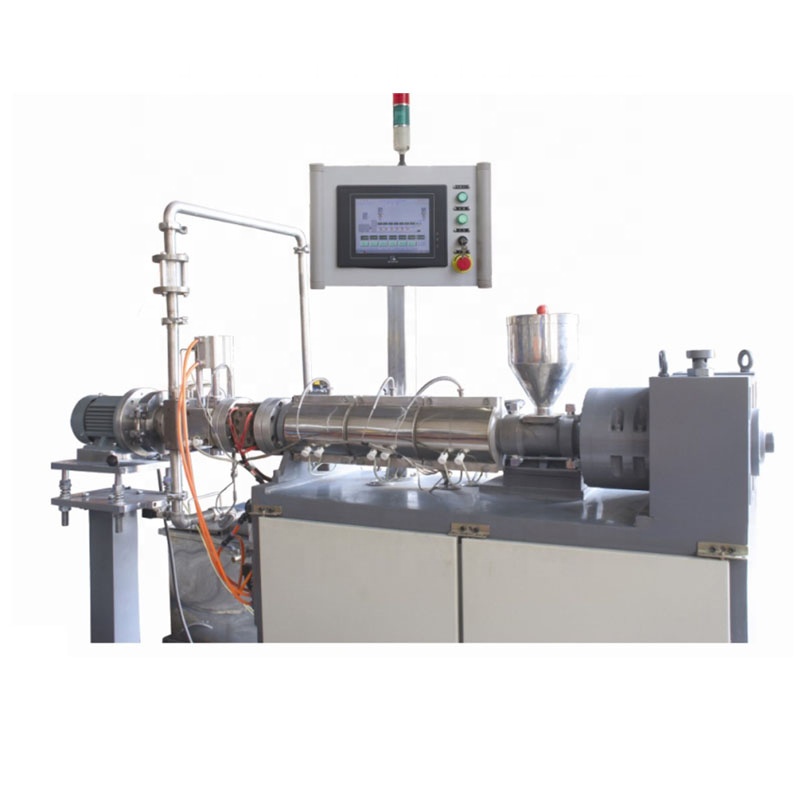

The single screw extruder is mainly composed of 3 parts: extrusion system, transmission system, and heating and cooling system. The following is a detailed introduction to the basic structure of the single screw extruder.
Here is the content list:
Extrusion system
Transmission system
Heating and cooling system
The main role of the extrusion system of the single-screw extruder is to melt and plasticize the polymer material to form a uniform melt, to realize the transformation from the glassy state to the viscous flow state. And in this process to establish a certain pressure, by the screw continuous extrusion delivery to the head die. Thus, the extrusion system plays an important role in the molding quality and output of the extrusion process.
The extrusion system mainly includes the feeding device, screw, and barrel, which is the most critical part of the extruder, of which the screw is the heart of the extruder, the material through the rotation of the screw in order to move in the barrel and get pressurized and part of the heat.
The drive system of a single screw extruder is usually composed of a motor, reducer, and bearing, whose role is to drive the screw and supply the torque and torque required by the screw in the extrusion process. During the extrusion process, the screw speed is required to be stable and does not change with the change of screw load to ensure the uniform quality of the product. However, in different situations, the screw is required to be able to achieve variable speed in order to achieve a machine that can adapt to the requirements of extruding different materials or products of different shapes. In most extruders, the change of screw speed is achieved by adjusting the motor speed. The drive system of the single-screw extruder is also equipped with a good lubrication system and a device for rapid braking.
The heating and cooling system of a single screw extruder consist of a heating device and cooling device, which are necessary for the extrusion process to be carried out smoothly. The heating and cooling devices must ensure that the polymer materials are melted and plasticized and the temperature conditions during the molding process meet the process requirements.
The cooling device is generally set up in the extruder barrel, screw and hopper bottom, and other parts. Barrel cooling can be water-cooled or air-cooled, air-cooled is generally used for small and medium-sized single-screw extruders; large single-screw extruders are mostly water-cooled or a combination of the two forms. The cooling device at the bottom of the hopper is mainly to strengthen the solid material conveying effect, to prevent the material particles from becoming sticky due to the heating, blocking the material mouth and thus affecting the feeding. Generally, for extruders with a screw diameter of 90mm or more and high-speed extruders, a cooling device must be installed at the bottom of the hopper.
Our company focuses on twin-screw extruders, micro twin-screw extruders, plastic extruders, parallel twin-screw extruders, and other kinds of research and development and manufacturing as the core of the isotropic rotary twin-screw compounding extruder. If you still want to know more, you can consult our company.
