A single-screw extruder consists of an Archimedes screw rotating in a heated barrel. It is widely used because of its simple structure, easy manufacturing, high processing efficiency, and low price, and is the most technically mature and used type of extruder at present. The following is a detailed introduction to single-screw extruders.
Here is the content list:
The design concept of a single-screw extruder
Single-screw extruder features
Uses of single screw extruder
(1) Single-screw extruders are high-speed, high-output extrusions based on high quality, and the design concept of low-temperature plasticization ensures the extrusion of high-quality products. Two-step overall design to strengthen the plasticizing function and ensure the adjustment of high-performance extrusion.
(2) A special barrier of the single-screw extruder, integrated mixing design to ensure material mixing effect and high torque output, extra-large thrust bearing.
(3) The gears and shafts of a single screw extruder are high-strength alloy steel, carburized, ground teeth treatment, high hardness, high finish, and ultra-low noise. PLC intelligent control, the linkage between main and auxiliary machines is possible.
(4) Single screw extruder easy to monitor human-machine interface, easy to understand the processing and machine status, and the control method (temperature control instrument) can be changed as needed.
(5) The material of the single screw extruder is 38CrMoAL/A nitride treatment, which is wear-resistant. It has a combination of air-cooled and water-cooled cooling for strict temperature precision control, and the unique air inlet design makes it a perfect water-cooling device.
(6)Single screw extruder with grooved surface feeding bottom sleeve of screw barrel has enhanced feeding function, which provides a guarantee for high speed and high output extrusion.
1. Hard gearbox, AC or DC stepless drive speed regulation.
2. New screw structure, melt and mix uniformly to ensure low melt temperature and high output
3. Screw barrel material adopts nitride steel 38CrMoAIA nitride treatment, and the surface alloy treatment has higher hardness.
4. Cast copper, cast aluminum heater, air-cooled and water-cooled according to requirements.
5. Advanced electrical control system of single screw
Pipe extrusion of single-screw extruder: it is suitable for PP-R pipe, PE gas pipe, PEX cross-linked pipe, aluminum-plastic composite pipe, ABS pipe, PVC pipe, HDPE silicon core pipe, and various co-extruded composite pipes.
Sheet and plate extrusion: applicable to PVC, PET, PS, PP, PC, and other profiles and plates extrusion. Extrusion of various other plastics such as silk, rod, etc.
Profile extrusion: adjusting the extruder speed and changing the structure of the extrusion screw can be applied to the production of various plastic profiles such as PVC, polyolefin, etc. Modified pelletizing: It is suitable for blending, modifying, and enhancing pelletizing of various plastics.
Nanjing JlEYA is a leading extruder manufacturer specializing in a twin-screw extruder, micro twin-screw extruder, plastic extruder, and parallel twin-screw extruder, which are widely used in compounding, modification, polymerization, devolatilization, reaction, recycling, and other fields. After 17 years of development for many years, now we have a 20,000 square meters plant, 300+ sets of annual sales, and export to more than 60 countries.
Each type of product in the plastic extruder line has its operating characteristics, and a detailed understanding of its operating characteristics is necessary to give full play to the effectiveness of the machine. The following is a detailed description of the operating procedures and maintenance methods for plastic extruders.
Here is the content list:
Operation procedures
Maintenance methods
The plastic extruder is one of the machine types, master the extruder operation points, the correct and reasonable use of a plastic extruder. The use of plastic screw extruder includes a series of links such as installation, adjustment, commissioning, operation, maintenance, and repair of the machine, and its use has the commonality of general machines, mainly in the drive motor and reduction and speed change device. However, the working system of the plastic screw extruder, the extrusion system, is unique, and special attention should be paid to its characteristics when using the plastic screw extruder. Extruder manuals generally have clear provisions for the installation, adjustment, and commissioning of the machine, here the main points of the operation, maintenance, and repair of the plastic screw extruder are briefly described as follows: in particular, to correctly grasp the structural characteristics of the screw, heating and cooling management instrumentation characteristics and assembly, the correct extrusion process conditions, the correct operation of the machine.
1.Pastic extruder equipment should be placed in a ventilated position to ensure that the heat of the motor work prolongs its life; the machine should be kept well grounded.
⒉Regularly check the tool screws, the plastic extruder after 1 hour of use, with tools to tighten the moving knife, fixed knife screws, to strengthen the fixed between the blade and the knife frame; should be regularly filled with lubricating oil to ensure the lubrication between the bearings; to ensure the sharpness of the cutting edge of the tool, should always check the tool to ensure its sharpness, to reduce unnecessary damage to other parts caused by the blunt lack of the blade; regularly check whether the belt is loose, and timely tightening.
3. Restart - Before starting the plastic extruder for the second time, the remaining debris in the machine chamber should be cleared to reduce the starting resistance. Periodically open the inertia cover and pulley cover to clear the ash outlet under the flange, which can cause the powder to enter the shaft bearing.
4. Replacement parts - When replacing knives, the clearance between the moving and fixed knives should be 0.8 MM for crushers over 20 HP and 0.5 MM for crushers under 20 HP. The thinner the recycled material is, the gap can be adjusted appropriately larger.
If you need to know more, you can consult our company. The company focused on co-rotating twin-screw compounding extruders with the core of the various R&D and manufacturing, such as a twin-screw extruder, mini twin screw extruder, plastic extruder, parallel twin-screw extruder, and so on, the application covers compounding mixing modified granulation, polymerization, devolatilization, step molding, renewable recycling, and other fields.
The Underwater pelletizing machine cuts pellets on the plastic steel ejection surface without centrifugal action to eject them, but direct water pressure flows through the nozzle surface to drain.
What is contained in the extrusion system of the Underwater pelletizing machine?
What is the use of the Underwater pelletizing machine?
What are the causes and solutions for the high melting of the Underwater pelletizing machine?
The extrusion system includes a snail, a cylinder, a funnel, a nozzle, and a nozzle. Through the extrusion system, the plastic is plasticized into a uniform melt and continuously extruded by the screw under the resulting pressure.
(1) Screw: It is the most important part of the Underwater pelletizing machine. It is directly related to the scope and productivity of the extruder. It consists of high-strength corrosion-resistant alloy steel.
(2) Cylinders: The cylinder is a metal cylinder that is generally made of alloy steel or composite steel tubes clad with alloy steel, heat resistant, high-pressure resistant, strong, wear-resistant, and corrosion-resistant. The cylinder and the screw are matched to each other to realize the crushing, grinding, melting, plasticization, suction, and compaction of the plastic as well as the continuous and uniform supply of the rubber material to the molding system. In general, the barrel length of an Underwater pelletizing machine is 15-30-fold its diameter, so that the plastic is completely heated and plasticized.
Underwater pelletizing machines can be used for chemical fertilizers, white soot, inorganic salts, chlorinated isocyanic acid, bleaching powder, pesticides, oxides, etc. as well as for industrial recycling dust: such as cast iron dust, lead, zinc, aluminum dust, converter dust, filter dust, grinding dust, etc. The material is forced to be pressed and molded by mechanical pressure without adding a net, and the purity of the product is guaranteed. The process process process is short, energy consumption is low, and performance high. The dry powder is directly granulated without a subsequent drying process, which is more conducive to the connection and transformation of the existing production process. The granular strength is high and the increase in bulk density is more significant than in other granulation processes. The Underwater pelletizing machine is particularly suitable for occasions to increase the specific weight of the product collection. The operating flexibility is great, the range of applications is wide and the crushing force can be adjusted by hydraulic pressure.
Causes analysis: high filter masks, low melting index of polypropylene powder and high feed volume, low temperature of each section of the Underwater pelletizing machine results in the material being incompletely melted, and a low opening rate of the template impede the extrusion of the nozzle head material, etc. The reasons may cause the melting pressure to be too high.
Solution: If the Underwater pelletizing machine produces products with a low melting index, a filter with a low mesh width should be used and the throttle opening should be enlarged to reduce backpressure; the filter should be replaced in time and the quality of different additives and polypropylene powder should be monitored. Contains medium ash. Reduce the feed load. Without compromising the quality of the extruded product, increase the temperature of each section of the cylinder to increase the temperature of the polypropylene melt and increase the flow capacity of the material. After the extruder has been stopped, increase the temperature of the head of the Underwater pelletizing machine and keep it at a constant temperature for a while and rinse and then thoroughly clean the template.
The underwater pelletizing machine have been used in many fields Nanjing JlEYA maintains close relationships with customers in underwater pelletizing machine industry, and is committed to strengthening production and operation, improving quality and safety.
The main system of the plastic extruder is the extrusion system, which includes screw, barrel, hopper, head, and die. The plastic is plasticized into a uniform melt by the extrusion system and is continuously extruded from the head by the screw under the pressure established in the process. The following are details about the plastic extruder extrusion system introduction.
Here is the content list:
Screw
Barrel
Hopper
Head and mold.

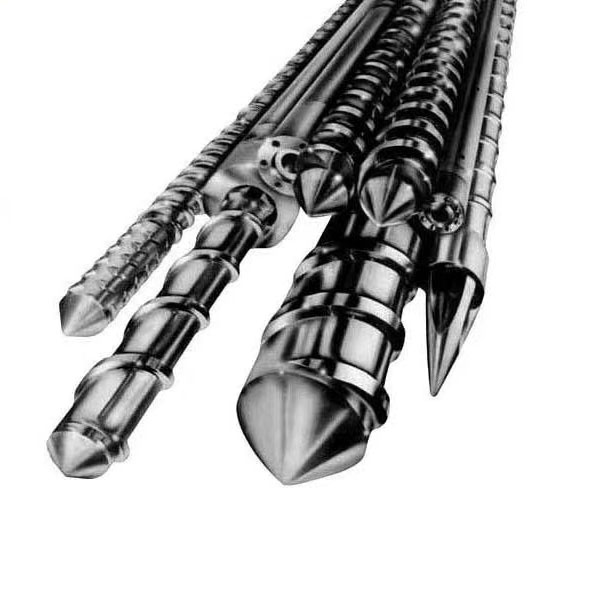

The screw is the most important part of the extruder, which is directly related to the application range and productivity of the extruder and is made of high-strength and corrosion-resistant alloy steel.
The barrel is a metal cylinder, generally made of heat-resistant, high-pressure strength, strong wear-resistant, corrosion-resistant alloy steel or composite steel tube lined with alloy steel. The barrel and the screw cooperate to realize the crushing, softening, melting, plasticizing, exhausting, and compacting of the plastic, and to continuously and evenly deliver the rubber to the molding system. Generally, the length of the barrel is 15-30 times its diameter, so that the plastic is fully heated and fully plasticized as a principle.
The bottom of the hopper is equipped with a cut-off device to adjust and cut off the material flow, and the side of the hopper is equipped with a sight hole and a calibrated measuring device.
The head is composed of alloy steel inner sleeve and carbon steel outer sleeve, the head is equipped with a molding mold, the role of the head is to transform the rotational movement of the plastic melt into a parallel linear motion, evenly and smoothly into the mold sleeve, and give the plastic to the necessary molding pressure. The plastic is plasticized and compacted in the barrel and flows through the neck of the head through a certain flow path through the porous filter plate into the forming mold of the head. The mold core and mold sleeve are properly matched to form an annular gap with decreasing cross-section so that the plastic melt forms a continuous dense tubular cladding layer around the core line. To ensure that the plastic flow channel in the head is reasonable and to eliminate the dead angle of the accumulated plastic, there is often a diversion sleeve placed, and to eliminate the pressure fluctuation of plastic extrusion, there is also a pressure equalization ring set. The head is also equipped with a die correction and adjustment device to facilitate the adjustment and correction of the concentricity of the die core and die sleeve.
The extruder head is divided into an angled head (120o angle) and a right angle head according to the angle between the head material flow direction and the screw centerline. The shell of the head is fixed to the body with bolts, the die inside the head has a die core sitting and is fixed to the head inlet port with a nut, the front of the die core seat is equipped with a die core, the die core and the center of the die core seat has a hole for passing the core line, the front of the head is equipped with an even pressure ring for equalizing the pressure, the extrusion package forming part is composed of die sleeve seat and die sleeve, the position of the die sleeve can be adjusted by bolts through the support to adjust the die sleeve to the die core The position of the die sleeve can be adjusted by bolts through support to adjust the relative position of the die sleeve to the die core, which is convenient to adjust the uniformity of the thickness of the extruded layer.
If you want to buy a plastic extruder or want to know more, you can visit our official website. Our website is https://www.njjyextrusion.com/
The engineering plastic twin screw extruder was developed based on a single screw extruder. Due to its good feed performance, mixing and plasticization performance, suction performance, and extrusion stability, it is often used in extruded products.
What are the advantages of engineering plastic twin screw extruders?
What role do pre-heaters play in the use of engineering plastic twin screw extruders?
What is the reason for the "fault" of the exhaust air opening of the engineering plastic twin screw extruder?
1. wear
By simply opening the engineering plastic twin screw extruder, the wear level of the threaded parts and the inner sockets of the cylinder can be determined at any time, so that we need to carry out effective maintenance or exchange. It is not detected if there is a problem with the extruded product causing unnecessary waste.
2. Reduce production costs
When a engineering plastic twin screw extruder is made of technical plastic Masterbatch, it is often necessary to change the color. It is necessary to change the product.
Simply open the open editing area within a few minutes. In addition, the mixing process can be performed by observing the melting profile on the entire screw. analysis. When changing the color of an ordinary engineering plastic twin screw extruder, a large amount of cleaning material is needed to clean the machine, which is time and energy consuming and wastes raw materials. The split engineering plastic twin screw extruder can solve this problem. When changing color, it takes only a few minutes to quickly open the barrel for manual cleaning, so that no or fewer cleaning agents can be used, which saves costs.
A pre-heating of the cable core is required for the use of an engineering plastic twin screw extruder. The presence of pores shall not be permitted for the insulating layer, in particular the thin insulating layer. The wire core can be completely removed from the water and oil surface by high-temperature preheating before crushing. In the case of coat extrusion, its main function is to dry the cable core to prevent the possibility of pores in the coat due to moisture (or moisture around the cushion layer). By preheating, the residual pressure of the plastic can also be prevented by discouragement during extrusion. During the plastic extrusion of the processor, preheating can eliminate the large temperature difference that occurs when the cold wire enters the high-temperature nozzle and the nozzle is in contact with the plastic, thereby avoiding the fluctuation of the plastic temperature and causing the fluctuation of the extrusion pressure. This stabilizes the extrusion volume and ensures the extrusion quality. The technical plastic engineering plastic twin screw extruder uses an electric radiator preheating device that requires sufficient capacity and guarantees rapid heating so that the core preheating and drying efficiency of the cable core is high. The pre-heat temperature is limited by the deflection speed and generally corresponds to the temperature of the machine part.
The temperature of the machine part is low and the pressure of the machine part is too high.
engineering plastic twin screw extruder The engineering plastic twin screw extruder used for profile extrusion is usually narrow-meshed and rotates in different directions, but a few also use simultaneous engineering plastic twin screw extruders, which usually work with relatively low screw speed. About ten U/min.
The rapidly combining, simultaneous engineering plastic twin screw extruder is used for composting, venting or as a continuous chemical reactor. The maximum snail speed of this extruder type is 300-600 U/min. The non-interactive extruder is used for mixing, venting, and chemical reaction. Its conveyor mechanism is very different from the interlocking extruder, which is closer to the conveyor mechanism of a single screw extruder.
These are related practices for using engineering plastic twin screw extruders. If you want to get more information about the engineering plastic twin screw extruders, please connect Nanjing JlEYA, and they will tell you more about it.
The plastic extruder is a common plastic machinery equipment, in the process of the daily operation of the extruder, the extruder will have a variety of failures, affecting the normal production of plastic machinery, the following we will analyze the extruder failure.
Here is the content list:
Unstable host current
The main motor can not start
The head is not discharged smoothly or blocked
The main electric starting current is too high
The main motor makes an abnormal sound
1. Production reasons.
(1) Uneven feeding.
(2) The main motor bearing of the plastic extruder is damaged or poorly lubricated.
(3) A section of the heater is out of order and does not heat up.
(4) The screw adjustment pad is not correct, or the phase is not correct, and the component interferes.
2. Treatment methods.
(1) Check the feeder, troubleshooting.
(2) Overhaul the main motor of the plastic extruder, replace the bearings if necessary.
(3) Check whether each heater is working properly, replace the heater if necessary.
(4) Check the adjustment pad, pull out the screw to check whether there is interference with the screw.
1. Causes.
(1) There is a mistake in the start-up procedure of the plastic extruder.
(2) The main motor thread has a problem, whether the fuse is burned ring.
(3) The main motor-related chain device to function
2. Treatment methods.
(1) Check the program, reboot the machine in the correct boot sequence.
(2) Check the main motor circuit.
(3) Check whether the lube oil pump of the plastic extruder is started and check the status of the chain device associated with the main motor. The oil pump is not on and the motor cannot be turned on.
(4) The inverter induction power has not been discharged. Turn off the main power and wait for 5 minutes before starting again.
(5) Check whether the emergency button is reset.
1. Causes.
(1) A section of the heater does not work, and the material is not plasticized well.
(2) The operating temperature setting is low, or the molecular weight distribution of plastic is wide and unstable.
(3) There may be foreign substances that do not melt easily.
2. Treatment methods.
(1) Check the heater of the plastic extruder and replace it if necessary.
(2) Verify the set temperature of each section, and if necessary, consult with the technician to increase the temperature setting.
(3) Clean and check the extrusion system and the head.
1. Causes.
(1) Insufficient heating time and high torque.
(2) A section of the heater does not work.
2. Treatment methods.
(1) Apply hand pan machine when starting, if not easy, extend the heating time or check whether each section heater is working properly.
1. Produced by.
(1) The main motor bearing of the plastic extruder is damaged.
(2) The main motor silicon controlled rectifier line in silicon controlled damage.
2. Treatment methods.
(1) Replace the main motor bearings.
(2) Check the silicon-controlled rectifier circuit, if necessary, replace the silicon-controlled components.
Our company's website is https://www.njjyextrusion.com/. If you still have questions, you can contact us on the official website.
As common extruder equipment used in the plastic processing industry, single screw extruder is mainly used for extruding soft and hard PVC, polyethylene, and other thermoplastics, which can process many kinds of plastic products, such as blown film, extruded pipe, pressboard, drawn ribbon, etc. It can also be used for melt pelletizing. The plastic extruder has advanced design, high quality, good plasticization, low energy consumption, involute gear transmission, low noise, smooth operation, high load capacity, and long life. To have a long service life of the machine, maintenance measures are indispensable, the following is a detailed description of the single-screw extruder maintenance measures.
Here is the content list:
Daily maintenance.
Regular maintenance.
1. Because the electrical control system of single-screw extruder has high requirements for ambient temperature and dustproof, the electrical system should be separated from the production site, and install ventilation or ventilation fan, it is recommended that the electrical control cabinet in a simple room, keep the room clean, ventilation, so that the indoor temperature is not higher than 40 ℃.
2. Single-screw extruderis not allowed to run empty, so as not to roll the screw and machine simple hair. Host start idling is not allowed to exceed 100r / min; start the host first low speed, after starting the host to check for abnormal noises and then slowly increase the host speed to within the allowable range of the process (can be adjusted to the best state is good). When the new machine is breaking in, the current load should be at 60-70%, and the current in normal use should preferably not exceed 90%. Note: If an abnormal sound occurs when the extruder is running, it should be stopped immediately for inspection or repair.
3. Turn on the oil pump first and turn off the oil pump after shutting down the machine; keep the water pump working during the whole production process and do not stop the pump to avoid the barrel temperature rising and causing the material in the barrel to decompose and carbonize; the asbestos wind cover of the main motor fan needs to be cleaned often to avoid the dust sticking too much to block the wind cover and cause the motor to overheat and trip due to insufficient heat dissipation.
4. Clean up the dust and dirt, tools, and debris on the surface of the unit in time.
1.Regularly check the screws and other fasteners on the surface of the single-screw extruder unit for looseness and timely and proper tightening. The lubricant level of the transmission box should be added or replaced promptly (the dirt at the bottom of the oil tank should be cleaned regularly). For new machines generally, 3 months to replace the oil, after that every six months to a year. The oil filter and oil suction pipe should be cleaned regularly (once a month).
2. Single screw extruder gearbox maintenance and general standard reducer are the same. The main thing is to check the wear and failure of gears and bearings.
3, When reinstallation please note that A, B two screws must be in the original position, can not be replaced! After the installation of the new combination of the screw on the machine, you must first use the hand pan car, such as normal rotation before the low-speed start. Screw or barrel for a long time without use, there should be anti-rust and anti-fouling measures, the screw should be placed hanging. If the threaded block is with fire, the flame should be moved left and right, while burning to clean up, and can not burn too much (blue ringers red), not to mention the thread block into the water.
4. Regularly calibrate the temperature control instrument to check the correctness of its adjustment and the sensitivity of its control.
5. In the barrel with a cooling water tank, must be used distilled water to prevent the formation of scale blocking the cooling water channel in the barrel, resulting in temperature failure. Pay attention to the appropriate amount of water in use to prevent scaling. If the blockage should be changed down the cylinder specific maintenance, no blockage and the water output is small indicates that there is scale, the tank water should be changed to dilute hydrochloric acid swishing cycle, clear scale to normal and then change the distilled water. General water in the tank is used to cool the barrel, and the natural water we pass is used to cool the tank. Regularly check the water quality of the cooling water tank, if there is turbidity, should be replaced promptly.
6.Check whether the solenoid valve is working properly, the coil has not burned out if there is a timely replacement.
7. The temperature does not rise to quite the temperature continues to rise and fall may exist for the following reasons: whether the day electric couples loose fall; heater relay is working properly; solenoid valve is working properly, timely replacement of deformation of the heater, and tighten the screws.
8. Timely clean up the dirt in the vacuum tank, and the material in the exhaust chamber so that the pipeline is smooth. Vacuum pump seals need to be replaced promptly if there is wear and tear regular inspection, the output shaft jumping is bearing damage and shaft fracture must be opened and replaced, such as the gearbox two output shaft bearing position wear is too serious, the box must be replaced to avoid greater loss of failure.
9, To drive the screw rotation of the DC motor to focus on checking the brush wear and contact, the insulation resistance value of the motor whether in the specified value should also be measured frequently. In addition, check the connection line and other components that are rusted, and the use of protective measures.
10. When the single-screw extruder needs to stop using for a long time, should be in the screw, Jane, the head, and other working surfaces coated with anti-rust grease. The small screw should be suspended in the air or placed in a special wooden box, and a wooden block pad flat, so as not to deform the screw or bruise.
11. Single-screw extruder attached to the cooling water pipe wall is prone to scale external corrosion and rust. Maintenance should be carefully checked, too much scale will block the pipeline, can not achieve the cooling effect, rust will be serious leaks, so maintenance must take descaling and anti-corrosion cooling measures.
12. Designate a person responsible for the maintenance of equipment. And each maintenance and repair detailed record is included in the plant equipment management files.
If you still have questions, you can consult our company, we are happy to answer for you. The company insists on the purpose of "quality first, customer first", and warmly welcomes new and old customers to cooperate with us.
The twin screw extrudernot only has the characteristics of a single-screw extruder, but also has the advantages of convenient feeding, stable extrusion, and convenient exhaust. It is widely used in the production and processing of extruded products.
Why are twin screw extruders warmly welcomed now?
Choose a single-screw extruder or a twin screw extruder?
What are the technical points of the twin screw extruder?
Why are twin screw extruders warmly welcomed now?
The twin screw extruder can not only add more ingredients to the company's products, but also can choose to quickly complete the manufacturing. Considering that "new crown pneumonia" has put every industry into trouble, the market has been looking for a quick turnaround to pay for healthy food. In addition, you may need to make up for the loss of production and sales or increase production and sales based on the current situation. Twin-screw extension can help you, and considering the lower cost and higher production and sales, it can bring more profits.
Choose a single-screw extruder or a twin screw extruder?
The single-screw extruder is used for extrusion processing technology and equipment, and the particle raw materials stay in the extruder for a long time. This means that a single-screw extruder requires a longer period than a twin screw extruder to produce the products required by the enterprise. In addition, the twin screw extruder allows you to better control the complex operation process and actual operation. As everyone knows, these controls are much more complicated. This is very important for foods that need to be mixed and mixed. The production and manufacturing facilities are complete, and the actual effect of twin-screw extrusion is the best. For polymer materials, twin-screw extrusion is also particularly effective. Considering that the design concept of twin screw extruder has a relatively large flexibility, it can be used in many industries for very specific operation processes.
What are the technical points of the twin screw extruder?

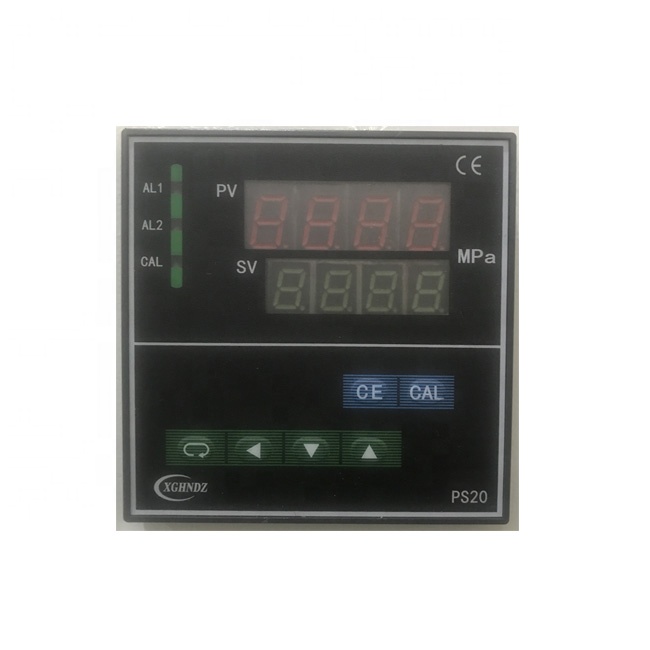

In the extrusion process of the twin screw extruder, the material is transformed from the glass state to the molten state. In addition to the balance between the heat required for plasticization of the material and the amount of heat supplied, the material is melted. Pressure is also a very important control indicator. Because the material is affected by the compression ratio of each section of the die resistance screw during the extrusion process, it does not exist under normal pressure. For different die, the compression ratio of each section of the screw is basically constant and immutable. Under the premise of the same extrusion speed, increase or decrease the feed rate, the volume of the screw material in the feeding section will change, and the volume of the material in the exhaust section will remain unchanged, so the compression section of the feeding section changes with the compression ratio, and its melt pressure follows Increase or decrease; under the premise of the same feed rate, increase or decrease the extrusion rate, the volume of the screw material in the feeding section will also change. The volume of the material in the exhaust section remains unchanged, so the compression section of the feed section changes with the compression ratio, and its melt pressure increases or decreases accordingly; the feed speed increases or decreases simultaneously with the extrusion speed, because the volume of the screw material in the feed section remains unchanged , Only due to the increase or decrease of the speed, the melt pressure change.
Due to different fields and different types of twin screw extruder, they are widely used in many industries. To meet these growing demands, Nanjing JlEYA has committed to providing the increasing of twin screw extruder.
