The engineering plastic twin screw extruder was developed based on a single screw extruder. Due to its good feed performance, mixing and plasticization performance, suction performance, and extrusion stability, it is often used in extruded products.
What are the advantages of engineering plastic twin screw extruders?
What role do pre-heaters play in the use of engineering plastic twin screw extruders?
What is the reason for the "fault" of the exhaust air opening of the engineering plastic twin screw extruder?
1. wear
By simply opening the engineering plastic twin screw extruder, the wear level of the threaded parts and the inner sockets of the cylinder can be determined at any time, so that we need to carry out effective maintenance or exchange. It is not detected if there is a problem with the extruded product causing unnecessary waste.
2. Reduce production costs
When a engineering plastic twin screw extruder is made of technical plastic Masterbatch, it is often necessary to change the color. It is necessary to change the product.
Simply open the open editing area within a few minutes. In addition, the mixing process can be performed by observing the melting profile on the entire screw. analysis. When changing the color of an ordinary engineering plastic twin screw extruder, a large amount of cleaning material is needed to clean the machine, which is time and energy consuming and wastes raw materials. The split engineering plastic twin screw extruder can solve this problem. When changing color, it takes only a few minutes to quickly open the barrel for manual cleaning, so that no or fewer cleaning agents can be used, which saves costs.
A pre-heating of the cable core is required for the use of an engineering plastic twin screw extruder. The presence of pores shall not be permitted for the insulating layer, in particular the thin insulating layer. The wire core can be completely removed from the water and oil surface by high-temperature preheating before crushing. In the case of coat extrusion, its main function is to dry the cable core to prevent the possibility of pores in the coat due to moisture (or moisture around the cushion layer). By preheating, the residual pressure of the plastic can also be prevented by discouragement during extrusion. During the plastic extrusion of the processor, preheating can eliminate the large temperature difference that occurs when the cold wire enters the high-temperature nozzle and the nozzle is in contact with the plastic, thereby avoiding the fluctuation of the plastic temperature and causing the fluctuation of the extrusion pressure. This stabilizes the extrusion volume and ensures the extrusion quality. The technical plastic engineering plastic twin screw extruder uses an electric radiator preheating device that requires sufficient capacity and guarantees rapid heating so that the core preheating and drying efficiency of the cable core is high. The pre-heat temperature is limited by the deflection speed and generally corresponds to the temperature of the machine part.
The temperature of the machine part is low and the pressure of the machine part is too high.
engineering plastic twin screw extruder The engineering plastic twin screw extruder used for profile extrusion is usually narrow-meshed and rotates in different directions, but a few also use simultaneous engineering plastic twin screw extruders, which usually work with relatively low screw speed. About ten U/min.
The rapidly combining, simultaneous engineering plastic twin screw extruder is used for composting, venting or as a continuous chemical reactor. The maximum snail speed of this extruder type is 300-600 U/min. The non-interactive extruder is used for mixing, venting, and chemical reaction. Its conveyor mechanism is very different from the interlocking extruder, which is closer to the conveyor mechanism of a single screw extruder.
These are related practices for using engineering plastic twin screw extruders. If you want to get more information about the engineering plastic twin screw extruders, please connect Nanjing JlEYA, and they will tell you more about it.
The single-screw extruder has a simple design and a low price, so it is widespread and demand on the market was high.
What are the application areas and benefits of single-screw extruders?
What is the development history of the single-screw extruder?
What are the main technical parameters of the single-screw extruder?
The single-screw extruder is mainly used for extruding soft and hard polyvinyl chloride, polyethylene, and other thermoplastic. It can process a variety of plastic products such as films, tubes, plates, tapes, etc., can also be used for granulation.
The single-screw extruder is characterized by advanced design, high quality, good plasticization, and low energy consumption. It uses an evolutionary drive that is characterized by low noise development, stable operation, high load capacity, and long service life.
The single-screw extruder is one of the most important devices for the processing of plastic molding parts. It uses external energy transfer and heat transfer of external heating elements to carry out the transport of plastics solids, compaction, melting, shielding, and extrusion forms.
Since the birth of the snail extruder, it has evolved from an ordinary snail extruder to a new type of snail extruder after almost a hundred years of development. Although there are many types of new single-screw extruders, the extrusion machine is the same.
The extrusion process of the traditional snail extruder is realized by heating outside the cylinder, solid and cylinder, snail friction, and melting shear force.
"friction coefficient" and "friction force", "viscosity" and "shear tension" are the main factors influencing the performance of conventional screw extruders. The extrusion process from the machine is unstable and difficult to control, especially for some heat-sensitive plastics with poor thermal stability and high viscosity.
1. Screw diameter: refers to the diameter of the outer circle of the screw, marked with D, and the unit is millimeter (mm).
2. Proportion of screw length to diameter: refers to the ratio of the length L of the working part of the screw (the length of the threaded part, i.e. the length from the center line of the feed opening to the end of the screw) and the screw diameter D, expressed by L/D.
3. Snail speed range: refers to the highest speed of the snail up to the lowest speed of the snail; n is used to represent the speed of the snail, and the unit is revolutions per minute (U/min).
4. The power of the main screw drive engine: expressed by P, the unit is kilowatt (kW).
5. Heating performance of the extruder cylinder: expressed by E is the unit kilowatt (kV).
6. The output capacity of the extruder: expressed by Q, the unit is kilogram per hour (kg/h).
7. The height of the extruder rim: refers to the distance from the center line of the screw to the ground, expressed by H, and the unit is millimeters (mm).
8. Extruder outer dimensions: refers to total length (x) total width (x) total height expressed by L x B x H, and the unit is millimeters or meters (m m or m)
9. Extruder quality: expressed in W, the unit is kilogram or tonne (kg or t).
We can see the huge role that single-screw extruders play in the production industry, and they have become indispensable components. And Nanjing JlEYA a Chinese pioneer in single-screw extruder production,has committed to providing the most suitable single-screw extruder at a reasonable price, and whatever it takes to satisfy the customer’s needs.
The twin screw extruder has the basic principles of single-screw extruder: solid conveying, melt pressurization and pumping, mixing and stripping and evaporation, but it is not limited to this. The development of twin screw extrusion theory is relatively late, coupled with its wide variety, messy screw shape, and messy extrusion process, which brings many difficulties to the research. And the following words will give you a brief introduction about the information of the twin screw extruder.
What is the future research direction of twin screw extruder?
What is the basic principle of a twin screw extruder?
What is the difference between a twin screw extruder and a traditional extruder?
1. Established the physical model and mathematical model of the twin screw extruder to guide the design of the twin screw extruder and the optimization of the extrusion process.
2. It is necessary to understand the relationship between the true state change, the mixing form, the whole process of the structure change and the later mixing and characteristics of two or more polymers and materials during the entire extrusion process.
3. As a twin screw extruder, it establishes the internal connection between the entire reaction process, speed and characteristics of the extrusion reaction molding and the screw structure and operating conditions. It can be extruded through reaction molding.
The twin screw extruder has the basic principles of single-screw extruder: solid conveying, melt pressurization and pumping, mixing and stripping and evaporation, but it is not limited to this. The development of twin screw extrusion theory is relatively late, coupled with its wide variety, messy screw shape, and messy extrusion process, which brings many difficulties to the research.
Generally speaking, the research of twin-screw extrusion theory is still in the development link, which is called "technology more than science". From the perspective of the entire extrusion process of a twin screw extruder, there are about three parts: the polymer's physical state change rule during the extrusion process, the basic principle of conveying, the conveying of solid melt, the exhaust phase and the law, and the establishment of mathematics The physical model is used to guide the planning of the twin screw extruder and the optimization of the extrusion system process.
The traditional extrusion molding process requires rotating a giant screw in the barrel. When using twin screw extrusion, the two screws mesh with each other and rotate together during the extrusion operation. They are installed in the housing on the spline shaft of the barrel. The twin screw extruder can simultaneously ensure food molding, heating, cooling, compression, mixing, pumping and even transportation.
At present, twin screw extruder has become the most common extruder with the largest variety and specifications in the world. Nanjing JlEYA has committed to fulfilling all the requirements of twin screw extruders. And it welcomes global customers to purchase.
Plastic extruders can be divided into single-screw extruders, twin-screw extruders, and multi-screw extruders according to their number of screws. The following are the details of the types of plastic extruders.
Here is the content list:
Classification of plastic extruders
Single-screw extruder
Twin-screw extruder
Classification of plastic extruders
1, According to the number of screws, divided into single-screw extruders, twin-screw extruders, and multi-screw extruders.
2, According to the presence or absence of a screw in the extruder, divided into screw extruders and plunger extruders.
3, According to the running speed of the screw to divide:
Ordinary extruder: speed below 100r/min.
High-speed extruder: speed of 100 to 300r/min.
Super high-speed extruder: the speed is 300~l500r/min.
4, According to the extruder assembly structure classification: there are integral extruders and separate extruders.
5, According to the spatial position of the screw in the extruder, can be divided into the horizontal extruder and vertical extruder.
6, According to whether the extruder is in the process of exhaust and can be divided into exhaust type extruder and non-exhaust type extruder
Single-screw extruder
The single-screw extruder occupies an important position both as a plasticizing and pelletizing machine and as a molding machine, and in recent years, the single-screw extruder has developed greatly. Single-screw extruders were the first extruders to gain widespread application in the plastic processing and molding field due to their simple structure and high processing efficiency. Similarly, to meet different processing needs, various equipment manufacturers have explored various screw and barrel structures. The single-screw extruder has evolved from the basic pure screw structure to various structures such as damping screw block, exhaust extrusion, slotted screw barrel, pinned barrel, building block structure, etc., thus enabling the single-screw extruder to have a wider range of molding.
Due to the small footprint of single-screw extruders, they are almost the only equipment used in the compounding and blown film fields. Single-screw extruder technology has become an important part of the extrusion process market that cannot be ignored.
Twin-screw extruder
The twin-screw extruder has less heat generated by friction, more uniform shearing of the material, larger conveying capacity of the screw, more stable extrusion volume, long stay of the material in the barrel, and uniform mixing.
The twin-screw extruder has good feeding characteristics, is suitable for powder processing, and has better mixing, exhaust, reaction, and self-cleaning functions than the single-screw extruder, characterized by the processing of plastics with poor thermal stability and co-mingled materials show its superiority. Based on the twin-screw extruder, the multi-screw extruder was developed for easier processing of co-blends with poor thermal stability.
If you want to buy an extruder, you can consider our cost-effective products. Nanjing JlEYA is the leading manufacturer extruder manufacturer specializing in a twin-screw extruder, mini twin screw extruder, plastic extruder, and parallel twin-screw extruder in China, which is widely used in compounding, modification, polymerization, after 17 years of development, now we have 20,000 square meters workshop with annual sales over 300+ sets, export over 60 countries.
The structure of the engineering plastic twin screw extruder barrel is basically similar to that of the single-screw extruder screw barrel. From the appearance structure, the twin-screw extruder barrel is also divided into an integral barrel and a segmented barrel. The engineering plastic twin screw extruder is an upgrade of the single screw extruder, which has also greatly improved the efficiency of use.
What are the reasons why people choose engineering plastic twin screw extruder?
What is the workflow of engineering plastic twin screw extruder?
What are the essential devices in the engineering plastic twin screw extruder?
1. Improve labor efficiency
When the equipment is repaired, engineering plastic twin screw extruder only needs to loosen a few bolts, turn the worm gear box handle device to lift the upper part of the barrel to open the entire barrel, and then perform repairs. This not only shortens the maintenance time, but also reduces the labor intensity.
2. High torque and high speed
The development trend of engineering plastic twin screw extruder in the world is towards high torque, high speed, and low energy consumption. The effect of high speed is high productivity. engineering plastic twin screw extruder belongs to this category, and its speed can reach 500 rpm. Therefore, it has unique advantages in processing high-viscosity, heat-sensitive materials.
3. Wide range of applications
engineering plastic twin screw extruder has a wide range of applications and can be applied to the processing of a variety of materials
4. High output, high quality
engineering plastic twin screw extruder has other advantages of ordinary extruder, and can achieve high output, high quality and high efficiency.
The engineering plastic twin screw extruder used for profile extrusion is usually tightly meshed and rotated in different directions, although a few also use co-rotating twin screw extruders, generally operating at a relatively low screw speed, about 10 r/ min. The high-speed meshing co-rotating engineering plastic twin screw extruder is used for compounding, venting or as a continuous chemical reactor. The maximum screw speed of this type of extruder is 300-600r/min. Non-intermeshing extruder is used for mixing, venting and chemical reaction. Its conveying mechanism is quite different from intermeshing extruder, which is closer to the conveying mechanism of single screw extruder, although there are essential differences between the two.
Among the straightening devices used in engineering plastic twin screw extruder, the most common one is eccentric, and various types of bending of the core are one of the important reasons for the insulation eccentricity. In sheath extrusion, scratches on the sheath surface are often caused by the bending of the cable core. Therefore, the straightening device in various engineering plastic twin screw extruder is indispensable. The main types of straightening devices are: drum type (divided into horizontal and vertical); pulley type (divided into single pulley and pulley block); winch type, which has multiple functions such as dragging, straightening, and tension stabilization; Press wheel type (divided into horizontal type and vertical type), etc.
The engineering plastic twin screw extruders are used more and more widely in daily life, but its quality has a great influence on the experience of use. Nanjing JlEYA has focused on the production and development of engineering plastic twin screw extruders for more than several years, and they have always put the needs of customers as their top priority.
Today, we loaded 2x40HQ export to Vietnam.

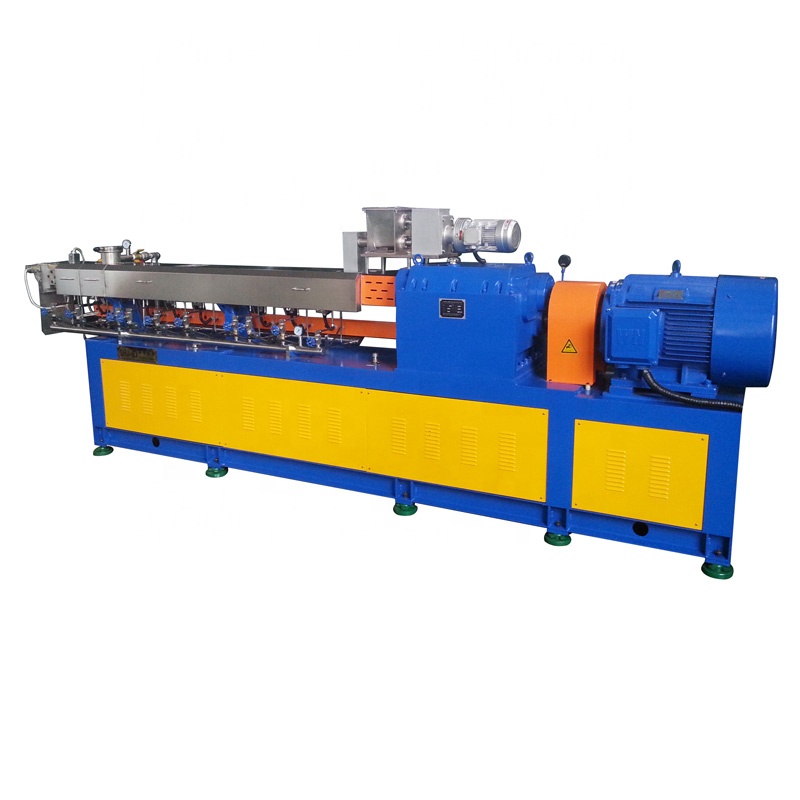

One is SHJ-50 twin screw extruder, the other is SHJ-72 twin screw extruders. Both extruders are used for making filler masterbatch.
Nanjing Jieya is a leading manufacturer of twin screw compounding extruders with over 20 years experience. We will offer you the top quality with best price.
We warmly welcome your inquiry.
Nanjing Jieya is a professional manufacturer of twin screw compounding extruders since 2004. Our extruders series include SHJ series, HT series, JY series, SJ series, etc. Today we will tell you the differences between SHJ series twin screw extruders and HT series high torque twin screw extruders from three main points below:
1. Torque grade
The torque rating grade of our SHJ series twin screw extruder is T/A3≤8 while HT series is 9≤T/A3≤13.5. Our HT series adopt high torque gear box, which is suitable for customers that pursuit high efficiency machines.
2. Power transmission
SHJ series use clutch for power transmission while HT series use torque protector, for example, R+W brand, Bibby brand, etc.
3. Output
The output of HT series twin screw extruder is much higher than SHJ series.
So HT series can further improve the performance of extruders.But surely, price is higher than SHJ series.
The engineering plastic twin screw extruder consists of a transmission device, a feed device, a barrel, and a screw. The function of each component is similar to that of a single-screw extruder. The difference to the single screw extruder is that in the engineering plastic twin screw extruder two parallel snails are arranged in the "cross-section" of the material.
What is the working principle of the engineering plastic twin screw extruder?
How do you treat a engineering plastic twin screw extruder?
Why is the cooling device particularly important when using engineering plastic twin screw extruders?
From the point of view of the principle of movement, the engineering plastic twin screw extruder distinguishes between the straight and uneven, and non-foaming types.
1. Double screw extruder of technical plastic
This type of engineering plastic twin screw extruder has a low speed and a high speed. The former is mainly used for profile extraction, while the latter is used for special polymer processing operations.
(1) Tightly machined extruder. The slow-running extruder has a closely combining screw geometry, in which the spiral antenna shape of one snail closely matches the spiral antenna shape of the other snail, i.e. the conjugated snail shape.
(2) Self-cleaning extruder. The simultaneous high-speed extruder has a closely tuned spiral shape. This type of snail can be executed with a relatively small snail split so that the snail has a closed self-cleaning effect. This type of engineering plastic twin screw extruder is called a compact self-cleaning engineering plastic twin screw extruder.
The gap between the two screw edges of the closely combining, opposing engineering plastic twin screw extruder is very small (much smaller than the gap in the evenly rotating engineering plastic twin screw extruder) so those positive conveying properties can be achieved.
2. Non-reciprocating double screw extruder of technical plastic
The axis distance between the two snails of the non-foaming engineering plastic twin screw extruder is greater than the sum of the radii of the two snails.
1. After using the engineering plastic twin screw extruder for 500 hours, iron chips or other impurities from the gears are in the gearbox. Therefore, the gears should be cleaned and the gear lubricant replaced.
2. The engineering plastic twin screw extruder should carry out a comprehensive inspection of the extruder after an operating period to check the density of all snails.
3. If the double screw extruder is suddenly switched off during production, the main drive, and the heating stops, if the power supply is restored, each section of the cylinder shall be reheated to the specified temperature and kept for a specified period, before you can start the extruder.
4. If the display and the display of the engineering plastic twin screw extruder are full, check if the contact of the thermocouple, etc. is good.
After the molded plastic extrusion layer has left the engineering plastic twin screw extruder, it should be cooled and formed immediately, otherwise, it will deform under the influence of gravity. The cooling method normally uses water cooling and is divided into quick cooling and slow cooling according to the different water temperatures. Fast cooling is the direct cooling by cold water. Rapid cooling is advantageous for the design of the extruded plastic layer, but in the case of crystalline polymers, due to sudden heat cooling, it is easy to leave internal stresses in the extruded layer structure, which leads to cracks during use. Generally PVC The plastic layer is deterred. Slow cooling should reduce the inner tension of the product. Water with different temperatures is given in the cooling water tank to gradually reduce the temperature and shape of the product. The extrusion of PE and PP takes place under slow cooling, i.e. through hot water, hot water, and cold water, which is called three-stage cooling.
Nanjing JlEYA is the leading manufacturer extruder manufacturer specializing in twin screw extrude. If you want to get more information, just go and connect them.
