A twin screw extruder is composed of several parts such as a transmission device, feeding device, barrel, and screw, etc. The role of each part is similar to that of the single screw extruder. So what are the main differences between the twin screw extruder and single screw extruder? The following is the detailed introduction



Here is the content list:

l Cross sectional profile

l The way of material transfer

l The material flow velocity field



Cross sectional profile

The difference from the single screw extruder is that the twin screw extruder has two parallel screws in an "∞" shaped cross section. Twin screw extruders for profile extrusion are usually closely meshed and heterogeneously rotating, although a few also use co rotating twin screw extruders, which generally operate at relatively low screw speeds of about 10 r/min. High speed meshing co rotating twin screw extruders are used for blending, venting, or as continuous chemical reactors, with maximum screw speeds ranging from 300 600 r/min. Non engaging extruders are used for mixing, venting, and chemical reactions, and their conveyors are very different from those of engaging extruders, and are closer to those of single screw extruders, although they are fundamentally different.



The way of material transfer

In the single screw extruder, the solid conveying section is friction dragging and the melt conveying section is viscous dragging. The frictional properties of solid materials and the viscosity of molten materials determine the conveying behavior. If some materials have poor frictional properties, it is more difficult to transfer the material to the single screw extruder if the feeding problem is not solved. In twin screw extruders, especially meshing twin screw extruders, the material transfer is to some extent a positive displacement transfer, the degree of positive displacement depending on the proximity of the screw prongs of one screw to the relative screw grooves of the other screw. The screw geometry of a closely meshed anisotropic rotary extruder yields a high degree of positive displacement transport characteristics.



The material flow velocity field

The flow velocity distribution of the material in a single screw extruder has been described fairly well, whereas the flow velocity distribution of the material in a twin screw extruder is quite complex and difficult to describe. Many researchers have analyzed the velocity field of the material without considering the material flow in the engagement zone, but the results of these analyses are very different from the actual situation. This is because the mixing characteristics and overall behavior of a twin screw extruder depend mainly on the leakage flow that occurs in the engagement zone, yet the flow in the engagement zone is quite complex. The complex flow spectrum of the material in a twin screw extruder exhibits macroscopic advantages that cannot be matched by a single screw extruder, such as adequate mixing, good heat transfer, high melting capacity, good venting capacity, and good control of the material temperature.



If you want to know more, you can consult our company. Nanjing JlEYA is the leading manufacturer extruder manufacturer specializing in a twin screw extruder, mini twin screw extruder, plastic extruder, and parallel twin screw extruder in China, which is widely used in compounding, modification, polymerization, devolatilization, reaction, recycling, etc. After 17 years of development, now we have a 20,000 square meters workshop with annual sales of over 300+ sets, export over 60 countries.



JIEYA has the most experienced technical core team, with extensive experience in system integration of the development manufacturing, materials processing, application technology, and other fields.

The special refining effect and excellent performance of the single screw extruder have been proved in practice. Practice has proved that the reciprocating single-screw mixing extruder is a new type of plastic extrusion equipment. The emergence of single screw extruder provides a high-performance plastic processing equipment for the majority of users. Made a huge contribution to the development of the plastics industry.

• What is the function of the single screw extruder operation screen?

• What is the significance of the emergence of a single screw extruder?

• What are the application fields of single screw extruder?

What is the function of the single screw extruder operation screen?

The operating panel is installed above the single screw extruder and can be rotated within 60 degrees for easy operation. There is a power indicator and emergency stop button on the right side of the touch screen. In an emergency, press the emergency stop button to stop immediately, which is used to protect the safety of the operator and the single screw extruder. The data recording, parameter setting, operation control and other operations of the entire instrument are all completed in this operation screen.

What is the significance of the emergence of a single screw extruder?

In the process of polymer processing, in order to give the polymer certain processing characteristics or to give the product specific use performance, it is often necessary to blend different polymers or blend the polymer with various additives and pigments. The single-screw extruder has the characteristics of uniform shearing, high dispersion, high filling, and stretching of the melt. And it combines the advantages of single and twin screw extruders. The unique working principle, coupled with a complete set of threaded components and supporting equipment, makes it more widely used. On a single screw extruder, it can achieve mixing, Mixing, plasticizing, dispersing, shearing, stretching, degassing, and granulation make the interface area of the melt flow in the machine far larger than the general shear flow.

What are the application fields of single screw extruder?

The reciprocating single-screw mixing extruder is a new type of plastic mixing processing equipment, which is widely used in the filling, blending, modification, crosslinking, grafting, color masterbatch, functional masterbatch, and resistance of various plastics. Production of fuel masterbatch, conductive material, degradable masterbatch, reinforcement, toughening and other special plastic materials.

Blending different types of polymers to obtain brand new polymer alloys with specific uses.

Various mineral fillers are added to the polymer melt to make high-filling materials with excellent performance and low price.

Production of various glass fiber reinforced and flame retardant products, with the addition of glass fiber up to 50%.

It is suitable for the production of various cable sheathing materials, insulating materials, cross-linking materials, semiconductors, shielding materials, and conductive materials.

Production of thermoplastic elastomers and hot melt adhesives.

The single screw extruder is increasingly used in industrial production.Nanjing JlEYA has committed itself to offering the best-suited single screw extruders at a reasonable price, and all that is necessary to meet the needs of the customer.

The plastic extruder is a common plastic machinery equipment, in the process of the daily operation of the extruder, the extruder will have a variety of failures, affecting the normal production of plastic machinery, the following we will analyze the extruder failure.



Here is the content list:

• Unstable host current

• The main motor can not start

• The head is not discharged smoothly or blocked

• The main electric starting current is too high

• The main motor makes an abnormal sound



Unstable host current

1. Production reasons.

(1) Uneven feeding.

(2) The main motor bearing of the plastic extruder is damaged or poorly lubricated.

(3) A section of the heater is out of order and does not heat up.

(4) The screw adjustment pad is not correct, or the phase is not correct, and the component interferes.

2. Treatment methods.

(1) Check the feeder, troubleshooting.

(2) Overhaul the main motor of the plastic extruder, replace the bearings if necessary.

(3) Check whether each heater is working properly, replace the heater if necessary.

(4) Check the adjustment pad, pull out the screw to check whether there is interference with the screw.



The main motor can not start

1. Causes.

(1) There is a mistake in the start-up procedure of the plastic extruder.

(2) The main motor thread has a problem, whether the fuse is burned ring.

(3) The main motor-related chain device to function

2. Treatment methods.

(1) Check the program, reboot the machine in the correct boot sequence.

(2) Check the main motor circuit.

(3) Check whether the lube oil pump of the plastic extruder is started and check the status of the chain device associated with the main motor. The oil pump is not on and the motor cannot be turned on.

(4) The inverter induction power has not been discharged. Turn off the main power and wait for 5 minutes before starting again.

(5) Check whether the emergency button is reset.



The head is not discharged smoothly or blocked

1. Causes.

(1) A section of the heater does not work, and the material is not plasticized well.

(2) The operating temperature setting is low, or the molecular weight distribution of plastic is wide and unstable.

(3) There may be foreign substances that do not melt easily.

2. Treatment methods.

(1) Check the heater of the plastic extruder and replace it if necessary.

(2) Verify the set temperature of each section, and if necessary, consult with the technician to increase the temperature setting.

(3) Clean and check the extrusion system and the head.



The main electric starting current is too high

1. Causes.

(1) Insufficient heating time and high torque.

(2) A section of the heater does not work.

2. Treatment methods.

(1) Apply hand pan machine when starting, if not easy, extend the heating time or check whether each section heater is working properly.



The main motor makes an abnormal sound

1. Produced by.

(1) The main motor bearing of the plastic extruder is damaged.

(2) The main motor silicon controlled rectifier line in silicon controlled damage.

2. Treatment methods.

(1) Replace the main motor bearings.

(2) Check the silicon-controlled rectifier circuit, if necessary, replace the silicon-controlled components.



Our company's website is https://www.njjyextrusion.com/. If you still have questions, you can contact us on the official website.

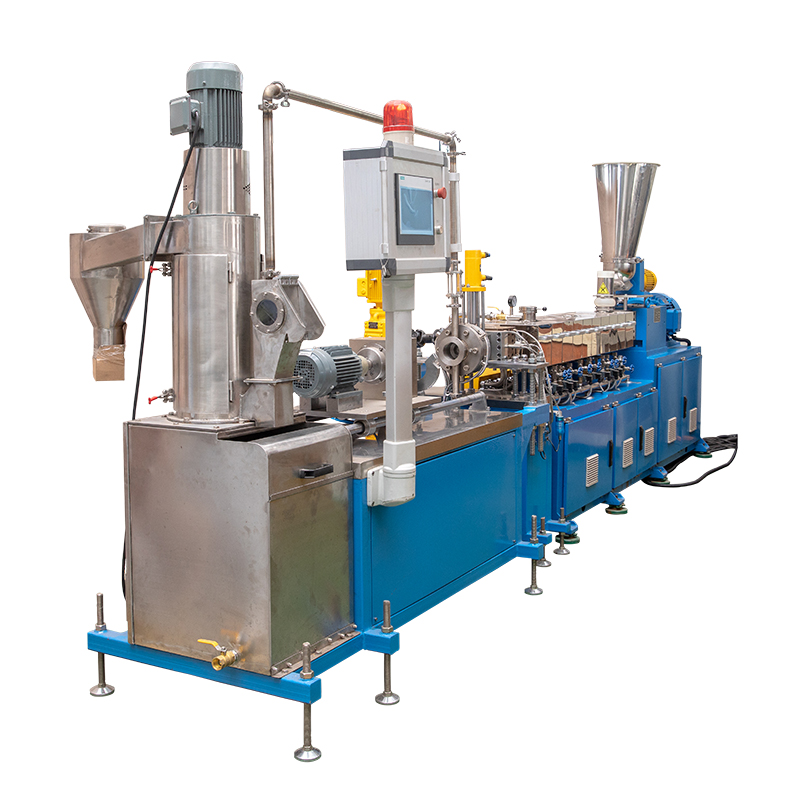

With the development of modern industry, the underwater pelletizing machine has become an important production equipment used in all aspects of production.

• What is the working principle of the underwater pelletizing machine?

• What is the operating procedure of the underwater pelletizing machine?

• What are the reasons why people choose underwater pelletizing machine?

What is the working principle of the underwater pelletizing machine?

The material using the underwater pelletizing machine will pass through the feeding port, and under the action of the rotating screw, it will be rolled into a dough and roll forward along the screw groove. Due to the shear, compression and agitation of the screw, the material will be further mixed and plasticized. , The temperature and pressure gradually increase, showing a state of viscous flow, and passing through the machine head with a certain pressure and temperature, and finally a product of the desired shape is obtained.

What is the operating procedure of the underwater pelletizing machine?

(1) Check the rotation direction of the impeller of the underwater pelletizing machine. From the feed inlet, the impeller should turn counterclockwise, otherwise the motor connection should be adjusted.

(2) The starting sequence of the underwater pelletizing machine and the material conveying equipment is as follows:

Discharge belt conveyor→PL vertical impact crusher→feeding belt conveyor

The crusher must be started without load, and the material can only be fed after the crusher is running normally.

(3) The feed size is strictly in accordance with the feed size specified by the various models. It is forbidden to enter the underwater pelletizing machine with the size of the material larger than the specified size, otherwise it will cause the impeller imbalance and excessive wear of the impeller, and even block the impeller flow path and The central feed pipe prevents the crusher from working normally. When a large piece of material is found, it should be removed in time.

(4) When the discharge belt conveyor stops running, the feeding should be stopped immediately, so the discharge belt conveyor should be interlocked with the feeding system to open and stop. Otherwise, the impeller will be crushed and the motor will be burnt.

(5) The feeding of the underwater pelletizing machine should be uniform and continuous.

(6) During the operation of the underwater pelletizing machine, there must be no violent vibration or abnormal noise, otherwise, it should be stopped immediately for inspection, and the machine can only be driven in order after the fault is removed.

(7) The observation door should be sealed tightly during the working process of the underwater pelletizing machine.

What are the reasons why people choose underwater pelletizing machine?

The difference between the underwater pelletizing machine and other similar products is that it has a steady stream of water flowing through the mold surface, and it is in direct contact with the mold surface. The size of the pelletizing chamber is just enough to allow the pelletizing knife to rotate freely across the die surface without restricting the temperature of the water flow. The molten polymer has been extruded from the die, and the rotating knife cuts the pellets. And then the pellets are taken out of the pelletizing chamber by the temperature-regulated water and enter the centrifugal dryer. In the dryer of the underwater pelletizing machine, the water will be drained back to the storage tank, cooled and recycled; the pellets pass through the centrifugal dryer to remove the water.

This is how we see the irreplaceable role of underwater pelletizing machine in our daily lives and industrial production. Nanjing JlEYA, the pioneer of underwater pelletizing machine producing company in China, knows that every application is special. You can go and get more information about them



The main machine of the plastic extruder is the extruder, which is composed of an extrusion system, transmission system, and heating and cooling system. The following is a detailed description of the composition of the plastic extruder.



Here is the content list:

• Extrusion system

• Drive System

• Heating and cooling device



Extrusion system

A homogeneous melt is plasticized bypassing the plastic through the extrusion system, which consists of a screw, barrel, hopper, head, and die.



Drive System

The function of the drive system is to drive the screw, supplying the torque and speed required by the screw during the extrusion process, usually consisting of an electric motor, reducer, and bearings.

The manufacturing cost of the reducer is roughly proportional to its size and weight, provided that the structure is the same. Because the shape and weight of the reducer are large, it means that more materials are consumed in the manufacturing, and the bearings used are also larger, which increases the manufacturing cost.

For a similar screw diameter extruder, the high speed and high potency extruder consume additional energy than the traditional extruder, the motor power is doubled, and also the reducer seat range is raised consequently is critical，however a high screw speed means that an occasional reduction magnitude relation. For the same size reducer, the gear modulus of the low reduction ratio increases compared to the large reduction ratio, and the capacity of the reducer to bear the load also increases. Therefore, the rise in volume and weight of the reducer isn't linearly proportional to the rise in motor power. If the extrusion volume is employed because of the divisor and dividend by the burden of the reducer, the high speed and high potency extruder can have a smaller range and the normal extruder will have a larger number.

In terms of unit output, the small motor power and the small weight of the reducer of the high speed and high-efficiency extruder means that the manufacturing cost per unit output of the high speed and high-efficiency extruder is lower than that of the normal extruder.



Heating and cooling device

Heating and cooling are necessary to enable the plastic extrusion process to proceed.

(1) Extruders usually use electric heating, which is divided into resistance heating and induction heating, with heating sheets installed in each part of the body, neck, and head. The heating device heats the plastic inside the barrel from the outside to warm it up to the temperature required for the process operation.

(2) The cooling device is installed to ensure that the plastic is in the temperature range required for the process. Specifically, it is to exclude the excess heat generated by the shear friction of the rotating screw to avoid the plastic from decomposing, scorching, or shaping difficulties due to the high temperature. Barrel cooling is divided into two kinds of water-cooled and air-cooled, generally small and medium-sized extrusion machine using air-cooled is more appropriate, large is more water-cooled or a combination of two forms of cooling; screw cooling is mainly used in the center of water-cooled, the purpose is to increase the rate of solid material delivery, stabilize the amount of rubber, while improving product quality; but the cooling at the hopper, one is to strengthen the role of solid material delivery, to prevent the plastic grain sticky blockage because of the heating the second is to ensure the normal work of the transmission part.



If you are engaged in the industry related to the extruder, you can consider our cost-effective products. Our company is a leading extruder manufacturer specializing in a twin-screw extruder, micro twin-screw extruder, plastic extruder, and parallel twin-screw extruder in China.

PVC compounding extruder is divided into RPVC pipe and SPVC pipe, RPVC pipe is easy to cut, welding, bonding, heating can be bent and therefore very easy to install and use. SPVC pipe has excellent chemical stability excellent electrical insulation and good flexibility and colorability this pipe is often used to replace rubber pipe to transport liquid and corrosive media also used as cable casing and wire insulation pipe, etc. So how do choose raw materials and the operation of PVC compounding extruder? The following is a detailed introduction



Here is the content list:

• Raw material selection

• Safety operating procedures



Raw material selection

PVC compounding extruder in the production of hard pipe resin should be selected from the lower polymerization degree of SG-5 resin polymerization degree of the higher its physical and mechanical properties and heat resistance is better, but the resin liquidity is poor to bring some difficulties in processing, so generally choose viscosity of 1.7 ~ 1.8 × 10-3Pa-s SG-5 resin is appropriate. Hard pipe generally uses lead-based stabilizers whose thermal stability is good commonly used trisodium lead but its lubricity is poor usually and good lubricity of lead, barium soap type and use. Processing hard tube lubricant selection and use are very important to consider both internal lubrication to reduce intermolecular forces to reduce the viscosity of the melt are conducive to molding and to consider external lubrication to prevent the melt and hot metal adhesion to make the product surface shiny. Internal lubrication is generally used metal soap type external lubrication with low melting point wax. Filler mainly with calcium carbonate and barium barite powder calcium carbonate to make the pipe surface performance of good barium can improve the molding of the pipe easy to shape both can reduce costs but the amount of too much will affect the performance of the pipe pressure pipe and corrosion-resistant pipe is best not to add or add less filler.



Safety operating procedures

1. Personnel without induction test and operation training cannot operate the extruder independently. 

2. People who have poor eyesight and slow response can not be on duty to operate. 

3. Before starting the machine to do a good job of environmental health around the PVC compounding extruder equipment, equipment around the pile of items not related to production. 

4. Check the safety settings of the extruder before production for damage and test whether it can work effectively. Check whether the connection bolts are loose and whether the safety guards are firm. 

5. Check the lubrication parts, remove the dirt, and refill the lubricant. 

6. PVC compounding extruder barrel and die heating constant temperature time to ensure that the material temperature does not reach the process requirements when driving production. 

7. Before starting the screw drive motor to use the hand plate support V pulley, should be flexible rotation, no blocking phenomenon; then start the lubricating oil pump work 3min before starting the screw rotation at low speed. 

8. Screw airlift time should not exceed 2 ~ 3min. 

9. PVC compounding extruder barrel before adding material to check the barrel, hopper, there is no foreign matter; raw materials should be free of metal, sand, and other impurities to Prevent damage to the screw. 

10. The screw starts, the transmission parts work sound normal, the main motor current within the allowable rated value, before allowing the barrel to add material, adding material should first be a small amount of evenly added material. 

11. When adjusting the die gap or clearing the dirty material, the operator should wear gloves and not face the barrel and die to prevent the molten material from spraying out of the die and scalding the body. 

12. Extruder driving operation is not allowed to repair, and no one is allowed to do any work on the equipment at this time. 

13. In case of the following phenomena, should be an emergency stop. 

Bearing parts of the high temperature, lubricating oil (grease) out; motor odor, smoke, or shell temperature is too high; speed box lubricating oil temperature, smoke; transmission parts emit irregular abnormal sound; machine work produces violent vibration; screw suddenly stop rotating.

14. PVC compounding extruder equipment on the safety cover and the location of the safety alarm device is not allowed to change at will, not to mention artificially caused by the malfunction. 

15. Find that the equipment leakage, oil leakage phenomenon should be timely maintenance troubleshooting, no water, oil flow around the machine.



If you have questions about how to use the PVC composite extruder, you can contact us on the official website. We are happy to answer for you.

Nanjing JIEYA hereby sincerely invited you to attend 2021  China (Hainan) Degradation Exhibition.

Our booth no.: B06

Time: June 23-25

Add: Hainan International Convention and Exhibition Center

We warmly welcome your coming and look forward to cooperate with you ;)

A twin screw extruder is composed of several parts such as a transmission device, feeding device, barrel, and screw, etc. The role of each part is similar to that of the single screw extruder. So what are the main differences between the twin screw extruder and single screw extruder? The following is the detailed introduction



Here is the content list:

l Cross sectional profile

l The way of material transfer

l The material flow velocity field



Cross sectional profile

The difference from the single screw extruder is that the twin screw extruder has two parallel screws in an "∞" shaped cross section. Twin screw extruders for profile extrusion are usually closely meshed and heterogeneously rotating, although a few also use co rotating twin screw extruders, which generally operate at relatively low screw speeds of about 10 r/min. High speed meshing co rotating twin screw extruders are used for blending, venting, or as continuous chemical reactors, with maximum screw speeds ranging from 300 600 r/min. Non engaging extruders are used for mixing, venting, and chemical reactions, and their conveyors are very different from those of engaging extruders, and are closer to those of single screw extruders, although they are fundamentally different.



The way of material transfer

In the single screw extruder, the solid conveying section is friction dragging and the melt conveying section is viscous dragging. The frictional properties of solid materials and the viscosity of molten materials determine the conveying behavior. If some materials have poor frictional properties, it is more difficult to transfer the material to the single screw extruder if the feeding problem is not solved. In twin screw extruders, especially meshing twin screw extruders, the material transfer is to some extent a positive displacement transfer, the degree of positive displacement depending on the proximity of the screw prongs of one screw to the relative screw grooves of the other screw. The screw geometry of a closely meshed anisotropic rotary extruder yields a high degree of positive displacement transport characteristics.



The material flow velocity field

The flow velocity distribution of the material in a single screw extruder has been described fairly well, whereas the flow velocity distribution of the material in a twin screw extruder is quite complex and difficult to describe. Many researchers have analyzed the velocity field of the material without considering the material flow in the engagement zone, but the results of these analyses are very different from the actual situation. This is because the mixing characteristics and overall behavior of a twin screw extruder depend mainly on the leakage flow that occurs in the engagement zone, yet the flow in the engagement zone is quite complex. The complex flow spectrum of the material in a twin screw extruder exhibits macroscopic advantages that cannot be matched by a single screw extruder, such as adequate mixing, good heat transfer, high melting capacity, good venting capacity, and good control of the material temperature.



If you want to know more, you can consult our company. Nanjing JlEYA is the leading manufacturer extruder manufacturer specializing in a twin screw extruder, mini twin screw extruder, plastic extruder, and parallel twin screw extruder in China, which is widely used in compounding, modification, polymerization, devolatilization, reaction, recycling, etc. After 17 years of development, now we have a 20,000 square meters workshop with annual sales of over 300+ sets, export over 60 countries.



JIEYA has the most experienced technical core team, with extensive experience in system integration of the development manufacturing, materials processing, application technology, and other fields.

The single screw extruder is a special reduction power device designed for plastic and rubber single screw extruder equipment. The reducer is matched with the motor. The gear parts are made of high-strength alloy steel. The gears are processed by carburizing, quenching, and high-precision gear grinding. The gear accuracy is level 6, and the tooth surface hardness is HRC58-62.

• What is the principle of single screw extruder?

• What is the current industry development of single screw extruder?

• What should I pay attention to when using single screw extruder?

What is the principle of single screw extruder?

The single screw extruder is generally divided into three sections in effective length. The effective length of the three sections is determined according to the diameter of the screw and the pitch and depth of the screw, which are generally divided into one-third of each; the last thread of the single screw extruder has been called the conveying section. It is required that it cannot be plasticized, but it must be preheated and compressed;

The second section of the single screw extruder is called the compression section. At this time, the volume of the screw groove gradually decreases, and the temperature must reach the degree of plasticization of the material. The compression produced here is from the conveying section three, and here it is compressed to one. Some machines also have Change, the plasticized material enters the third stage;

The third section of the single screw extruder is the metering section, where the material maintains the plasticizing temperature to supply the machine head, which is generally slightly higher than the plasticizing temperature.

What is the current industry development of single screw extruder?

In single screw extruder equipment, the plastic extruder is normally referred to as the main machine and the following equipment, the plastic extruder, is referred to as the auxiliary machine. After more than 100 years of development, the plastic extruder has been derived from the original single-screw extruder, a variety of models such as double-screw, multi-screw and even non-screw models have been derived. The plastic extruder (host) can be used with different plastic moulding machines such as tube, foil, holding material, monofilament, flat wire, strapping, extruding network, plate material, profile material, pelleting, cable coating, etc. are used. Suitable for different plastic extrusion production lines for the production of different plastic products. Therefore, plastic extrusion machines are today and in the future one of the most common models in the plastics processing industry.

What should I pay attention to when using single screw extruder?

(1) The material convey way of the single screw extruder mainly relies on friction, which limits its feeding performance. And it is difficult to add the powder, paste, glass fiber and inorganic fillers, so pay attention to the material used.

(2) When the pressure of the single screw extruder head is high, the reverse flow will increase and the productivity will decrease. Therefore, always pay attention to the pressure of the equipment.

(3) The surface renewal effect of the single screw extruder material in the exhaust zone is small, so the exhaust effect is poor.

(4) single screw extruder is not suitable for certain processes, such as polymer coloring, thermosetting powder processing, etc.

The single screw extruder has achieved an irreplaceable position in industrial production. Nanjing JlEYA is committed to providing various bending and rolling machines of high quality for all customers from all over the world.
