DRIVE SECTION
The drive section of the twin screw extruder consists of 3 parts: motor, clutch, and gearbox.
The reduction and distribution gear unit reduces the motor speed to the screw shaft speed and distributes the input torque to the two output shafts. Clutch is installed between the drive motor and the gearbox drive shaft.
PROCESSING SECTION
The processing section of the twin screw extruder in SHJ series extruder consists of individual barrel sections which are replaceable. Depending on the process tasks, reserve feed port, liquid injection port or twin screw side feed port is available.
Owing to the modular design of the twin screw extruder screw elements and screw barrels, conveying, plasticizing, homogenizing, pressure build-up and devolatilization zones can be established, depending on the process task.
For product intake and conveying, screw elements are used. The extruder can be fed with powder, pellets, chips, melt, paste, etc.
Plasticizing, mixing and dispersing are done by the twin screw extruder kneading elements. By varying the thickness of the kneading disks and their angle of stagger, their mixing, shearing and dispersing action can be adjusted to the individual requirements.
The screw elements are arranged on screw shafts. The co-rotating and closely intermeshing screw shafts have a sealing profile.
The screw barrels are supported by barrel supports. Axial displacement of the processing section resulting from thermal dilatation is absorbed by these supports.
EXTRUSION PART
The discharge section of the twin screw extruder consists of die head and screen changer, which is installed at the end of twin screw extruder discharging direction. There are several types of die heads and screen changers to meet the requirements of different polymers and processing technology.

The basic mechanism of the twin screw extrusion process is simply that a screw rotates in the barrel and pushes the plastic forward. The screw structure is a bevel or ramp wrapped around a central layer, the purpose of which is to increase the pressure to overcome the higher resistance. What do I need to pay attention to when using a twin screw extruder? The following is a detailed description.



Here is the content list:

l Structural principles

l Temperature principles

l Speed reduction principle



Structural principles

For the extruder, there are three kinds of resistance to overcome when working: one is friction, which contains the friction of the solid particles (feed) on the barrel wall and the mutual friction between them during the first few turns of the screw (feed area); the second is the adhesion of the melt on the barrel wall, and the third is the resistance of the internal logistics of the melt when it is pushed forward.

According to Newton's theorem, if an object is at rest in a certain direction, then the object is in a state of equilibrium balance of forces in this direction. For the circumferential movement of the screw, it is no axial motion, that is, the axial force on the screw is in equilibrium. So if the screw exerts a large forward thrust on the plastic melt, it also exerts a backward thrust on another object of the same magnitude but in the same direction. The thrust is exerted on the thrust bearing behind the feed opening. Most single screws have right hand threads, and if viewed from the back, they rotate backward, and they spin backward out of the barrel by rotational motion. In some twin screw extruders, however, the two screws rotate backward and cross each other in both barrels, so one must be right handed and one left handed, and in the case of an occluding twin screw, both screws rotate in the same direction and must therefore have the same orientation. However, in either case, there are thrust bearings that withstand backward forces and still comply with Newton's theorem.



Temperature Principle

Plastics extruded by twin screw extruders are thermoplastics, which melt when heated and solidify again when cooled. Thus, heat is needed during the extrusion process to ensure that the plastic can reach the melting temperature. So where does the heat to melt the plastic come from? First of all, the pound feed preheat and barrel/die heaters may play a role and are very important at startup. In addition, the motor feed energy, the frictional heat generated in the barrel as the motor overcomes the resistance of the viscous melt and turns the screw, is the most important heat source for all plastics, except for small systems, low speed screws, high melt temperature plastics, and extrusion coating applications. In operation, it is important to recognize that the barrel heater is not the primary heat source and that it may play a smaller role in extrusion than we might expect. The post barrel temperature is more important because it affects the rate of solids transport in the dentition or feed. In general, except for a specific purpose (such as varnishing, fluid distribution, or pressure control), the die head and die temperature should be at or near the temperature required for the melt.



Speed reduction principle

In most twin screw extruders, the screw speed is varied by adjusting the motor speed. The drive motor usually turns at a full speed of about 1750 rpm, which is too fast for an extruder screw. If it turns at such a fast speed, too much frictional heat is generated and a uniform, the well mixed melt cannot be prepared because the retention time of the plastic is too short. A typical speed reduction ratio should be between 10:1 and 20:1, with either a gear or pulley set for the first stage, but with a gear and a screw positioned in the center of the last large gear for the second stage. For some slow running machines (eg. twin screws for UPVC), there may be three reduction stages and the maximum speed may be as low as 30 rpm or less (ratio up to 60:1). On the other hand, some very long twin screws for mixing can run at 600 rpm or faster, thus requiring a very low reduction rate and more deep cooling. If the reduction rate is incorrectly matched to the job, too much energy will be wasted. It may be necessary to add a pulley set between the motor and the first deceleration stage where the maximum speed is changed, which either increases the screw speed even beyond the previous limit or reduces the maximum speed. This increases the available energy, reduces the current value, and avoids motor failure, in both cases, the output may increase due to the material and its cooling needs.



If you still have questions, you can consult our company. Nanjing JlEYA is the leading professional manufacturer of twin screw extruders in China.

The twin screw extruder has the basic principles of single-screw extruder: solid conveying, melt pressurization and pumping, mixing and stripping and evaporation, but it is not limited to this. The development of twin screw extrusion theory is relatively late, coupled with its wide variety, messy screw shape, and messy extrusion process, which brings many difficulties to the research. And the following words will give you a brief introduction about the information of the twin screw extruder.

What is the future research direction of twin screw extruder?

What is the basic principle of a twin screw extruder?

What is the difference between a twin screw extruder and a traditional extruder?

What is the future research direction of twin screw extruder?

1. Established the physical model and mathematical model of the twin screw extruder to guide the design of the twin screw extruder and the optimization of the extrusion process.

2. It is necessary to understand the relationship between the true state change, the mixing form, the whole process of the structure change and the later mixing and characteristics of two or more polymers and materials during the entire extrusion process.

3. As a twin screw extruder, it establishes the internal connection between the entire reaction process, speed and characteristics of the extrusion reaction molding and the screw structure and operating conditions. It can be extruded through reaction molding.

What is the basic principle of a twin screw extruder?

The twin screw extruder has the basic principles of single-screw extruder: solid conveying, melt pressurization and pumping, mixing and stripping and evaporation, but it is not limited to this. The development of twin screw extrusion theory is relatively late, coupled with its wide variety, messy screw shape, and messy extrusion process, which brings many difficulties to the research.

Generally speaking, the research of twin-screw extrusion theory is still in the development link, which is called "technology more than science". From the perspective of the entire extrusion process of a twin screw extruder, there are about three parts: the polymer's physical state change rule during the extrusion process, the basic principle of conveying, the conveying of solid melt, the exhaust phase and the law, and the establishment of mathematics The physical model is used to guide the planning of the twin screw extruder and the optimization of the extrusion system process.

What is the difference between a twin screw extruder and a traditional extruder?

The traditional extrusion molding process requires rotating a giant screw in the barrel. When using twin screw extrusion, the two screws mesh with each other and rotate together during the extrusion operation. They are installed in the housing on the spline shaft of the barrel. The twin screw extruder can simultaneously ensure food molding, heating, cooling, compression, mixing, pumping and even transportation.

At present, twin screw extruder has become the most common extruder with the largest variety and specifications in the world. Nanjing JlEYA has committed to fulfilling all the requirements of twin screw extruders. And it welcomes global customers to purchase.

The underwater pelletizing machine is a smart machine with a touch screen, supports touch input, and is equipped with an Android system. The main engine of the underwater pelletizing machine is an extruder, which consists of an extrusion system, a transmission system and a heating and cooling system.

• What are the possible failures of the underwater pelletizing machine and their solutions?

• What are the advantages of the underwater pelletizing machine?

• What are the applicable materials for the underwater pelletizing machine?

What are the possible failures of the underwater pelletizing machine and their solutions?

Cause analysis: underwater pelletizing machine cutter wears excessively or the cutter blade is damaged, the particle water flow is too low, the pelletizer vibration is too large, the cutter and the template are not tightly attached, the material melt index fluctuates, and the discharge flow rate is inconsistent. Excessive water temperature and other reasons can cause the shutdown of the underwater pelletizing system and cause the interlocking shutdown of the entire unit.

Solution: After stopping the underwater pelletizing machine, visually check whether the cutting edge of the cutting knife is excessively worn or damaged. If so, replace the cutting knife completely. Check and confirm whether the granular water leaks internally, whether the filter and cooler of the granular water tank are blocked. If they are blocked, they should be cleaned manually; check whether the inlet and outlet pressures of the granular water pump are normal. If not, check the valves on the granular water pump and the pump pipeline. Check whether the alignment between the cutter shaft and the underwater pelletizing machine is out of tolerance, whether the bearing assembly of the cutter shaft is damaged, and whether the cutter rotor is out of balance. During operation, check whether there is any gap in the contact between the four moving wheels of the pelletizing trolley and the guide rail. Control the volatile matter in the polypropylene powder and eliminate the vibration of the cutter and cutter shaft when it flows through the template hole. Reduce the temperature of the hot oil at the template of the underwater pelletizing machine, check the temperature distribution of the cylinder and the template, and whether the flow, pressure and temperature of the cooling water of the cylinder are normal; confirm the time setting for the "water, knife, material" to reach the template to prevent particles The water reaches the template prematurely and freezes the template hole. After closing the head of the underwater pelletizing machine, the feed volume should be quickly increased to the set load of the extruder.

What are the advantages of the underwater pelletizing machine?

The underwater pelletizing machine is a new model for pelletizing plastic materials that are elastic, easy to foam at low temperature, difficult to form, and have poor flow properties. The underwater pelletizing machine breaks through the traditional method of stranding pelletizing in the past. It overcomes the shortcomings of instability, uneven particles, easy agglomeration, and low output during the granulation of elastomer raw materials.

What are the applicable materials for the underwater pelletizing machine?

The underwater pelletizing machine is suitable for EVA, TPU and other materials with high viscosity and high viscosity of elastomers, and also suitable for conventional materials such as PP, PE, ABS, PA, and PC.

The widespread use of underwater pelletizing machines has continuously increased the demand for them in the market. Nanjing JlEYA, as a Chinese pioneer in underwater pelletizing machine, can ensure the machines’ quality and after-sales service.

The plastic extruder is a common plastic machinery equipment, in the process of the daily operation of the extruder, the extruder will have a variety of failures, affecting the normal production of plastic machinery, the following we will analyze the extruder failure.



Here is the content list:

• Unstable host current

• The main motor can not start

• The head is not discharged smoothly or blocked

• The main electric starting current is too high

• The main motor makes an abnormal sound



Unstable host current

1. Production reasons.

(1) Uneven feeding.

(2) The main motor bearing of the plastic extruder is damaged or poorly lubricated.

(3) A section of the heater is out of order and does not heat up.

(4) The screw adjustment pad is not correct, or the phase is not correct, and the component interferes.

2. Treatment methods.

(1) Check the feeder, troubleshooting.

(2) Overhaul the main motor of the plastic extruder, replace the bearings if necessary.

(3) Check whether each heater is working properly, replace the heater if necessary.

(4) Check the adjustment pad, pull out the screw to check whether there is interference with the screw.



The main motor can not start

1. Causes.

(1) There is a mistake in the start-up procedure of the plastic extruder.

(2) The main motor thread has a problem, whether the fuse is burned ring.

(3) The main motor-related chain device to function

2. Treatment methods.

(1) Check the program, reboot the machine in the correct boot sequence.

(2) Check the main motor circuit.

(3) Check whether the lube oil pump of the plastic extruder is started and check the status of the chain device associated with the main motor. The oil pump is not on and the motor cannot be turned on.

(4) The inverter induction power has not been discharged. Turn off the main power and wait for 5 minutes before starting again.

(5) Check whether the emergency button is reset.



The head is not discharged smoothly or blocked

1. Causes.

(1) A section of the heater does not work, and the material is not plasticized well.

(2) The operating temperature setting is low, or the molecular weight distribution of plastic is wide and unstable.

(3) There may be foreign substances that do not melt easily.

2. Treatment methods.

(1) Check the heater of the plastic extruder and replace it if necessary.

(2) Verify the set temperature of each section, and if necessary, consult with the technician to increase the temperature setting.

(3) Clean and check the extrusion system and the head.



The main electric starting current is too high

1. Causes.

(1) Insufficient heating time and high torque.

(2) A section of the heater does not work.

2. Treatment methods.

(1) Apply hand pan machine when starting, if not easy, extend the heating time or check whether each section heater is working properly.



The main motor makes an abnormal sound

1. Produced by.

(1) The main motor bearing of the plastic extruder is damaged.

(2) The main motor silicon controlled rectifier line in silicon controlled damage.

2. Treatment methods.

(1) Replace the main motor bearings.

(2) Check the silicon-controlled rectifier circuit, if necessary, replace the silicon-controlled components.



Our company's website is https://www.njjyextrusion.com/. If you still have questions, you can contact us on the official website.



In plastic extrusion molding equipment, the plastic extruder is usually called the main machine, while its subsequent equipment plastic extrusion molding machine is called the auxiliary machine. Plastic extruders can produce a variety of plastic products. Therefore, the plastic extrusion molding machine is one of the widely used machines in the plastics processing industry, both now and in the future. So what are the characteristics of plastic extruders? The following is a detailed introduction.



Here is the content list:

• Modularity and specialization

• High efficiency and multi-functionalization

• Enlargement and precision

• Intelligent and networked



Modularity and specialization

The modular production of plastic extruders can adapt to the special requirements of different users, shorten the research and development cycle of new products, and strive for a larger market share; while specialized production can arrange the production of each system module component of extrusion molding equipment at a fixed point or even for global procurement, which is very beneficial to ensure the quality of the whole period, reduce costs and accelerate the capital turnover.



High efficiency and multi-functionalization

The high efficiency of plastic extruders is mainly reflected in the high output, low energy consumption, and low manufacturing cost. In terms of function, the screw plastic extruder has been used not only for extrusion molding and mixing processing of polymer materials but its use has been broadened to food, feed, electrode, explosives, building materials, packaging, pulp, ceramics, and other fields.



Enlargement and precision

Achieving the large-scale plastic extruder can reduce the production cost, which is a more obvious advantage in the large twin-screw plastic pelletizing set, film blowing set, pipe extrusion set, etc. National key construction services required for major technical equipment, large-scale ethylene project supporting one of the three key equipment of large extrusion pelletizing unit long-term dependence on imports, so we must accelerate the localization process to meet the development needs of the petrochemical industry.



Intelligent and networked

Plastic extruders in developed countries have generally used modern electronic and computer control technology, the entire extrusion process parameters such as melt pressure and temperature, the temperature of each section of the body, the main screw and feeding screw speed, feeding volume, the ratio of various raw materials, motor current and voltage and other parameters for online detection, and the use of microcomputer closed-loop control. This is extremely beneficial to ensure the stability of process conditions and improve the precision of products.



If you need to buy a plastic extruder, you can consider our cost-effective products. Nanjing JlEYA is the leading manufacturer extruder manufacturer specializing in a twin-screw extruder, mini twin screw extruder, plastic extruder, and parallel twin-screw extruder in China, which is widely used in compounding, modification, polymerization, devolatilization, reaction, recycling, etc. After 17 years of development, now we have a 20,000 square meters workshop with annual sales of over 300+ sets, export over 60 countries.



JIEYA has the most experienced technical core team, with extensive experience in system integration of the development manufacturing, materials processing, application technology, and other fields.



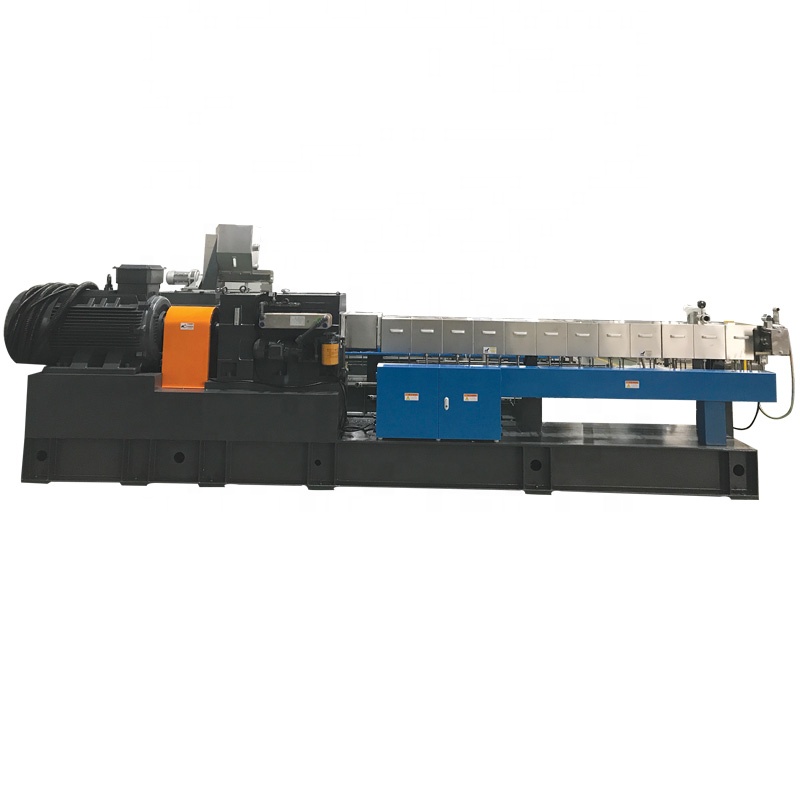

Nanjing Jieya is a professional manufacturer of twin screw compounding extruders since 2004. Our extruders series include SHJ series, HT series, JY series, SJ series, etc. Today we will tell you the differences between SHJ series twin screw extruders and HT series high torque twin screw extruders from three main points below:

1. Torque grade

The torque rating grade of our SHJ series twin screw extruder is T/A3≤8 while HT series is 9≤T/A3≤13.5. Our HT series adopt high torque gear box, which is suitable for customers that pursuit high efficiency machines.

2. Power transmission

SHJ series use clutch for power transmission while HT series use torque protector, for example, R+W brand, Bibby brand, etc.

3. Output

The output of HT series twin screw extruder is much higher than SHJ series.

So HT series can further improve the performance of extruders.But surely, price is higher than SHJ series.
