PVC compounding extruder is divided into two types of hard and soft RPVC pipes, RPVC pipes are chemically resistant and insulating, mainly transporting various fluids and used as wire sleeves, etc. SPVC pipes are manufactured by extruding PVC resin with a large amount of plasticizer and a certain amount of stabilizer and other additives after granulation. The following is a detailed description of the equipment functions of the PVC compounding extruder.
Here is the content list:
High Speed Mixer High-Speed Mixing
Accurate matching of feeding device
Water tank for pipe forming
Traction machine frequency conversion speed control
Automatic cutting
Unloading the material from the turning frame
Raw material intermixture is to feature PVC stabilizer, softener, inhibitor, and different auxiliary materials to the high-speed mixer in proportion and sequence to the method.
The PVC compounding extruder part is equipped with a quantitative feeding device to match the extrusion volume with the feeding volume to ensure stable extrusion of products. Due to the characteristics of the conical screw, the feeding section has a larger diameter, and the heat transfer area and sheer speed of the material are larger, which is contributive to the plasticization of the fabric and also the little diameter of the screw within the metering section reduces the warmth transfer space and also the sheer speed of the soften so that the melt can be extruded at a lower temperature. When the screw rotates in the barrel, the PVC mixture is plasticized and pushed to the head to achieve compaction, melting, mixing, and homogenization and to achieve the purpose of exhaust and dehydration. The feeding device and screw drive device adopt frequency conversion to realize synchronous speed regulation.
PVC compounding extruder dies head part of the compacted, molten, blended, and homogenized PVC has subsequent materials through the screw to the die head extrusion die head is the key component of pipe forming.
The vacuum shaping water tank of PVC compounding extruderis used for pipe shaping and cooling, the vacuum shaping water tank is equipped with vacuum system for shaping and cooling and water circulation system stainless steel box body circulating water spray cooling, the vacuum shaping water tank is equipped with front and rear moving device and left and right, high and low adjustment manual device.
The traction machine is used to continuously and automatically lead the cooled and hardened pipe from the head with frequency control.
The cutting machine is controlled by the travel switch according to the required length and then automatically cut and delay the turning frame to implement the flow of production, the cutting machine with a fixed-length work switch signal as a command to complete the whole process of cutting in the cutting process and pipe running synchronization cutting process is completed by electric and pneumatic drive, the cutting machine is equipped with a dust suction device to suck out the cutting debris and recycling.
Unloading the material from the turning frame
The material turning action is controlled by the cylinder through the air circuit to achieve the material turning frame is equipped with a limit device when the cutting saw cut off the pipe after the pipe continues to transport after a delay, the cylinder into the work of turning action to achieve the purpose of unloading. After unloading, it will be automatically reset after a delay of several seconds to wait for the next cycle.
Nanjing JlEYA is the leading manufacturer extruder manufacturer specializing in twin screw extruder, mini twin screw extruder, plastic extruder and parallel twin screw extruder in China, which is widely used in compounding, modification, polymerization, devolatilization, reaction, recycling, etc. After 17 years development, now we have 20,000 square meters workshop with annual sales over 300+ sets, export over 60 countries.
JIEYA has the most experienced technical core team, with extensive experience in system integration of the development manufacturing, materials processing, application technology andother fields.
The plastic extruder is a common plastic machinery equipment, in the process of the daily operation of the extruder, the extruder will have a variety of failures, affecting the normal production of plastic machinery, the following we will analyze the extruder failure.
Here is the content list:
Unstable host current
The main motor can not start
The head is not discharged smoothly or blocked
The main electric starting current is too high
The main motor makes an abnormal sound
1. Production reasons.
(1) Uneven feeding.
(2) The main motor bearing of the plastic extruder is damaged or poorly lubricated.
(3) A section of the heater is out of order and does not heat up.
(4) The screw adjustment pad is not correct, or the phase is not correct, and the component interferes.
2. Treatment methods.
(1) Check the feeder, troubleshooting.
(2) Overhaul the main motor of the plastic extruder, replace the bearings if necessary.
(3) Check whether each heater is working properly, replace the heater if necessary.
(4) Check the adjustment pad, pull out the screw to check whether there is interference with the screw.
1. Causes.
(1) There is a mistake in the start-up procedure of the plastic extruder.
(2) The main motor thread has a problem, whether the fuse is burned ring.
(3) The main motor-related chain device to function
2. Treatment methods.
(1) Check the program, reboot the machine in the correct boot sequence.
(2) Check the main motor circuit.
(3) Check whether the lube oil pump of the plastic extruder is started and check the status of the chain device associated with the main motor. The oil pump is not on and the motor cannot be turned on.
(4) The inverter induction power has not been discharged. Turn off the main power and wait for 5 minutes before starting again.
(5) Check whether the emergency button is reset.
1. Causes.
(1) A section of the heater does not work, and the material is not plasticized well.
(2) The operating temperature setting is low, or the molecular weight distribution of plastic is wide and unstable.
(3) There may be foreign substances that do not melt easily.
2. Treatment methods.
(1) Check the heater of the plastic extruder and replace it if necessary.
(2) Verify the set temperature of each section, and if necessary, consult with the technician to increase the temperature setting.
(3) Clean and check the extrusion system and the head.
1. Causes.
(1) Insufficient heating time and high torque.
(2) A section of the heater does not work.
2. Treatment methods.
(1) Apply hand pan machine when starting, if not easy, extend the heating time or check whether each section heater is working properly.
1. Produced by.
(1) The main motor bearing of the plastic extruder is damaged.
(2) The main motor silicon controlled rectifier line in silicon controlled damage.
2. Treatment methods.
(1) Replace the main motor bearings.
(2) Check the silicon-controlled rectifier circuit, if necessary, replace the silicon-controlled components.
Our company's website is https://www.njjyextrusion.com/. If you still have questions, you can contact us on the official website.

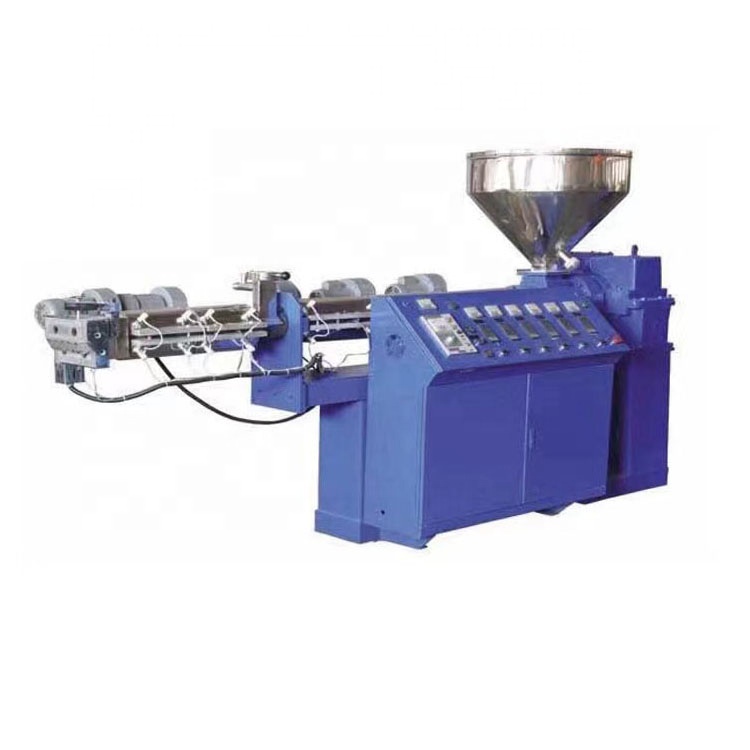

The single screw extruder is mainly composed of 3 parts: extrusion system, transmission system, and heating and cooling system. The following is a detailed introduction to the basic structure of the single screw extruder.
Here is the content list:
Extrusion system
Transmission system
Heating and cooling system
The main role of the extrusion system of the single-screw extruder is to melt and plasticize the polymer material to form a uniform melt, to realize the transformation from the glassy state to the viscous flow state. And in this process to establish a certain pressure, by the screw continuous extrusion delivery to the head die. Thus, the extrusion system plays an important role in the molding quality and output of the extrusion process.
The extrusion system mainly includes the feeding device, screw, and barrel, which is the most critical part of the extruder, of which the screw is the heart of the extruder, the material through the rotation of the screw in order to move in the barrel and get pressurized and part of the heat.
The drive system of a single screw extruder is usually composed of a motor, reducer, and bearing, whose role is to drive the screw and supply the torque and torque required by the screw in the extrusion process. During the extrusion process, the screw speed is required to be stable and does not change with the change of screw load to ensure the uniform quality of the product. However, in different situations, the screw is required to be able to achieve variable speed in order to achieve a machine that can adapt to the requirements of extruding different materials or products of different shapes. In most extruders, the change of screw speed is achieved by adjusting the motor speed. The drive system of the single-screw extruder is also equipped with a good lubrication system and a device for rapid braking.
The heating and cooling system of a single screw extruder consist of a heating device and cooling device, which are necessary for the extrusion process to be carried out smoothly. The heating and cooling devices must ensure that the polymer materials are melted and plasticized and the temperature conditions during the molding process meet the process requirements.
The cooling device is generally set up in the extruder barrel, screw and hopper bottom, and other parts. Barrel cooling can be water-cooled or air-cooled, air-cooled is generally used for small and medium-sized single-screw extruders; large single-screw extruders are mostly water-cooled or a combination of the two forms. The cooling device at the bottom of the hopper is mainly to strengthen the solid material conveying effect, to prevent the material particles from becoming sticky due to the heating, blocking the material mouth and thus affecting the feeding. Generally, for extruders with a screw diameter of 90mm or more and high-speed extruders, a cooling device must be installed at the bottom of the hopper.
Our company focuses on twin-screw extruders, micro twin-screw extruders, plastic extruders, parallel twin-screw extruders, and other kinds of research and development and manufacturing as the core of the isotropic rotary twin-screw compounding extruder. If you still want to know more, you can consult our company.
Nanjing Team sincerely invite you to attend The 15th China Chongqing Rubber, Plastics Industry Exhibition.
Our booth no.: S2544
Time: May 27-30, 2021
Address: Chongqing International Expo Center
Wish to meet you at there ;)
The difference between single screw extruder and twin screw extruder: one is a screw, the other is two screws. Both are driven by a motor. The power varies with different screw sizes. The power of 50 conical twin screw extruder is about 20kW, and 65 is about 37kW. The output is related to the material and the screw size. The output of 50 conical twin screw extruder is about 100-150kg/h, and 65 conical twin screw extruder is about 200-280kg/h. The output of a single screw is only half than twin screw extruder.
Extruders can be divided into single-screw, twin-screw and multi-screw extruders according to the number of screws. Today, the single-screw extruder is the most widely used and is suitable for extrusion processing of general materials. The twin-screw extruder has the characteristics of less heat generated by friction, relatively uniform shearing of the material, large conveying capacity of the screw, relatively stable extrusion volume, long residence of the material in the barrel, and uniform mixing.
The single-screw extruder occupies an important position both as a plasticizing and granulating machine or a molding and processing machine. In recent years, the single-screw extruder has made great progress. The large-scale single-screw extruder for granulation produced in Germany has a screw diameter of 700mm and an output of 36t/h.
The main sign of the development of single-screw extruder lies in the development of its key part, the screw. In recent years, people have carried out a lot of theoretical and experimental research on screws. There are nearly 100 types of screws. The common ones are separation type, shear type, barrier type, split type and wave type.
From the perspective of single-screw development, although the single-screw extruder has been relatively complete, with the continuous development of polymer materials and plastic products, new and special single-screw extruders with more characteristics will emerge. In general, single-screw extruders are developing in the direction of high speed, high efficiency and specialization.
The twin-screw extruder has good feeding characteristics, is suitable for powder processing, and has better mixing, exhaust, reaction and self-cleaning functions than single-screw extruders, and is characterized by processing plastics and blends with poor thermal stability. It shows its superiority even more.
The extrusion system of a single screw extruder includes a screw, a cylinder, a funnel, a head, and a nozzle. The plastic is plasticized by the extrusion system into a uniform melt and is continuous under the resulting pressure through the screw of the extruder head.
What is the relevant information about single screw extruders?
How to improve the product quality of the single screw extruder?
What role does the heating and cooling system play in the single screw extruder?
Each product type in the production line for single screw extruders has its operating characteristics. Only if you know their operating characteristics can you fully measure the efficiency of the machine.
Slug extruder's one of the guys. Record the operating points of single screw extruders and use single screw extruders correctly and sensibly.
The use of a single screw extruder includes several connections such as machine setup, adjustment, test run, operation, maintenance, and repair. Its use has the common characteristics of general machines, mainly in the drive engine and in the speed reduction device.
The working system of the single screw extruder, however, is the extrusion system, which has unique characteristics. When using the single screw extruder, pay particular attention to its properties.
1. About the extrusion product quality of the single screw extruder:
Injection extruders must conform to the raw material formula and process, the product size must correspond to the extrusion equipment and the raw materials must be sufficiently mixed and plasticized to ensure stable extrusion pressure and product quality.
2. Improve extrusion efficiency:
It is related to the selection of the single screw extruder, the screw structure, and the material properties, which are relative and must be considered comprehensively. Simple method, you can choose a larger extruder, the nozzle is opened into a nozzle and several forms.
The heating and cooling system of the inlet extruder consists of a heating device and a cooling device. It is a necessary condition for the smooth running of the extrusion process. The heater and cooling system shall ensure that the polymer material is melted and plasticized and that the temperature conditions during the molding process meet the process requirement.
The cooling system is generally installed in the cylinder, in the screw, and the bottom of the funnel of the inlet extruder. The cylinder cooling may be water-cooled or air-cooled. In general, small and medium extruder air cooling is used; Large series single screw extruders usually use water cooling or a combination of both. The main use of sludge cooling is a central water cooling system, the purpose of which is to increase the rate of solidification of the material, to stabilize the volume of discharges, and, at the same time, to improve product quality. The cooling system at the bottom of the funnel serves mainly to enhance the conveying effect of solids and to prevent the material particles from sticking due to the increase in temperature, blocking the material opening and impairing the supply. In general, in the case of extruders with screw diameters over 90 mm and fast-running screw extruders, a cooling device shall be installed at the bottom of the funnel.
Nanjing JlEYA has worked for many years to meet every customers’ need for single screw extruder. Just connect them.
The composition of the single screw extruder: mainly consists of servo motor, reduction box, screw cylinder, nozzle head, filter air, heating and cooling system, touch screen, and SPS control. It is the extrusion host to form.
What are the reasons why the main engine of the single screw extruder cannot be started and the solutions?
What are the reasons and solutions for the high inlet flow of the single screw extruder?
What is the design concept of the single screw extruder?
1. Reasons:
(1) The driving program of the single screw extruder is wrong.
(2) There is a problem with the main engine thread and whether the fuse is blown.
(3) The locking device for the single screw extruder and the main engine works.
2. Treatment:
(1) Check the program of the insert extruder and restart in the correct order.
(2) Check the main engine circuit.
(3) Check whether the lubricating oil pump has started and check the status of the locking device concerning the main engine. The oil pump cannot be turned on and the engine cannot be turned on.
(4) The inverter has not discharged the induction current, turn off the main power supply and wait five minutes before starting.
(5) Check if the emergency button of the single screw extruder has been reset.
1. Reasons: (1) The single screw extruder has an insufficient heating time and a large torque. (2) A certain section of the heating does not work.
2. Treatment method: (1) Use the handwheel when driving the single screw extruder. If it is not easy, extend the heating time or check that the heaters of the individual sections work properly.
The main engine makes an abnormal noise:
1. Reasons: (1) Main engine stock damaged. (2) A specific SCR in the SCR DC power supply of the main engine is damaged.
2. Treatment method: (1) Replace the main engine stock of the single screw extruder. (2) Check the thyristor alignment and replace the thyristor component if necessary.
1. High-speed and high-Yield extrusion based on high quality.
2. The design concept of low-temperature plasticization ensures the extrusion of high-quality products.
3. The two-stage overall design of the single screw extruder reinforces the plasticization function to ensure the adjustment of the high-performance extrusion.
4. Special barrier, comprehensive mixing design to ensure the mixing effect of materials.
5. High torque drop, extra-large pressure bearing.
6. Gears and shafts are made of high-strength alloy steel, cooled, and chipped.
7. High hardness, high finish, extremely quiet.
8. PLC-intelligent control can realize the connection between main and auxiliary machines.
9. The easy-to-monitor human-machine interface makes it easy to understand the processing and machine status.
10. The control method (temperature device) can be changed if necessary.
11. The material is 38CrMoAL/A nitric treatment, wear-resistant.
12 Strict temperature control accuracy, combined with air cooling and water cooling.
13. The single screw extruder has a unique inlet design and complete water cooling.
14. An single screw extruder with a grooved surface of the lower shell has an improved feed function that guarantees a high speed and a high yield of extrusion.
The single screw extruder is increasingly used in industrial production.Nanjing JlEYA has committed itself to offering the best-suited single screw extruders at a reasonable price, and all that is necessary to meet the needs of the customer.
In plastic extrusion molding equipment, the plastic extruder is usually called the main machine, while its subsequent equipment plastic extrusion molding machine is called the auxiliary machine. Plastic extruders can produce a variety of plastic products. Therefore, the plastic extrusion molding machine is one of the widely used machines in the plastics processing industry, both now and in the future. So what are the characteristics of plastic extruders? The following is a detailed introduction.
Here is the content list:
Modularity and specialization
High efficiency and multi-functionalization
Enlargement and precision
Intelligent and networked
The modular production of plastic extruders can adapt to the special requirements of different users, shorten the research and development cycle of new products, and strive for a larger market share; while specialized production can arrange the production of each system module component of extrusion molding equipment at a fixed point or even for global procurement, which is very beneficial to ensure the quality of the whole period, reduce costs and accelerate the capital turnover.
The high efficiency of plastic extruders is mainly reflected in the high output, low energy consumption, and low manufacturing cost. In terms of function, the screw plastic extruder has been used not only for extrusion molding and mixing processing of polymer materials but its use has been broadened to food, feed, electrode, explosives, building materials, packaging, pulp, ceramics, and other fields.
Achieving the large-scale plastic extruder can reduce the production cost, which is a more obvious advantage in the large twin-screw plastic pelletizing set, film blowing set, pipe extrusion set, etc. National key construction services required for major technical equipment, large-scale ethylene project supporting one of the three key equipment of large extrusion pelletizing unit long-term dependence on imports, so we must accelerate the localization process to meet the development needs of the petrochemical industry.
Plastic extruders in developed countries have generally used modern electronic and computer control technology, the entire extrusion process parameters such as melt pressure and temperature, the temperature of each section of the body, the main screw and feeding screw speed, feeding volume, the ratio of various raw materials, motor current and voltage and other parameters for online detection, and the use of microcomputer closed-loop control. This is extremely beneficial to ensure the stability of process conditions and improve the precision of products.
If you need to buy a plastic extruder, you can consider our cost-effective products. Nanjing JlEYA is the leading manufacturer extruder manufacturer specializing in a twin-screw extruder, mini twin screw extruder, plastic extruder, and parallel twin-screw extruder in China, which is widely used in compounding, modification, polymerization, devolatilization, reaction, recycling, etc. After 17 years of development, now we have a 20,000 square meters workshop with annual sales of over 300+ sets, export over 60 countries.
